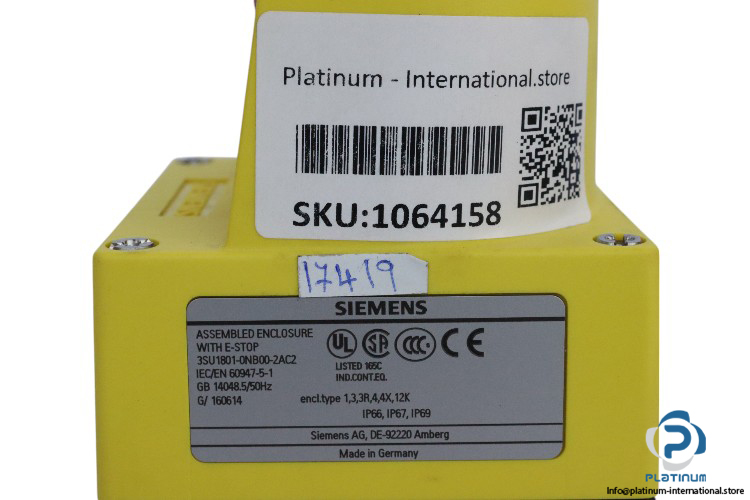

Siemens 3SU1801-0NB00-2AC2 Enclosure

Siemens Enclosure 3SU1801-0NB00-2AC2

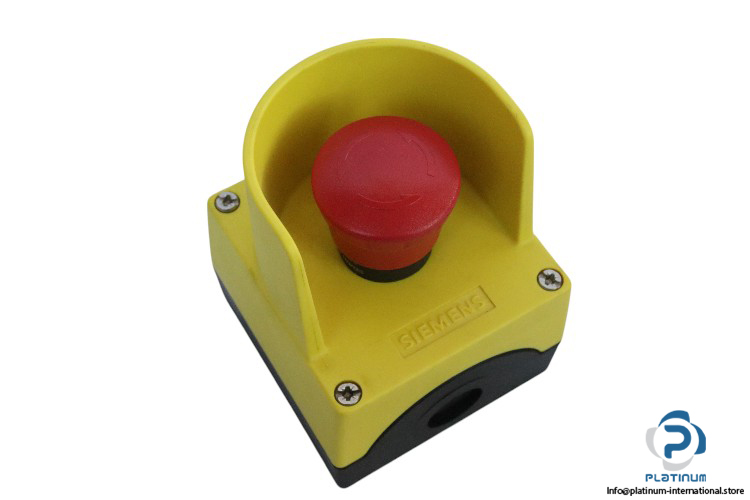

The Siemens 3SU1801-0NB00-2AC2 Enclosure is designed for industrial environments, offering superior protection and durability. With a square front and a yellow plastic top, this enclosure features a protective collar for added safety. Rated for up to IP69K protection, it is ideal for demanding conditions and operates at voltages from 5 to 500 V AC/DC.

Specifications:

• Design of the Housing: With protective collar
• Shape of the Enclosure Front: Square
• Material of the Enclosure: Plastic
• Color of the Enclosure Top Part: Yellow
• Number of Contact Modules: 2
• Protection Class: IP66, IP67, IP69 (IP69K)
• Operating Voltage: 5 … 500 V AC/DC
• Frequency: 50/60 Hz
• Contacts: 1 NC, 1 NC
• Type of Electrical Connection: Screw-type terminal
• Cable Routing: Above and below, both 1 x M20
• Tightening Torque:
  • Screws in the Bracket: 1 … 1.2 N·m
  • Fixing Screws in the Enclosure Cover: 1.5 … 1.7 N·m
  • Screw-type Terminals: 0.8 … 0.9 N·m
• Ambient Temperature: -25 … +70 °C
• Dimensions (H X W X D): 85 x 85 x 112.5 mm
