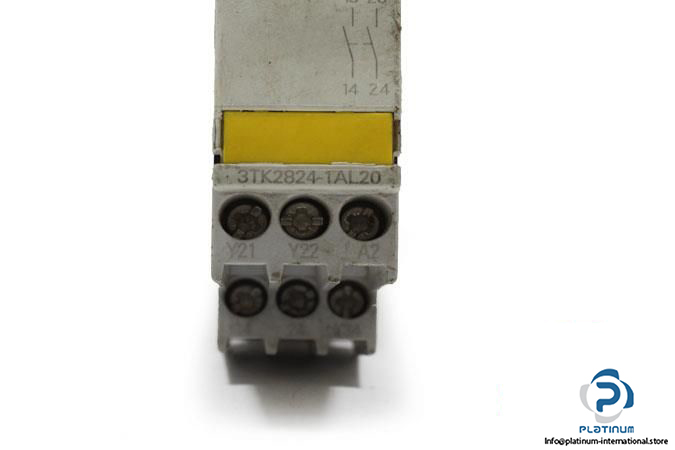

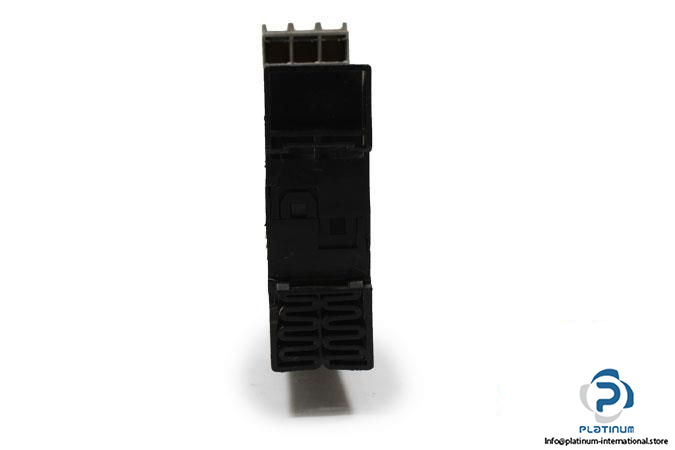

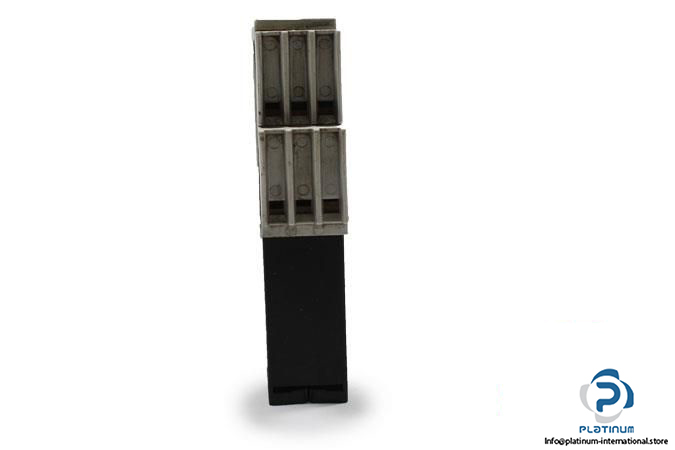

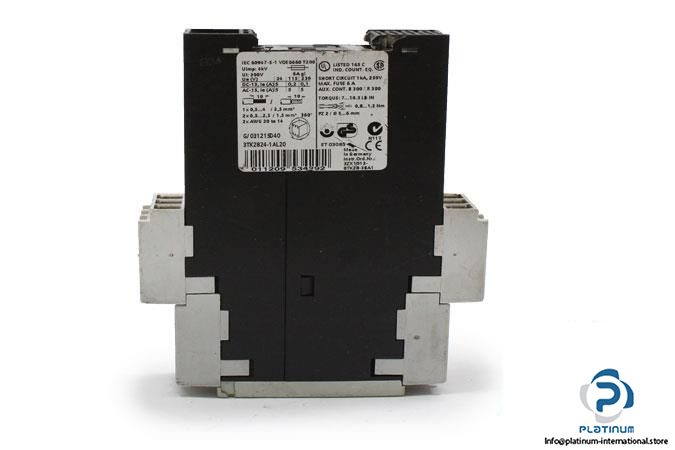

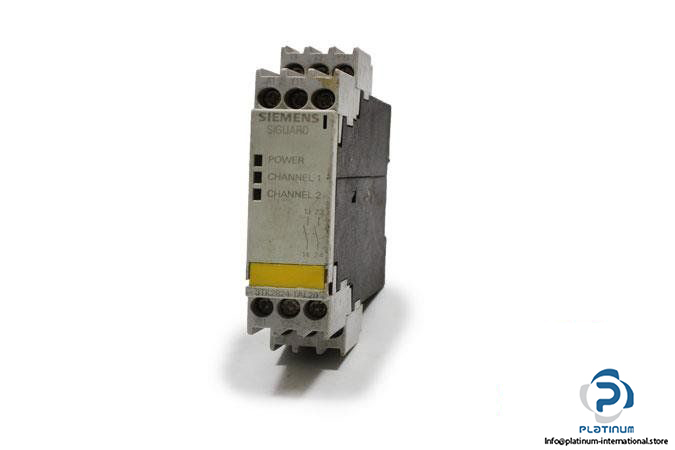

Siemens 3TK2824-1AL20 Sirius Safety Relay With Relay Enabling Circuit
SIEMENS SIRIUS 3TK2824-1AL20 ist ein Sicherheitsrelais Typ A, das für Not-Aus- und Sicherheitstüranwendungen entwickelt wurde. Es verfügt über 2 N/O-Ausgänge, eine Steuer-Spannung von 230 VAC und finger-sichere Schraubklemmen.
SIEMENS SIRIUS 3TK2824-1AL20 SAFETY RELAY
The SIEMENS SIRIUS 3TK2824-1AL20 safety relay is engineered for dependable performance in emergency-stop and safety door systems. Designed to meet rigorous industrial safety standards, it ensures high reliability in control circuits and secure machine shutdown procedures.
Manufacturer: SIEMENS
Brand: SIRIUS
Type: Safety Relay with Relay Enabling Circuit
Model: 3TK2824-1AL20

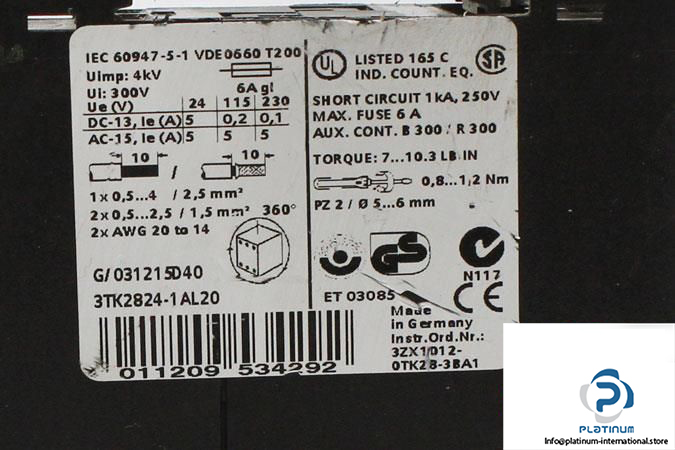

INTT ORD NO: 3ZX1012-0TK28-3BA1
REF NO: G/031215D40
SN: 011209 534292
| Control Supply Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Air Pressure | 90 / 106 kPa |
| Cable Length | 1000 m |
| Safety Device Type | Type A |
| Output Contact | 2 N/O |
| Resistance to Direct Current | 30 „¦ |
| Design | For EMERGENCY-STOP and safety doors |
| Mounting | Screw and snap-on mounting |
| Electrical Connection | Screw-type terminals |
| Shock Protection | Finger-safe |
| Ambient Temperature | -25 / +60 °C |
| Dimensions | 120 x 22.5 x 120 mm |
| Protection Class (Enclosure/Terminal) | IP40 / IP20 |
