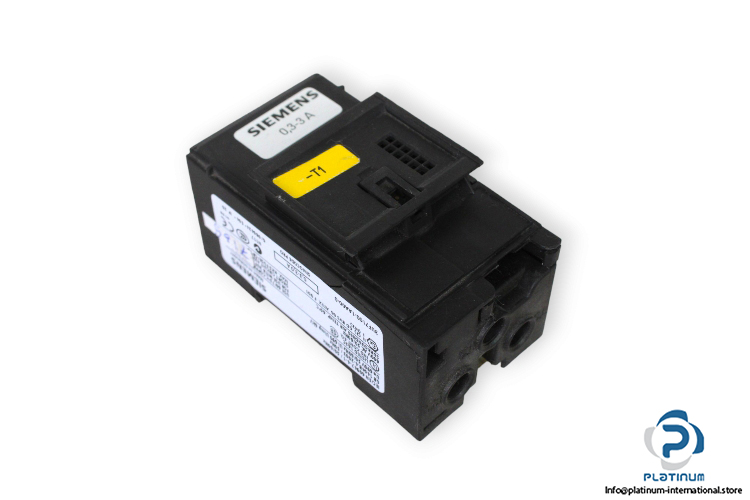

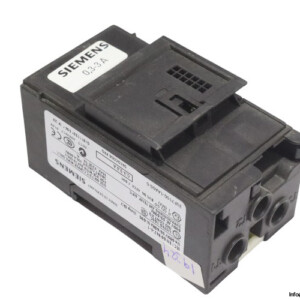

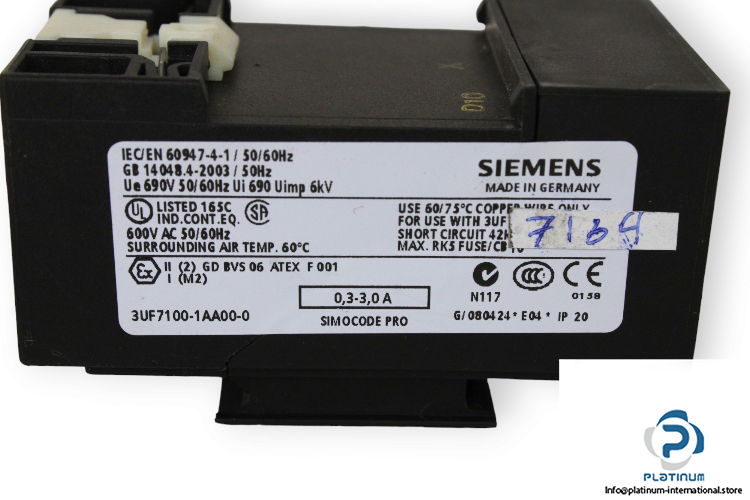

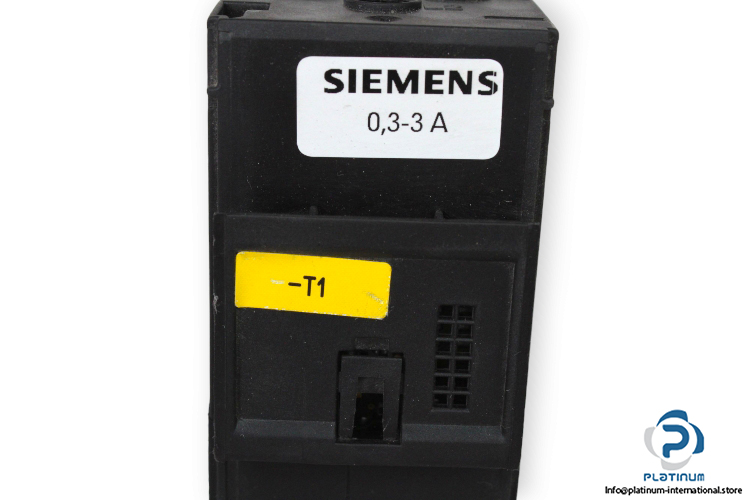

Siemens 3UF7100-1AA00-0 Current Measuring Module

Name: SIEMENS 3UF7100-1AA00-0 CURRENT MEASURING MODULE
SKU: 1018669
Availability: LimitedAvailability

siemens-3UF7100-1AA00-0-current-measuring-module-(new)

siemens-3UF7100-1AA00-0-current-measuring-module-(new)-1

siemens-3UF7100-1AA00-0-current-measuring-module-(new)-2

Neu

Auf Lager7 EinheitenVersandbereit

Strommessmodul SIEMENS SIRIUS 3UF7100-1AA00-0 bietet präzise Überwachung für AC-Schaltungen bis zu 690V. Mit IP20-Schutz und EMC-Spannungsstoßfestigkeit unterstützt es industrielle Leistungsanforderungen.

Hersteller

SIEMENS

SKU

1018669

Kategorie

Current Transformers

Zustand

Neu

alarm Board Building C5M5X-V04S Circuit Control Fire Honeywell MCX-55M Notifier Panel PCB Safety System

Gebraucht Auf Lager

Dieses Produkt ist auch als gebraucht erhältlich

Gebrauchte Version anzeigen →

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

SIEMENS SIRIUS 3UF7100-1AA00-0 Current Measuring Module

The SIEMENS SIRIUS 3UF7100-1AA00-0 is a precision-engineered current measuring module designed for monitoring and protecting electrical installations. With support for wide operating voltage and frequency ranges, it ensures accurate current measurement and compliance with industrial EMC standards.

Manufacturer: SIEMENS

Brand: SIRIUS

Type: Current Measuring Module

Model: 3UF7100-1AA00-0

Technical Data:

Number of Poles / Main Current Circuit: 3
Operating Frequency (Rated): 50 / 60 Hz
Operating Voltage (Rated at 50/60 Hz): 110 to 690 V AC
Controlled Supply Voltage Type: AC
Protection Class: IP20
Parasitic Coupling BURST: 2 kV (Conductor-bound)
SURGE Conductor-Earth (IEC 61000-4-5): 2 kV
SURGE Conductor-Conductor (IEC 61000-4-5): 1 kV
Dimensions: 45 x 84 x 45 mm
