Electrical Components Current Transformers

Siemens 3UF7102-1AA00-0 Current Measuring Module

Name: SIEMENS 3UF7102-1AA00-0 CURRENT MEASURING MODULE
Brand: SIEMENS
SKU: 999839
Availability: LimitedAvailability

siemens-3uf7102-1aa00-0-current-measuring-module-1

Gebraucht

Auf Lager1 EinheitVersandbereit

Strommessmodul Siemens 3UF7 102-1AA00-0 ist ein 3-poliges Strommessmodul mit einstellbarem Ansprechstrom von 10 bis 100 A, 600 V AC Versorgungs Spannung und IP20 Schutz für industrielle Überwachungssysteme.

Hersteller

SIEMENS

SKU

999839

Kategorie

Current Transformers

Zustand

Gebraucht

102-1AA00-0 3 3UF7 600V AC Adjustable Current Device Industrial IP20 Measuring Module monitoring mount Pole Protection screw Siemens

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

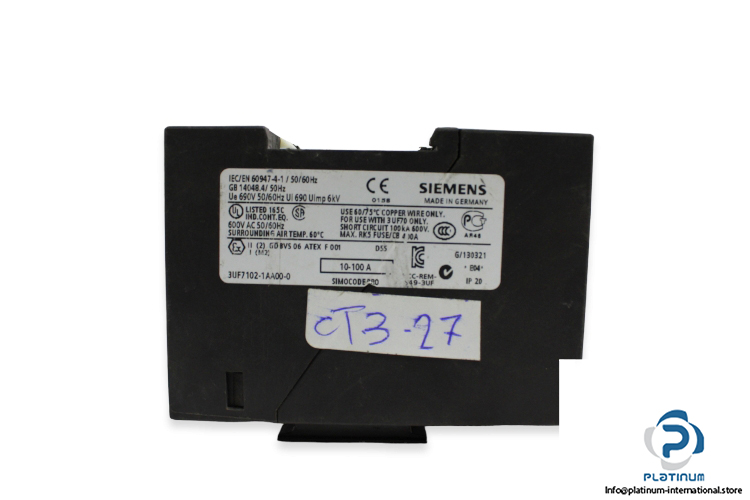

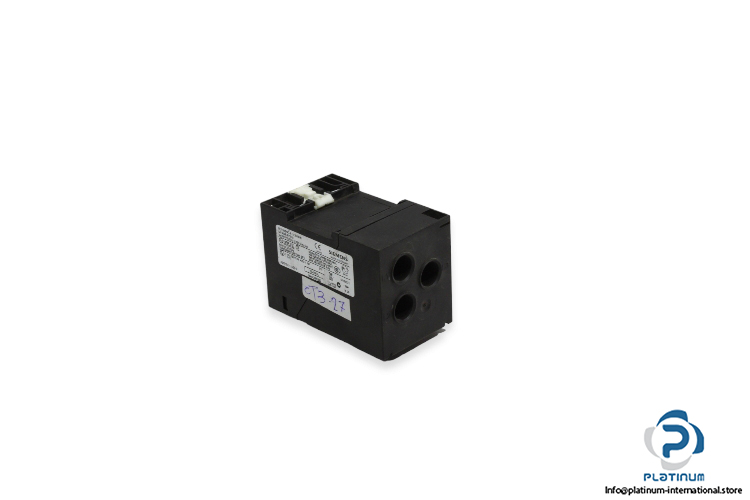

SIEMENS 3UF7 102-1AA00-0 CURRENT MEASURING MODULE

The Siemens 3UF7 102-1AA00-0 is a robust current measuring module designed for reliable protection and monitoring in low-voltage industrial systems. This 3-pole device offers accurate adjustable current response with high electrical endurance, compact design, and versatile mounting options.

Manufacturer: Siemens

Type: Current Measuring Module

Model: 3UF7 102-1AA00-0

Supply Voltage	600 V AC
Adjustable Response Current	10 A (Initial) “ 100 A (Final)
Operating Voltage	110 “ 690 V AC
Impulse Voltage	6,000 V
Number of Poles	3
Mounting Type	Screw and Snap-On
Connection Design	Straight-Through Transformers
Frequency	50 “ 60 Hz
Protection Degree	IP20
Operating Temperature	-25 / +60 °C
Dimensions	55 x 94 x 72 mm
