Siemens 6ES5 101-8UA23 Programmable Controller
100,00$
Programmierbare Steuerung Siemens SIMATIC S5-101U programmierbare Steuerung ist eine kompakte Steuereinheit mit 220/240V AC Eingang, 16 Eingängen, 8 Ausgängen und Schraubklemmen, ideal zum Ersatz von bis zu 10 Relais in der Niedrigbereichs-Automatisierung.

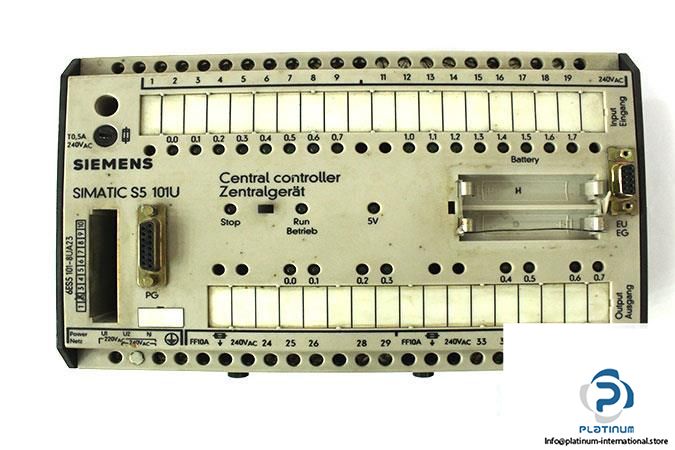

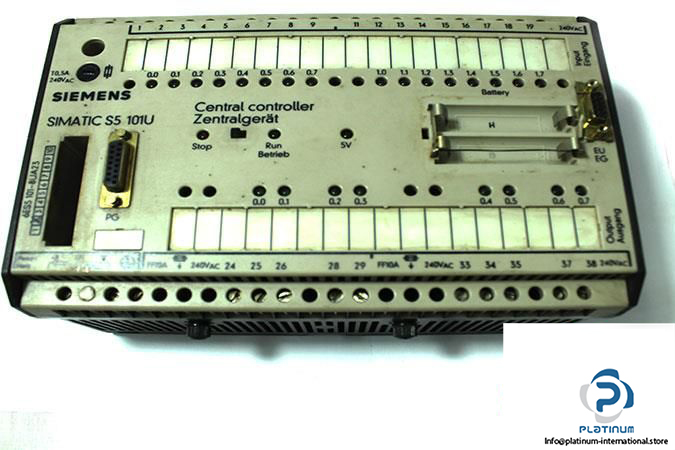

SIEMENS SIMATIC S5-101U PROGRAMMABLE CONTROLLER
The Siemens S5-101U is a cost-effective programmable controller from the SIMATIC S5 family, ideal for low-performance automation tasks. Designed to replace up to 10 relays or contactors, it serves as an efficient solution for small control applications with reliable input/output operations.
Manufacturer: SIEMENS
Family: SIMATIC S5
Type: Programmable Controller
Model: S5-101U

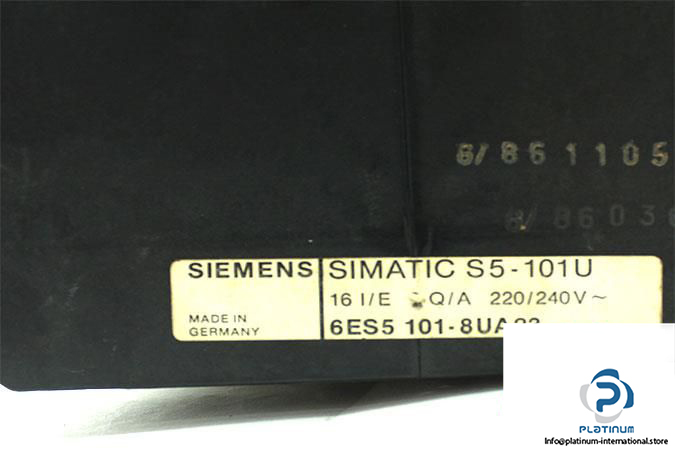

MRN: 6ES5101-8UA23
Uses: Programmable controller PC of SIMATIC S5 system for automation tasks in the lower performance range as an economical replacement for up to 10 relays or contactors.
| Voltage | 220/240 V AC |
| Rated Input Voltage for œ0 Signal | 0 / 40 V AC |
| Rated Input Voltage for œ1 Signal | 159 / 264 V AC |
| Number of Inputs | 16 (floating, groups of 8 connected) |
| Nominal Input Current for œ1 Signal | 20 mA |
| Number of Outputs | 8 (groups of four connected to common) |
| Switching Frequency | 10 Hz general, 2 Hz inductive load, 8 Hz lamp load |
| Type Connection | Screw-type terminals |
