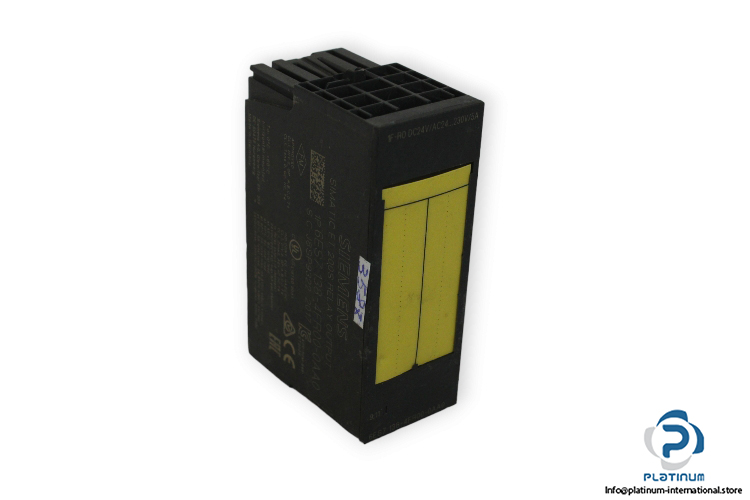

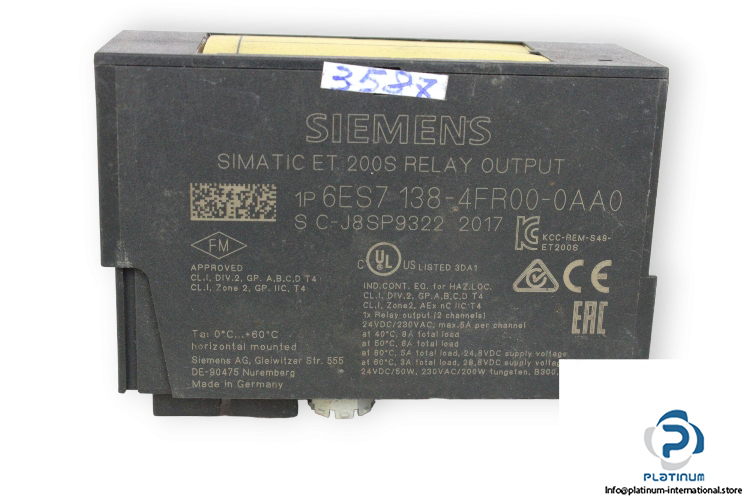

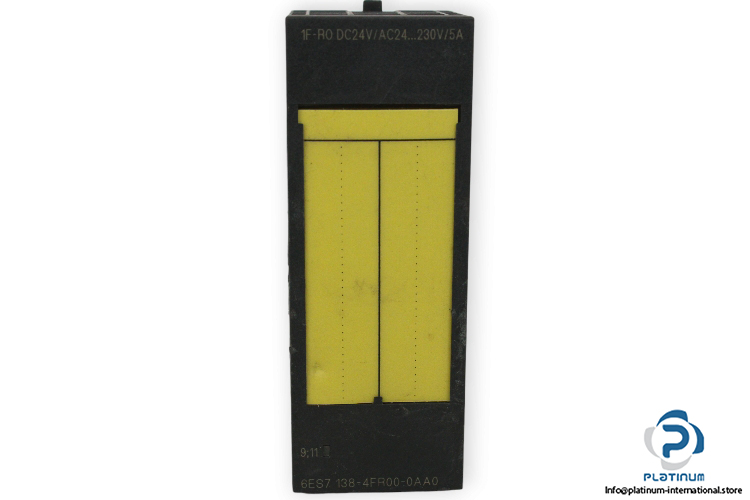

Siemens 6ES7 138-4FR00-0AA0 Electronics Module

Manufacturer: SIEMENS
Type: Electronics module
Model: 6ES7138-4FR00-0AA0

Rated value: 24 V DC
Input current
from load voltage L+ (without load): max. 100 mA; from control voltage
from backplane bus 3.3 V DC: max. 10 mA
Power loss, typ: 2.1 W
 Address space per module, max.: 1 byte
with packing: 2 bit
Digital outputs:
Type of digital output: Relays
Number of digital outputs: 1
Output current
for signal “1” rated value: 5 A
for signal “1” minimum load current: 5 mA
Current per module, max.: 8 A
Dimensions
Width: 30 mm
Height: 81 mm
Depth: 52 mm
