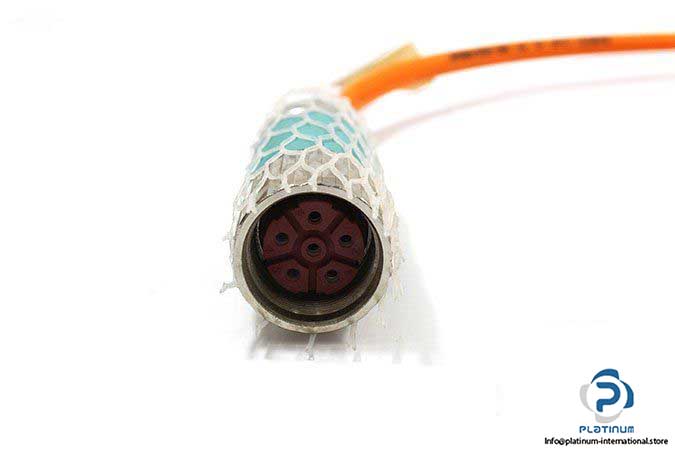

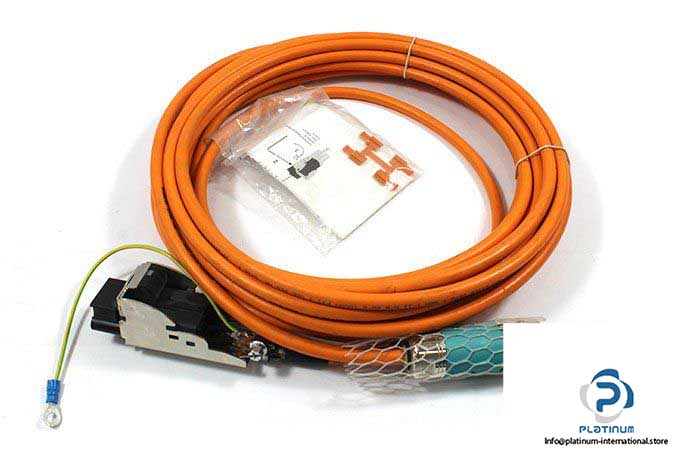

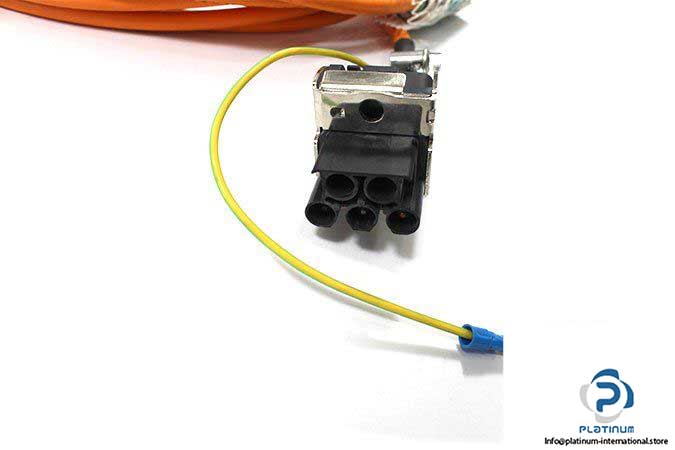

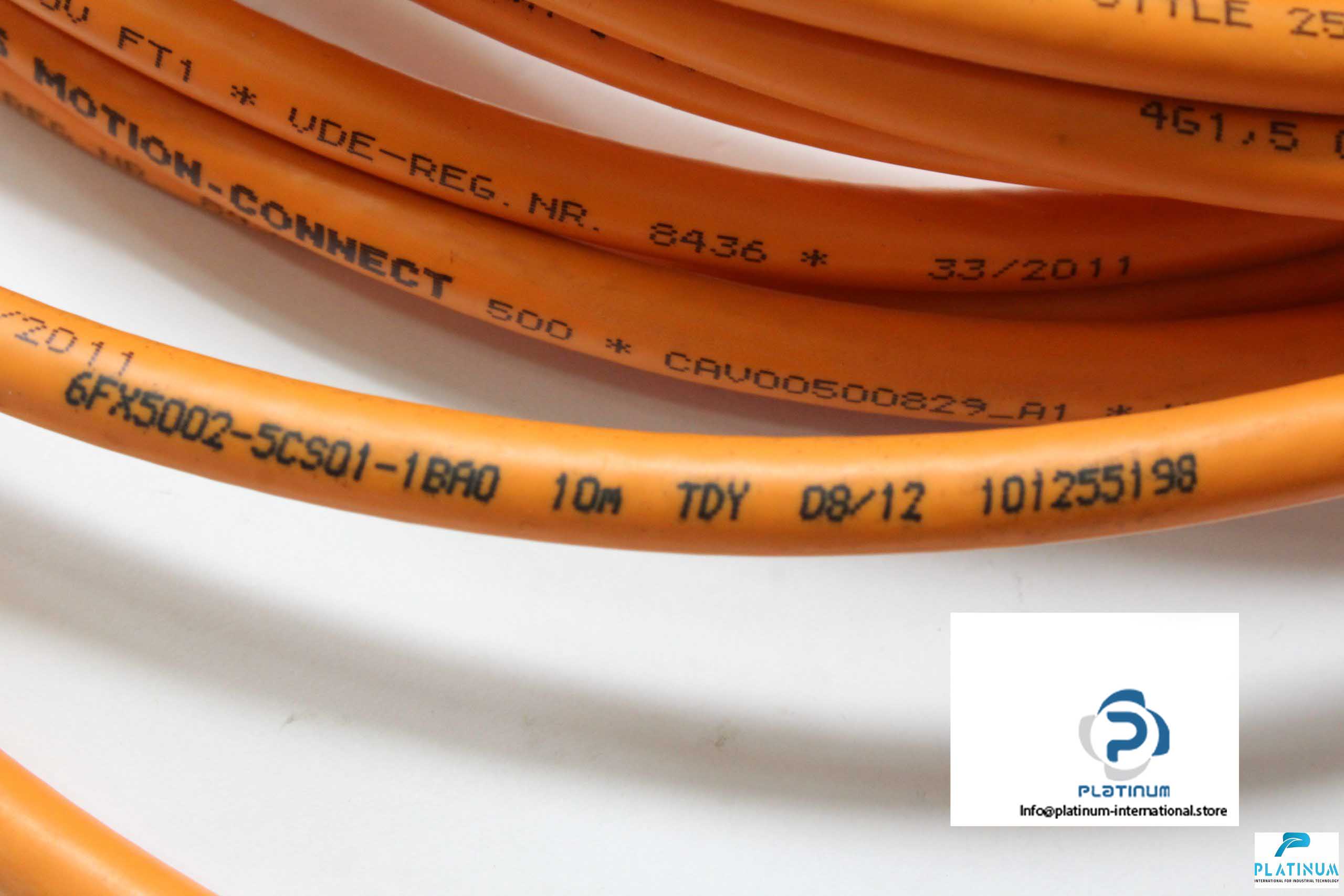

Siemens 6FX5002-5CS01-1BA0 Motion Connect Cable
315,00$
STROMKABEL SIEMENS 6FX5002-5CS01-1BA0 MotionConnect 500 Stromkabel, 10 m Länge, vormontiert mit Vollgewinde- und Schnellsteckern. Entwickelt für SIMOTICS S-1FK7 Motoren mit 600/1000 V Bewertung und getestet für Anwendungen mit niedriger mechanischer Belastung.
SIEMENS 6FX5002-5CS01-1BA0 POWER CABLE
The SIEMENS 6FX5002-5CS01-1BA0 Power Cable is a high-quality, pre-assembled solution engineered for compatibility with SIMOTICS S-1FK7 motors. Part of the MotionConnect 500 series, this cable is ideal for applications requiring fixed installation with low mechanical loading. It comes with factory-fitted connectors for ease of use and long-lasting reliability in motion control systems.
Manufacturer: SIEMENS
Type: POWER CABLE
Article No.: 6FX5002-5CS01-1BA0
REF NO: 101255198
Pre-Assembled With:
SIEMENS A5E02096937: Full Thread Connector
SIEMENS 36085: Speed-Connect Connector
Used With: SIMOTICS S-1FK7 motor
| Series | MotionConnect 500 |
| Features | Cost-effective, fixed installation, low mechanical loading |
| Travel Distance | Tested up to 5 m (16.4 ft) |
| Cable Length | 10 m |
| Max. Cable Outer Diameter | 8.4 mm |
| Max. Traversing Velocity | 30 m/min |
| Max. Acceleration | 2 m/s² |
| Rated Voltage | 600 V / 1000 V |
| Max. Tensile Load (Moving) | 20 N/mm² |
| Operating Temperature (Fixed) | -20 / 80 °C |
