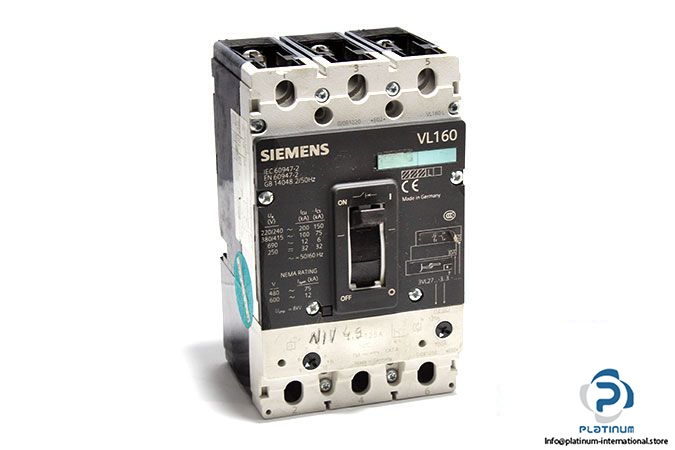

Siemens 3VL2712-3DC33-0AA0 Molded Case Circuit Breaker

SIEMENS VL160 3VL2 Molded-Case Circuit Breaker “ Sentron Series

The Siemens VL160 molded-case circuit breaker is part of the 3VL Sentron family, designed for high-performance industrial line protection. It delivers robust protection, advanced breaking capacity, and reliable performance in demanding electrical systems.

Main Specifications:

• Manufacturer: SIEMENS
• Type: Molded-Case Circuit Breaker
• Family: Sentron
• Series: 3VL
• Designation: VL160
• Size: 3VL2
• Order No.: 3VL2 712-3DC33-0AA0

Circuit Breaker Unit: SIEMENS 3VL2716-3AA33-0AA0

• Type: Basic Breaker
• Model: VL160L

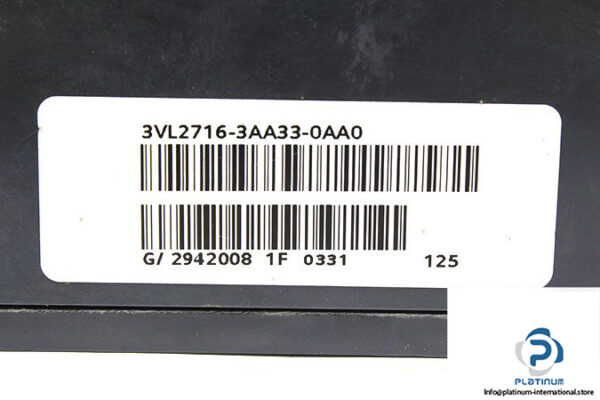

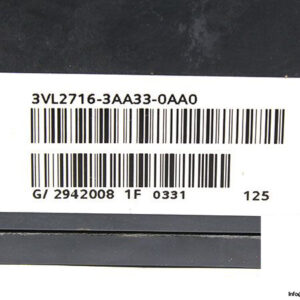

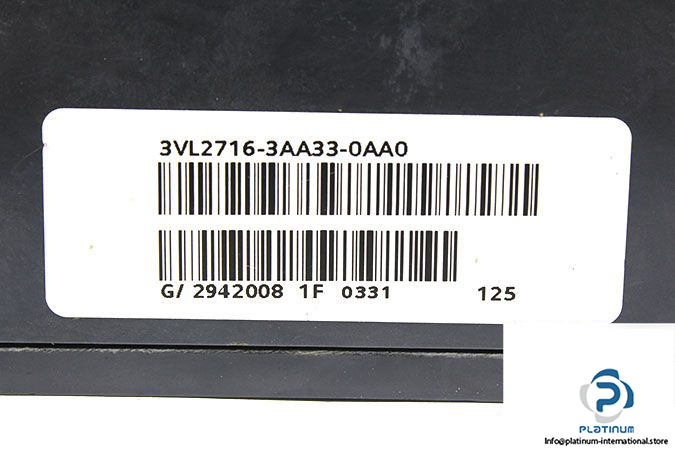

• Article No.: 3VL2716-3AA33-0AA0
• Part No.: g/2942008 1f 0331 125
• Number of Poles: 3
• Operating Frequency: 50/60 Hz
• Rated Surge Voltage Resistance (Vimp): 8 kV
• Rated Operational Voltage (Ue): 690 V AC

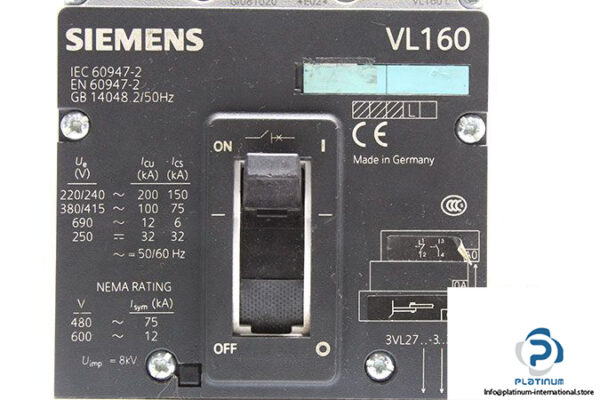

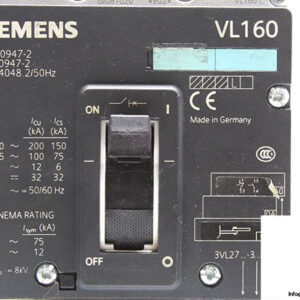

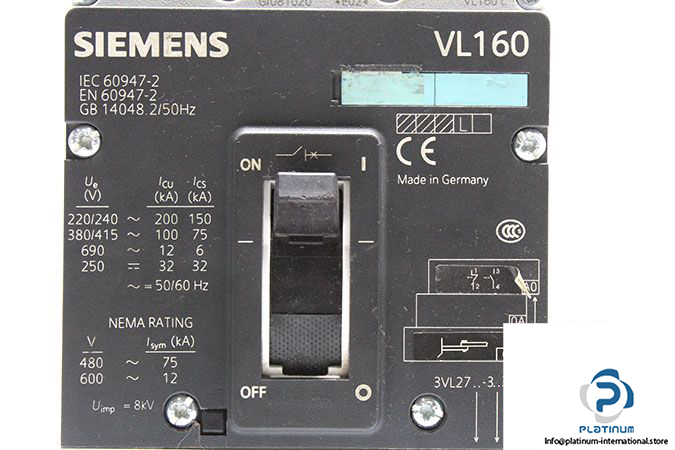

• Rated Breaking Capacity (Icu):
  “ 200 kA / 240V AC
  “ 100 kA / 415V AC
  “ 12 kA / 690V AC
• Standards: IEC 60947-2 / EN 60947-2
• Breaking Capacity Class: Very High Breaking Capacity L
• Field of Application: Line Protection
• Mounting: Fixed

Trip Unit: SIEMENS 3VL9212-7DC30

• Type: Overcurrent Trip Unit
• Overcurrent Release: Thermal-Magnetic TM

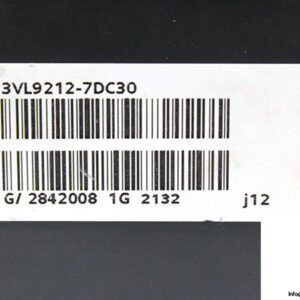

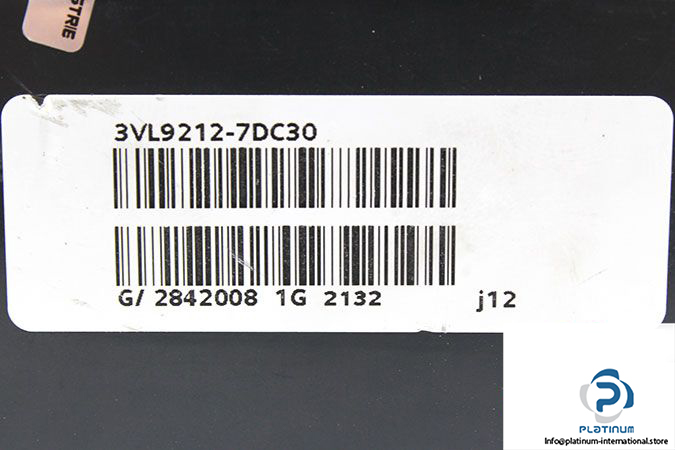

• Article No.: 3VL9212-7DC30
• Part No.: G/2842008 1G 2132 J12
• Number of Poles: 3
• Rated Current (In): 125 A
• Overload Protection Current (IR): 100 / 125 A
• Protective Functions: LI
  L = Overload protection
  I = Instantaneous short-circuit protection
• Protection Class: IP20
• Dimensions (H × W × D): 174.5 × 104.5 × 106.5 mm
• Ambient Temperature Range: -25°C to +70°C
