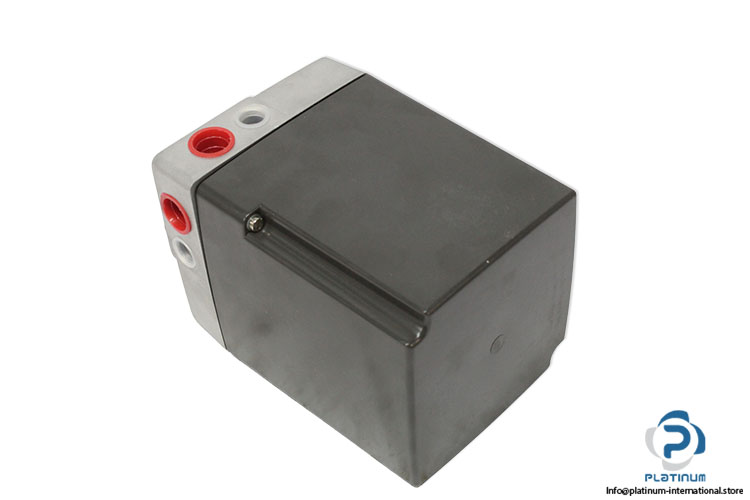

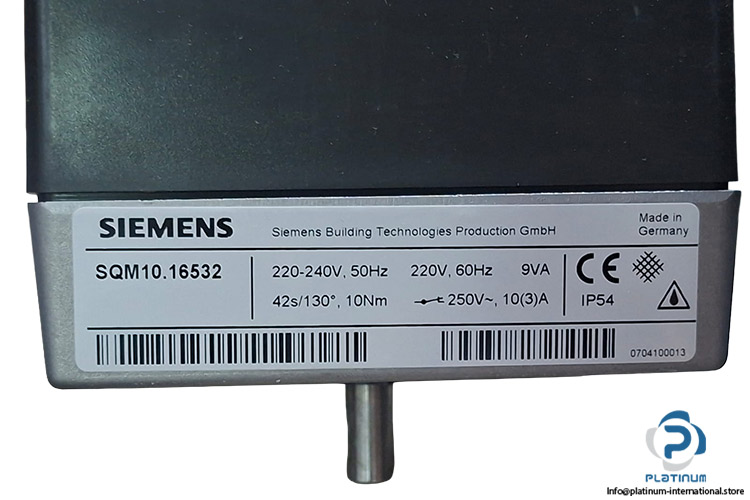

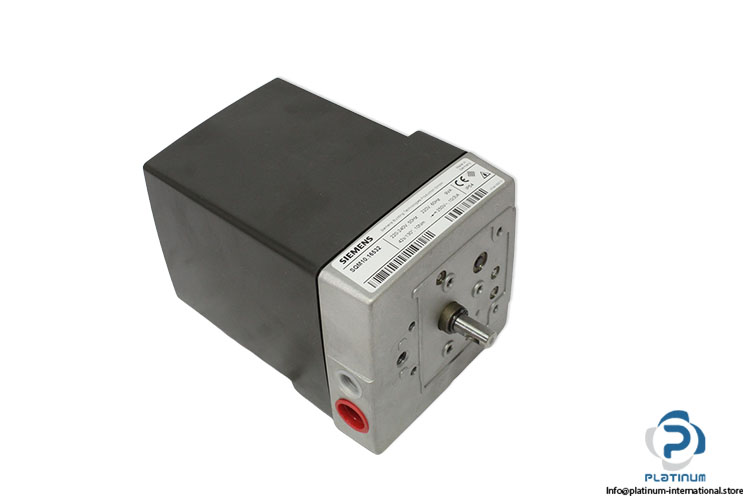

Siemens SQM10.16532 Electric Actuator
Neu
Auf Lager1 EinheitVersandbereit
339,99$
Actuator SIEMENS SQM1016532 actuator from the SQM1 series, designed for controlling air dampers and oil burner valves with 10 Nm nominal torque, 130° rotation angle, synchronous motor, and IP54 protection.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Ref. No. | 0704100013 |
| Series | SQM1 |
| Used for | Air Dampers and Control Valves of Oil Burners |
| Nominal Torque | 10 Nm |
| Starting Torque | 15 Nm |
| Holding Torque | 7 Nm |
| Direction of Rotation | Counter Clock Wise |
| Rotation Angel | 130° |
| Running Time for Angular Rotation | 42 s |
| Supply Voltage | 220 ... 240 V AC |
| Frequency | 50 … 60 Hz |
| Power Consumption Max. | 9 VA |
| Contact | Normally Closed (NC) |
| Contact Ratings | 250 V AC, 10(3) A |
| Switches No. | 5 |
| Actuator Motor | Synchronous Motor |
| Protection Class | IP54 |
| Ambient Temperature | -20 ... 60 °C |
| Dimensions | 184 x 120 x 120 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1102279 |
| Weight | 1,77 |
