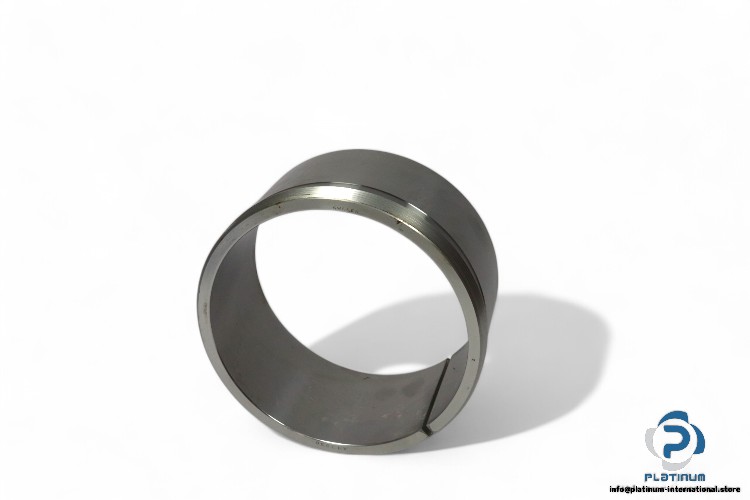

SKF AH 3036 Withdrawal Sleeve
Ausziehhülse Die SKF AH 3036 Ausziehhülse verfügt über einen Bohrungsdurchmesser von 170 mm, eine kleine Konuslänge von 180 mm und ein M190x3-Gewinde, was eine sichere und einfache Montage und Demontage von Lagern auf Kegelwellen gewährleistet.
SKF AH 3036 Withdrawal Sleeve
The SKF AH 3036 Withdrawal Sleeve is designed for easy mounting and dismounting of bearings, especially when bearings need to be mounted on tapered shafts. This high-quality sleeve ensures a secure fit, even under heavy load conditions.
Manufacturer: SKF
Type: WITHDRAWAL SLEEVE
Model: AH 3036
This SKF withdrawal sleeve is ideal for applications requiring easy assembly and disassembly of bearings, designed to withstand the demands of various heavy-duty industries. It features a small taper and a high-quality thread design for secure fitting on tapered shafts.

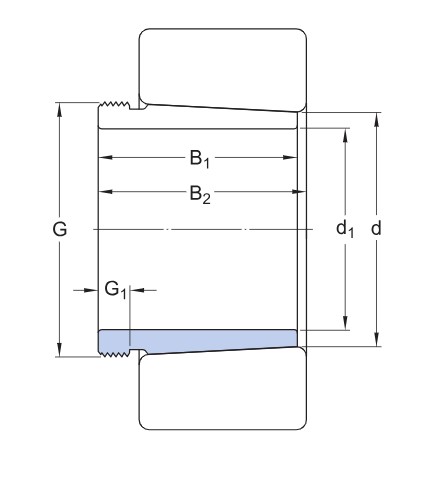

| Bore Diameter (d1) | 170 mm |
| Width | 92 mm |
| Outside Diameter Small Taper (d) | 180 mm |
| Thread (G) | M190x3 |
| Length Thread (G1) | 17 mm |
| External Taper | 1:12 |
