SKF FY 35 TF Square Flanged Ball Bearing Unit
Neu
Auf Lager1 EinheitVersandbereit
Quadratische Flanschlager-Einheit SKF FY35TF quadratische Flansch-Kugellagereinheit mit 35 mm Bohrung, Gehäuse aus Gusseisen, Stellschraubensperre und hoher Tragfähigkeit für industrielle Anwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

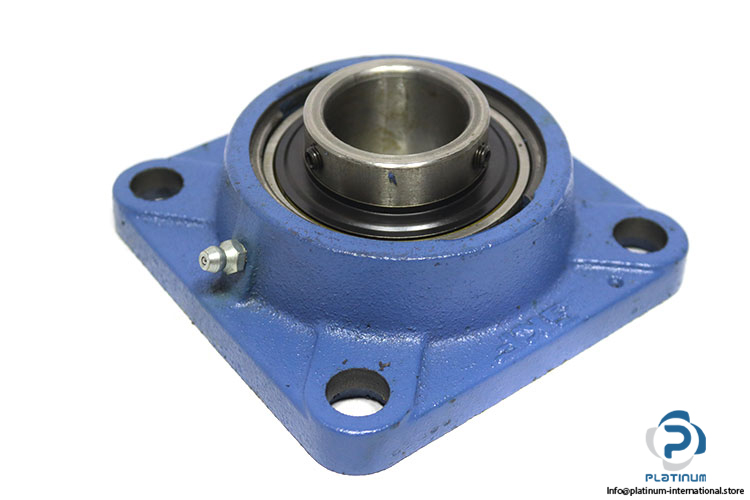

SKF FY35TF Square Flanged Ball Bearing Unit
The SKF FY35TF is a square flanged ball bearing unit designed for reliable shaft support and stable operation in industrial applications. It combines a robust cast iron housing with an insert bearing secured by a set screw locking mechanism.
Manufacturer: SKF
Type: Square Flanged Ball Bearing Unit
Model: FY35TF

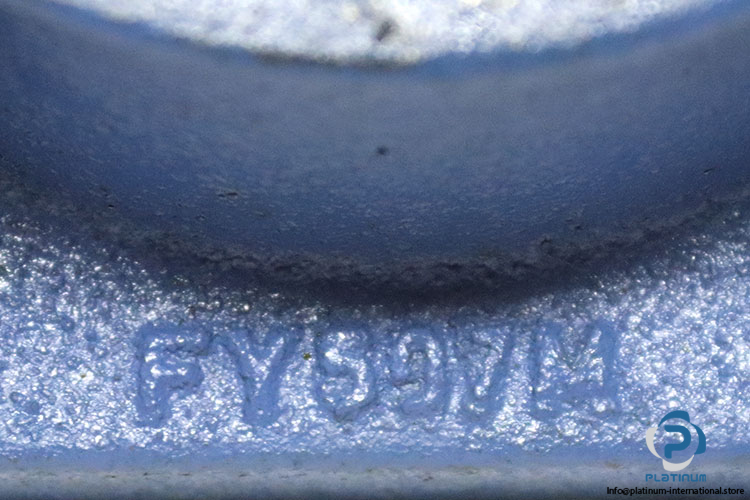

Housing Number: FY507M
| Bore Diameter (d) | 35 mm |
| Housing Overall Width | 34.5 mm |
| Total Width | 46.4 mm |
| Centre Distance Between Bolt Holes | 92 mm |
| Overall Length (L) | 118 mm |
| Inner Ring Width (B) | 42.9 mm |
| Dynamic Load Rating (Cr) | 25.5 kN |
| Static Load Rating (C0r) | 15.3 kN |
| Maximum Rotational Speed | 5300 rpm |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
