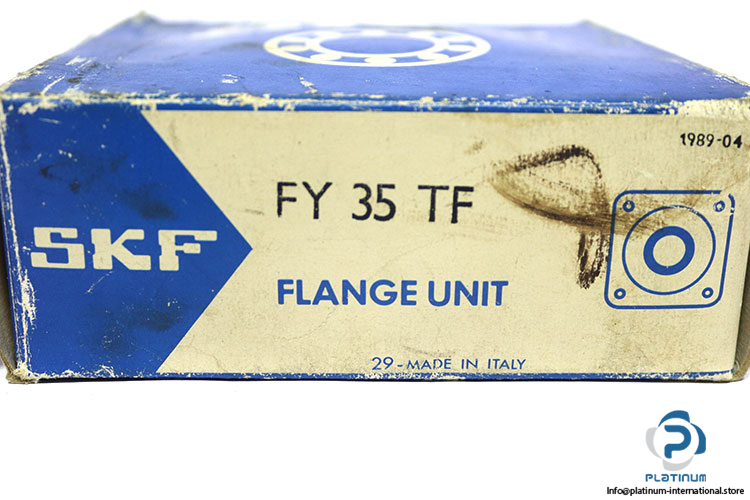

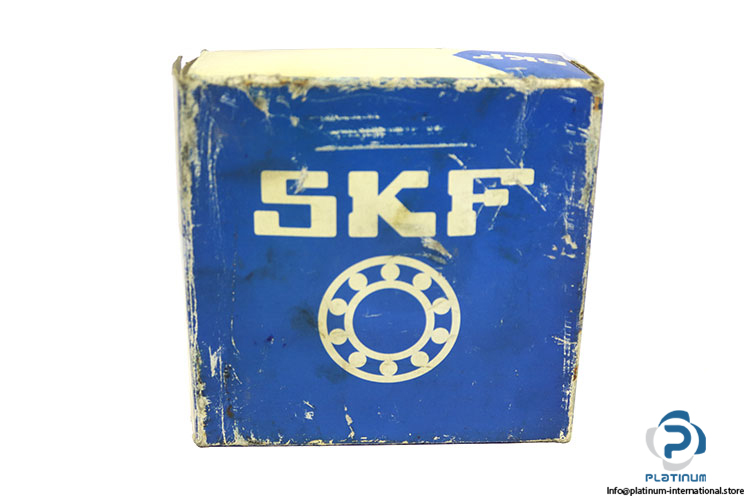

SKF FY 35 TF Square Flanged Ball Bearing Unit
New
In stock1 unitReady to ship
Square Flanged Bearing Unit
SKF FY35TF square flanged ball bearing unit with 35 mm bore, cast iron housing, set screw locking, and high load capacity for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF FY35TF Square Flanged Ball Bearing Unit

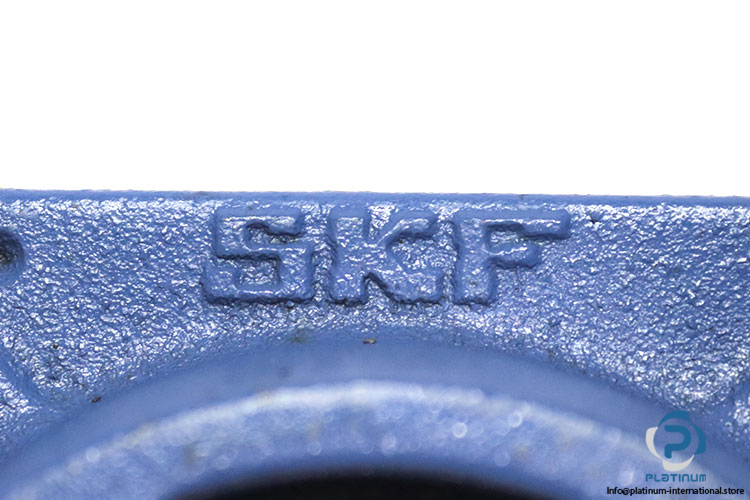

The SKF FY35TF is a square flanged ball bearing unit designed for reliable shaft support and stable operation in industrial applications. It combines a robust cast iron housing with an insert bearing secured by a set screw locking mechanism.
Manufacturer: SKF
Type: Square Flanged Ball Bearing Unit
Model: FY35TF

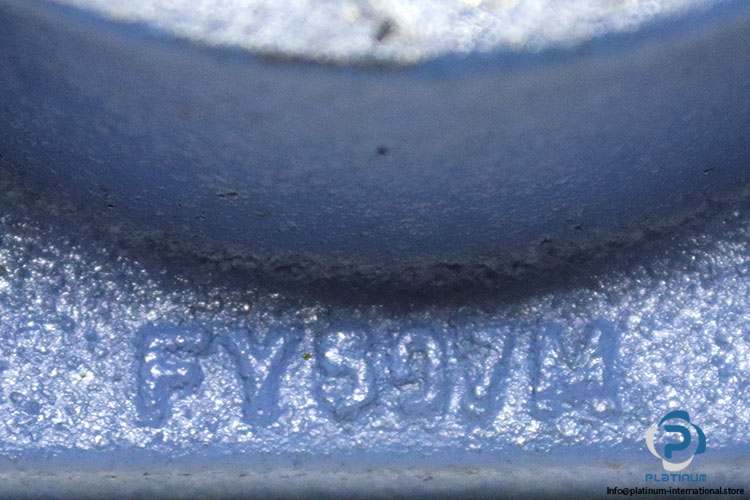

Housing Number: FY507M
| Bore Diameter (d) | 35 mm |
| Housing Overall Width | 34.5 mm |
| Total Width | 46.4 mm |
| Centre Distance Between Bolt Holes | 92 mm |
| Overall Length (L) | 118 mm |
| Inner Ring Width (B) | 42.9 mm |
| Dynamic Load Rating (Cr) | 25.5 kN |
| Static Load Rating (C0r) | 15.3 kN |
| Maximum Rotational Speed | 5300 rpm |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
