SKF H 222 Adapter Sleeve
Adapterhülse Die SKF H222 Adapterhülse verfügt über einen Bohrungsdurchmesser von 100 mm, einen kleinen Kegeldurchmesser von 110 mm und eine KM22 Sicherungsmutter für eine sichere und effiziente Lagerbefestigung in industriellen Anwendungen.

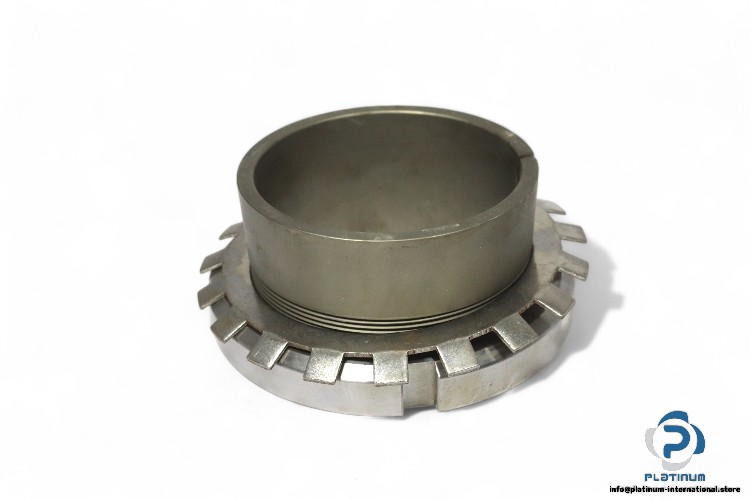

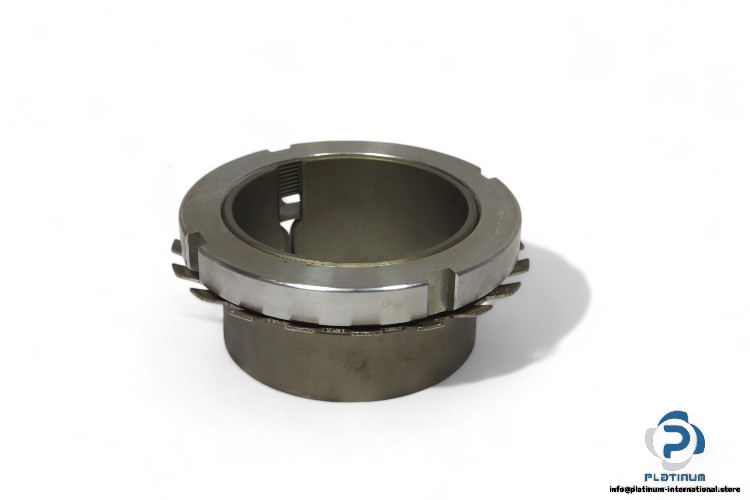

SKF H222 Adapter Sleeve
The SKF H222 Adapter Sleeve is designed for mounting on tapered shafts. It provides a reliable and easy way to mount bearings, pulleys, or other components that require a stable and secure attachment.
Manufacturer: SKF
Type: ADAPTER SLEEVE

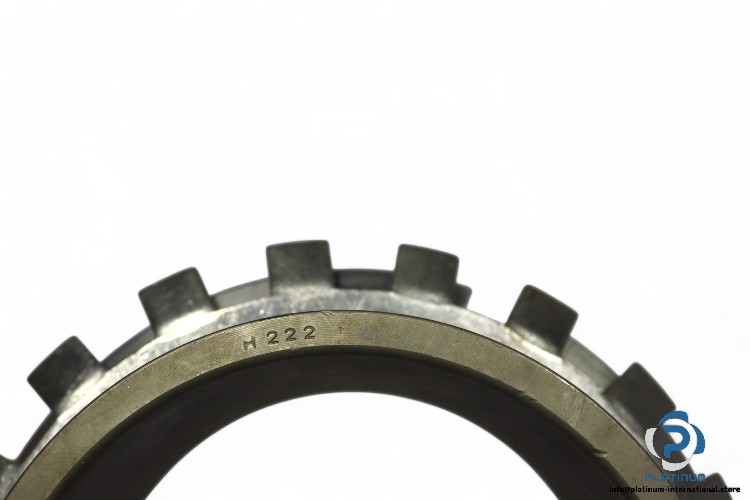

Model: H222
The SKF H222 Adapter Sleeve is ideal for applications requiring secure and efficient mounting of bearings, offering ease of installation and removal. With its high-quality materials and precise design, it ensures long-lasting durability and stability in various industrial systems.

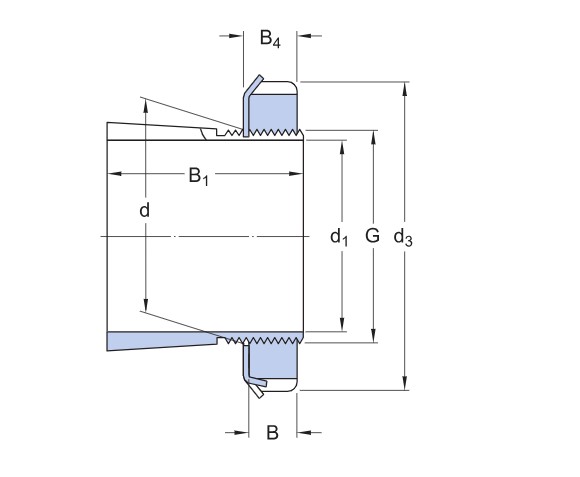

| Bore Diameter (d1) | 100 mm |
| Outside Diameter Small Taper (d) | 110 mm |
| Outer Diameter Lock Nut (d3) | 145 mm |
| Width (B1) | 63 mm |
| Width Lock Nut Including Lock Washer (B4) | 21 mm |
| Thread (G) | M110x2 |
| External Taper | 1:12 |

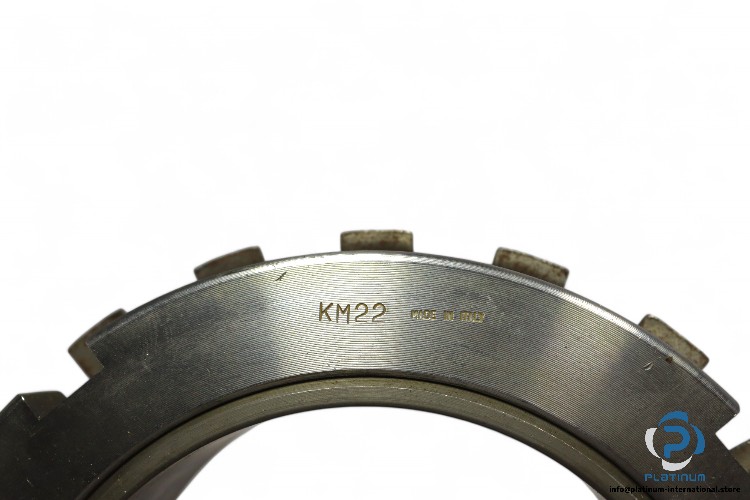

| Locknut | KM22 |
| Lock Washer | MB22 |
