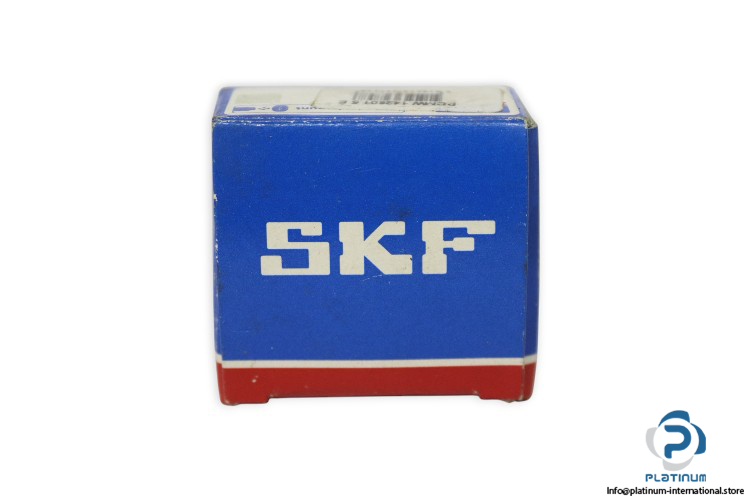

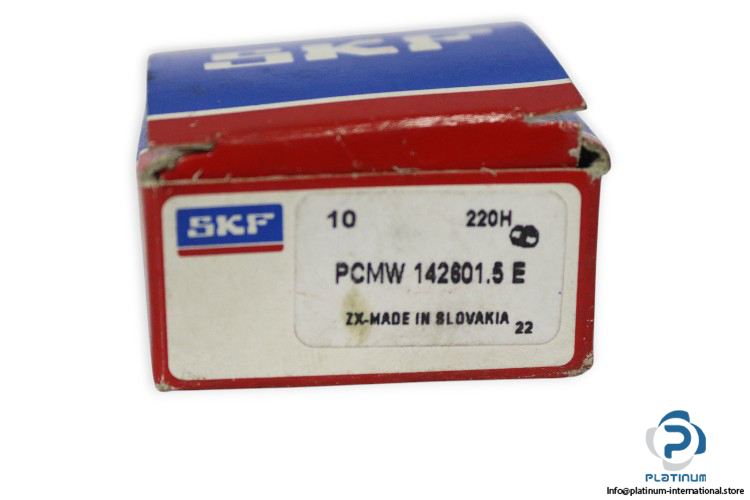

SKF Pcmw 142601.5 E Ptfe Composite Thrust Washer
Neu
Auf Lager2 EinheitenVersandbereit
PTFE Verbund-Druckscheibe Die SKF PCMW142601.5E Druckscheibe verfügt über PTFE-Verbundmaterial für geringe Reibung und hohe Verschleißfestigkeit, ausgelegt für axiale Lasten bis zu 93 kN mit den Abmessungen 14x26x1,5 mm.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SKF PTFE Composite Thrust Washer PCMW142601.5E
The SKF PCMW142601.5E is a high-quality PTFE composite thrust washer engineered for applications requiring low friction and high wear resistance. Designed for axial load support, this washer ensures smooth operation and long service life in various mechanical and industrial systems. Its PTFE composite material provides excellent sliding properties and maintenance-free performance.
Manufacturer: SKF
Type: PTFE Composite Thrust Washer
Model: PCMW142601.5E
| Bore Diameter (d) | 14 mm |
| Outer Diameter (D) | 26 mm |
| Thickness (H) | 1.5 mm |
| Pitch Diameter of Attachment Bolt Holes (J) | 20 mm |
| Diameter Fixing Bore (K) | 2.25 mm |
| Basic Dynamic Load Rating | 30 kN |
| Basic Static Load Rating | 93 kN |
| Material | PTFE Composite |
| No. of Items/Set | 10 |
