SKF YET 208 Insert Ball Bearing
Neu
Auf Lager1 EinheitVersandbereit
INSERT KUGELLAGER SKF YET 208 Einbaukugellager mit 40 mm Bohrung, 80 mm Außendurchmesser und 4800 U/min Grenzgeschwindigkeit. Verfügt über exzentrischen Kragen, doppelte Abdichtung und hohe Tragfähigkeit für anspruchsvolle Anwendungen.
20840BallbearingboreCapacityCollarCylindricalEccentricHighIndustrialinsertLoadmmOuterRingSealedSKFSphericalYET
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

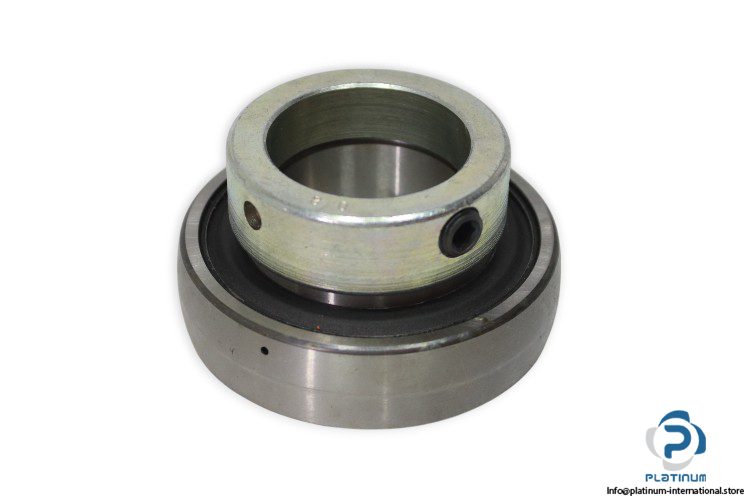

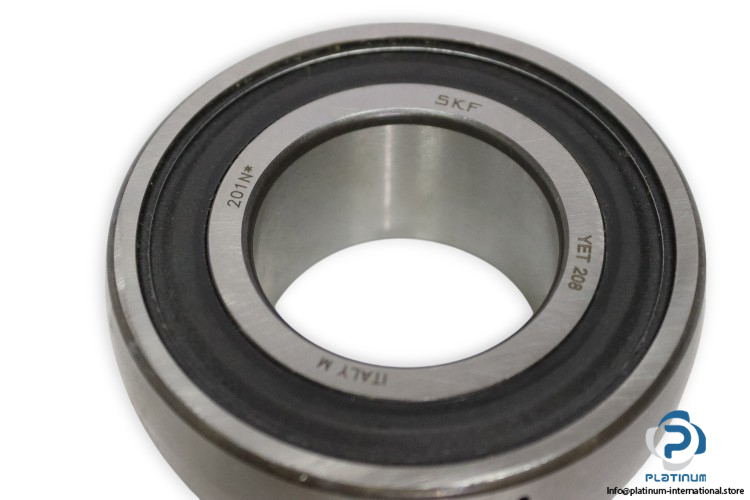

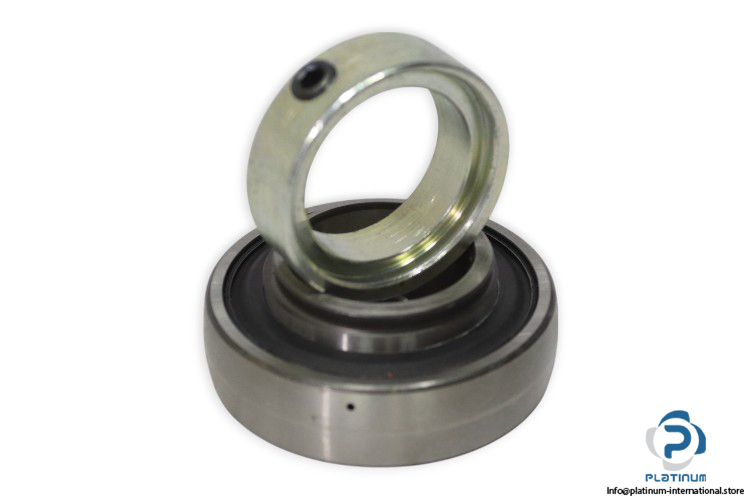

SKF YET 208 INSERT BALL BEARING
The SKF YET 208 Insert Ball Bearing is a robust and reliable bearing solution, designed for demanding applications requiring durability, high load capacity, and consistent performance. With an eccentric collar locking mechanism and dual-sided sealing, it offers secure mounting and protection against contaminants.
Manufacturer: SKF
Type: Insert Ball Bearing
Model: YET 208
| Bore Diameter (d) | 40 mm |
| Outer Diameter (D) | 80 mm |
| Width of Inner Ring (B) | 29.7 mm |
| Width of Outer Ring (C) | 21 mm |
| Overall Bearing Width (B1) | 43.2 mm |
| Basic Load Ratings | Dynamic C: 30,700 N / Static C0: 19,000 N |
| Fatigue Load Rating | 800 N |
| Limiting Speed | 4800 rpm |
| Inner Ring Extension | On one side |
| Outer Ring Type | Spherical |
| Retaining Feature, Inner Ring | Eccentric collar |
| Sealing | Seal on both sides |
| Bore Type | Cylindrical |
