SMC MGPL20-100 COMPACT GUIDE CYLINDER

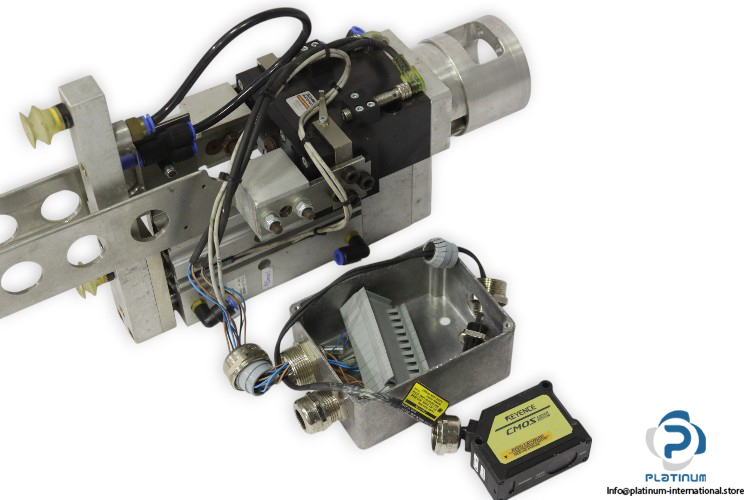

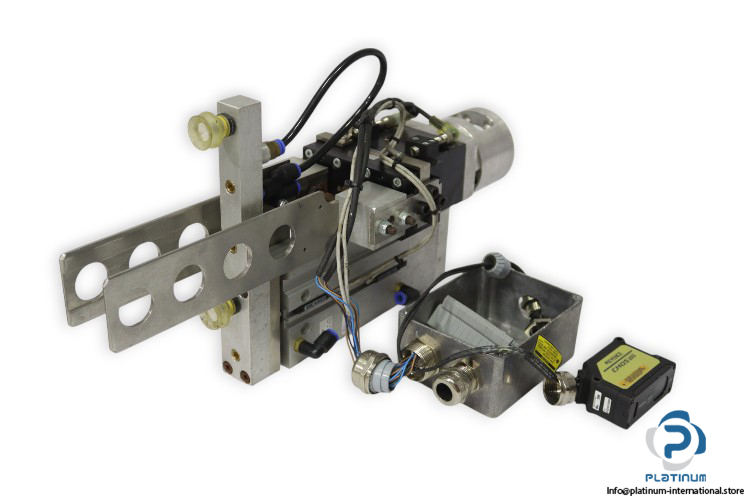

The SMC MGPL20-100 is a high-performance compact guide cylinder designed for precision linear motion applications. With double-acting operation, ball bushing bearings, and robust construction, it ensures stable guidance under lateral loads. It includes advanced attachments like a REED switch, pneumatic parallel gripper, and long-distance laser sensor for enhanced automation integration.
Manufacturer: SMC
Type: Compact Guide Cylinder

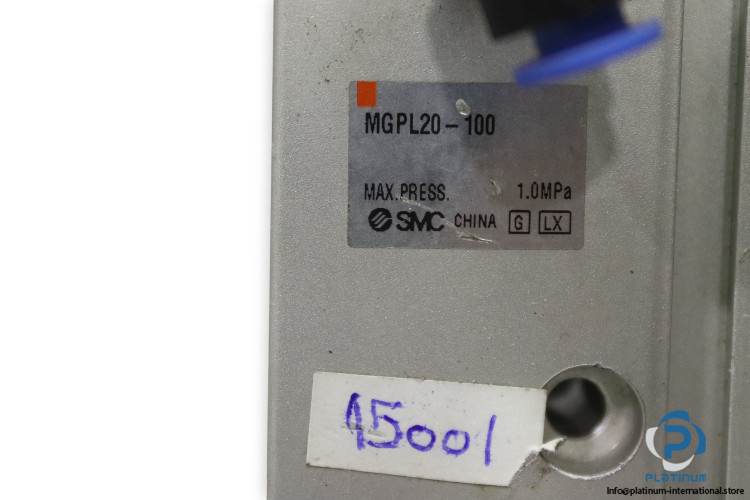

Model: MGPL20-100
Code: G/LX
| Connection | 6 mm |
| Pressure | 1 MPa |
| Stroke | 100 mm |
| Piston Diameter | 20 mm |
| Bearing Type | Ball Bushing |
| Action | Double Acting |
| Ambient and Fluid Temperature | -10 to 60 °C |

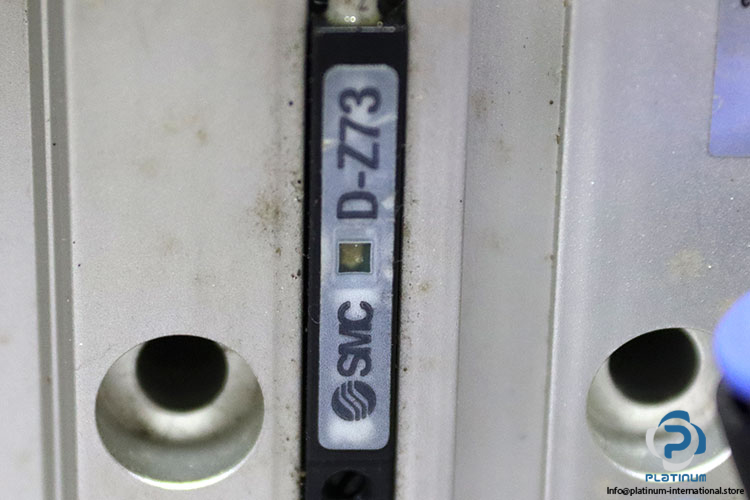

| Attachment 1 | SMC D-Z73 REED SWITCH |
| Electrical Entry Direction | In-line |
| Load Voltage | 24 V DC |
| Maximum Load Current | 5 to 40 mA |
| Internal Voltage Drop | 2.4 V or less |

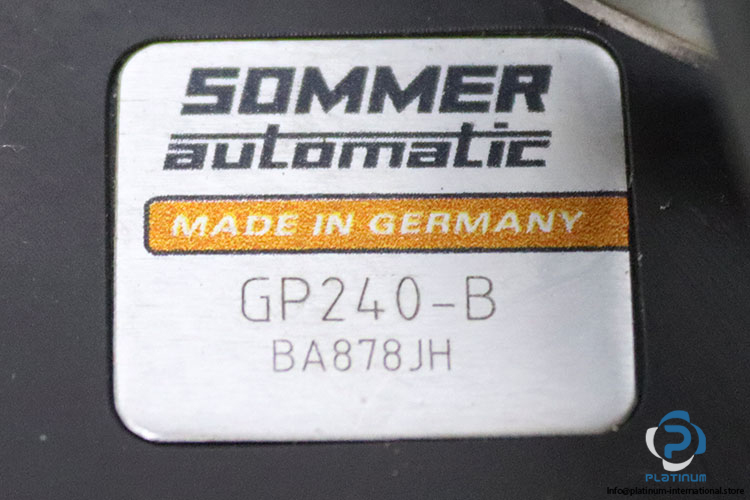

| Attachment 2 | SOMMER AUTOMATIC GP240-B PNEUMATIC PARALLEL GRIPPER |
| Part No. | BA878JH |
| Stroke Per Jaw | 20 mm |
| Gripping Force | 510 N |

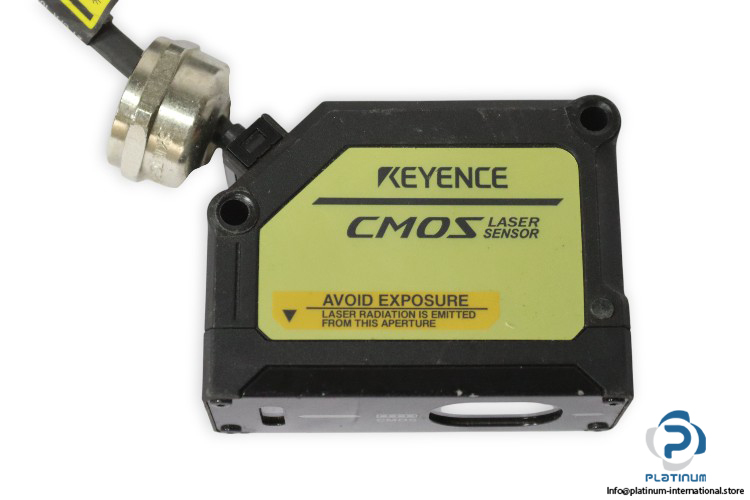

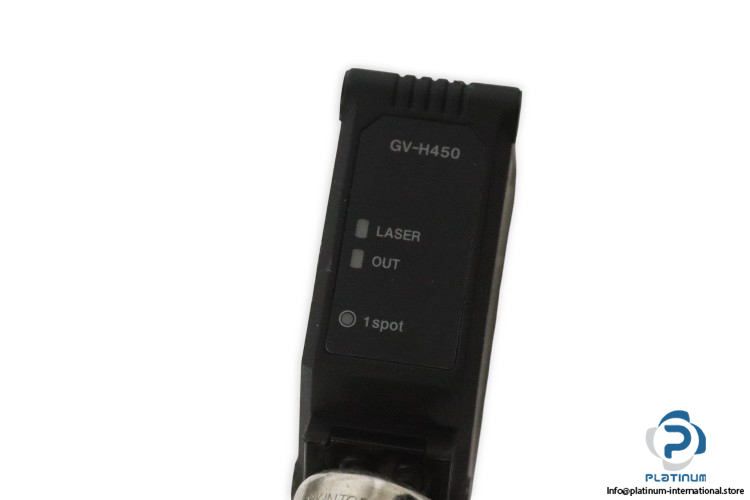

| Attachment 3 | KEYENCE GV-H450 LASER SENSOR |

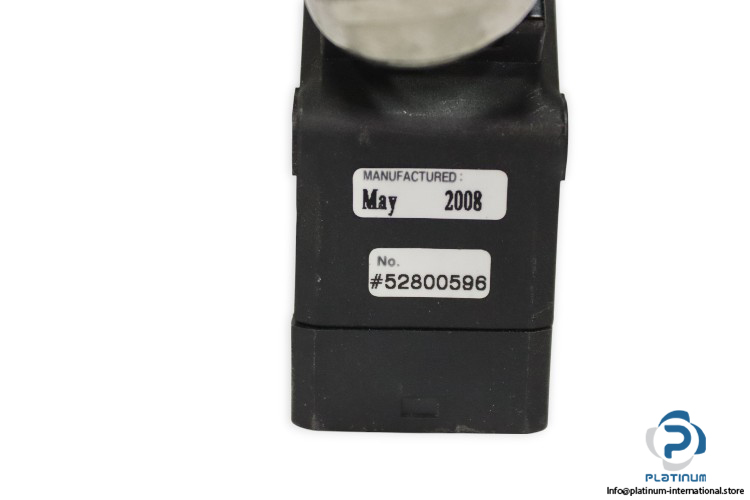

| Part No. | 52800596 |
| Light Source | Visible Semiconductor Laser, 655 nm |
| Detection Distance (Amplifier Display) | 160 to 450 mm |
| Possible Display Range | 295 to -50 |
| Standard Detection Deviation | 3 mm |
| Enclosure Rating | IP67 |
