Stahl 9477/15-08-12 Digital Output Module

Auf Lager1 EinheitVersandbereit

99,99$

Digitales Ausgangsmodul STAHL DOM R 08 für das IS1 Remote-I/O-System mit 8 Ex e Ausgangskanälen, explosionsgeschütztem Design und zuverlässiger Steuerung für gefährliche Industrieumgebungen.

Hersteller
STAHL
SKU
1096070
Kategorie
Others
Zustand
Gebraucht
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

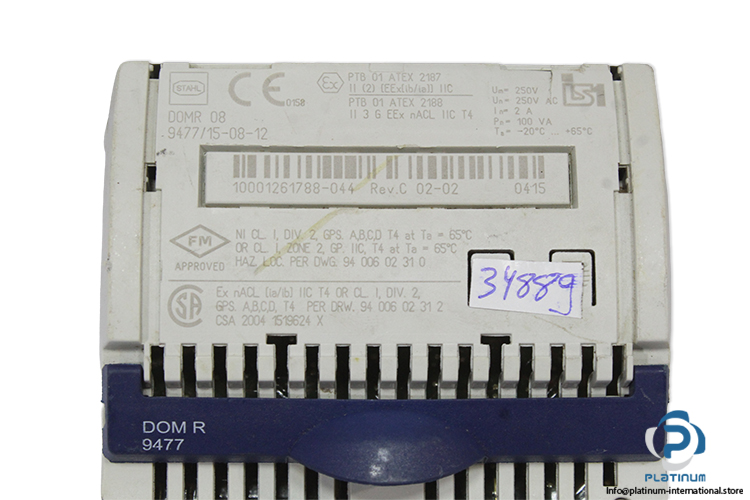

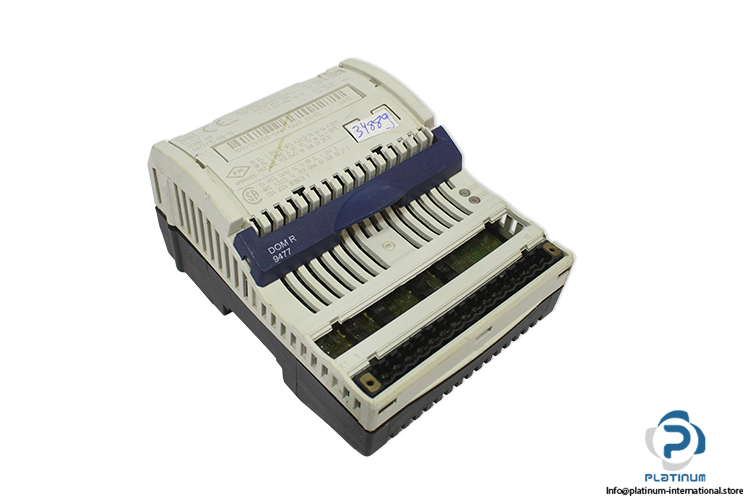

STAHL DOM R 08 Digital Output Module

The STAHL DOM R 08 is an industrial digital output module designed for the IS1 remote I/O system. It provides reliable control of field devices in hazardous environments and supports intrinsically safe operation with explosion protection.

Manufacturer: STAHL

Type: Digital Output Module

Model: DOM R 08

Order No.: 9477/15-08-12

Code: 10001261788-044

REV: C 02-02

Series: 9477

System: IS1

Number Of Channels8 Ex e Outputs
Connection Ex nA Field SignalsPluggable Terminals, 16-Pin, 2.5 mm², Screw Type Or Cage Clamp Version With Lock
Max. Power Consumption4.80 W
Max. Power Dissipation Of Outputs4.8 W
Power Supply ConnectionBusRail Types 9494
Auxiliary Power VersionIntrinsically Safe Ex ia Via BusRail
Behaviour During UndervoltageAll Outputs "OFF"
Current Consumption200 mA
Max. Power Consumption4.80 W
Max. Power Dissipation Outputs4.8 W
Test Voltage For Galvanic SeparationAcc. To Standard EN 60079-11
Auxiliary Power / System Components1500 V AC
I/O Module / I/O Module500 V AC
I/O Channels / System Components375 V AC
I/O Channels / I/O Channels250 V AC
Contact VersionNO
Max. Switching Voltage250 V AC
Min. Switching Voltage5 V AC/DC
Max. Switching Current2.00 A
Min. Switching Current2 mA
Ambient Temperature-20°C ... +65°C
Max. Operating Altitude< 2000 m
Degree Of Protection IP (IEC 60529)IP20
Module EnclosurePolyamide 6GF
Fire Resistance (UL 94)V2
Pollutant ClassCorresponds To G3
Width96.500 mm
Depth67 mm
Length128 mm
ContactsNO
Ambient Temperature-20 ... +65 °C
Explosion ProtectionExplosion Proof
