Stahl 9480/12-08-11 Temperature Input Module

Auf Lager5 EinheitenVersandbereit

99,99$

Temperatureingang Modul STAHL TIM R 08 für das IS1 System mit 8 Kanälen, RTD- und Potentiometer-Sensor-Kompatibilität, multiplexiertem Messstrom und explosionsgeschütztem Design für industrielle Anwendungen.

Hersteller
STAHL
SKU
1096067
Kategorie
Others
Zustand
Gebraucht
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

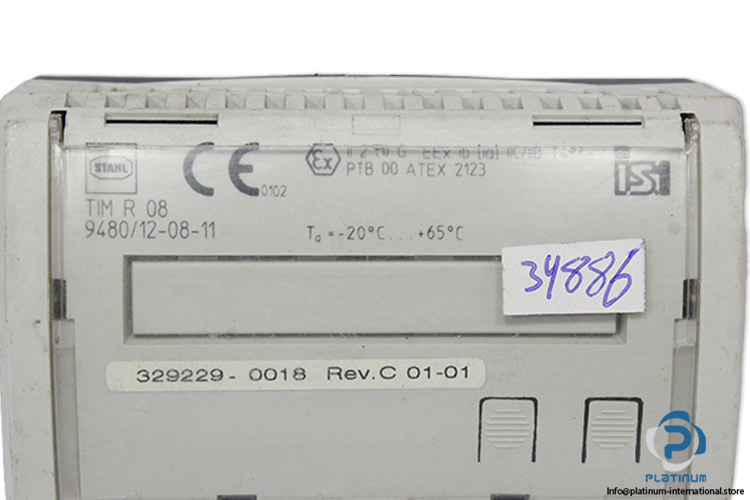

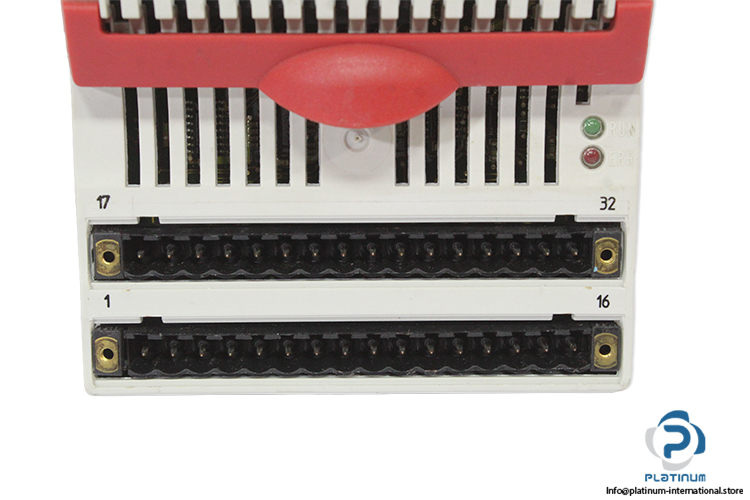

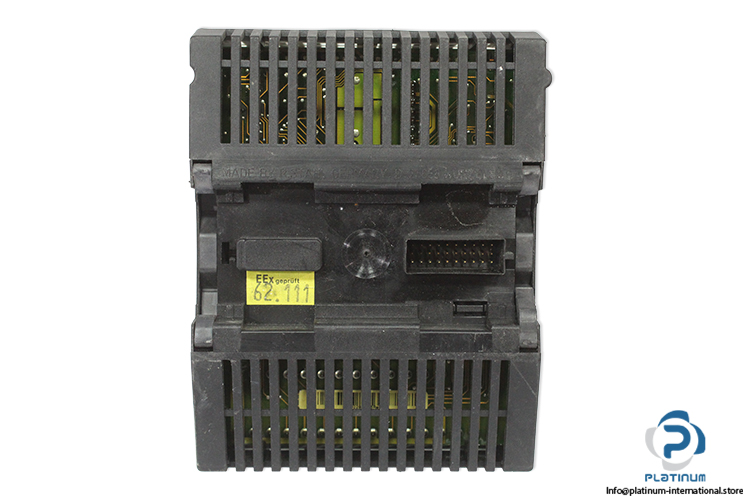

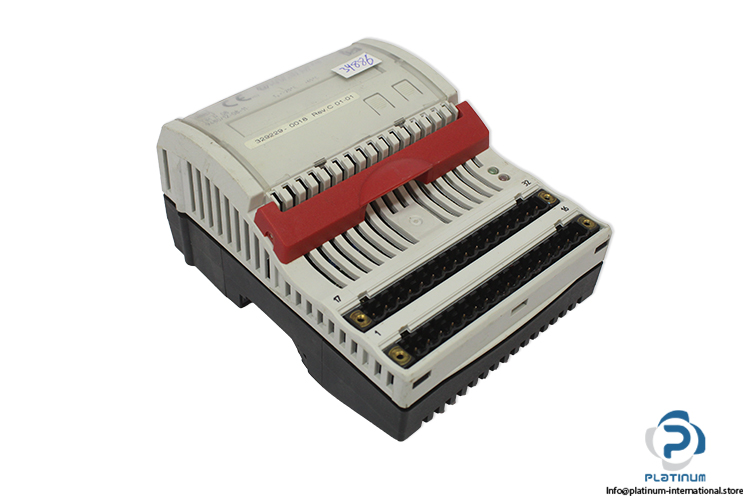

STAHL TIM R 08 Temperature Input Module

The STAHL TIM R 08 temperature input module from the IS1 system is designed for reliable temperature signal acquisition in hazardous and industrial environments. This module supports multiple RTD and potentiometer sensor types and provides accurate measurement performance with multiplexed current input.

Manufacturer: STAHL

Type: Temperature Input Module

Model: TIM R 08

Order No.: 9480/12-08-11

Code: 329229-0018

Revision: C 01-01

Series: 9480

System: IS1

Connectable Sensors

Max. Voltage Uo6.51 V
Max. Current Io26.3 mA
Max. Power Po42.8 mW
Max. Capacitance Ca For IIC1.6 mF
Max. Inductance La For IIC5 mH
Inputs “ Number Of Channels8
Signal Range0 “ 10 kOhm
Measuring Current0.2 mA multiplexed
Max. Line Resistance Per Conductor100 Ohm
Linearity (Parameterizable)Temperature linear, resistance linear
Power Supply “ Max. Power Consumption1.6 W
Max. Power Loss1.6 W
Ambient Temperature-20 ... +65 °C
Explosion ProtectionExplosion proof
Pt100-200 ... +850 °C / 0.1 K
Pt500-200 ... +850 °C / 0.1 K
Pt1000-200 ... +850 °C / 0.1 K
Potentiometer (3-wire-circuit)0 “ 500 Ohm / 0.02 Ohm
Potentiometer (3-wire-circuit)0 “ 2.5 kOhm / 0.10 Ohm
Potentiometer (3-wire-circuit)0 “ 5 kOhm / 0.20 Ohm
Potentiometer (3-wire-circuit)0 “ 10 kOhm / 0.4 Ohm

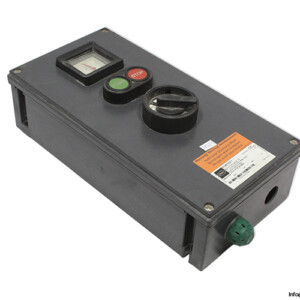

Stahl 8146/5071 Control BOX
Gebraucht

STAHL

Stahl 8146/5071 Control BOX

SKU: 1095916

Menge: 1

Auf Anfrage erhältlich
Stahl 9471/10-16-11 Digital Input Module
Gebraucht

STAHL

Stahl 9471/10-16-11 Digital Input Module

SKU: 1096071

Menge: 1

99,99$
Stahl STH 1206-021 Control Pendant
Gebraucht

STAHL

Stahl STH 1206-021 Control Pendant

SKU: 1105110

Menge: 1

Auf Anfrage erhältlich
Stahl STH 1302-022 Control Pendant
Gebraucht

STAHL

Stahl STH 1302-022 Control Pendant

SKU: 1105109

Menge: 1

Auf Anfrage erhältlich

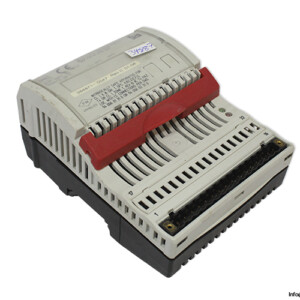

Stahl 9466/12-08-11 Analog Output Module
