Steinmeyer 2627590 Ball Screw

Name: STEINMEYER 2627590 BALL SCREW
SKU: 1008378
Availability: LimitedAvailability

Neu

Auf Lager1 EinheitVersandbereit

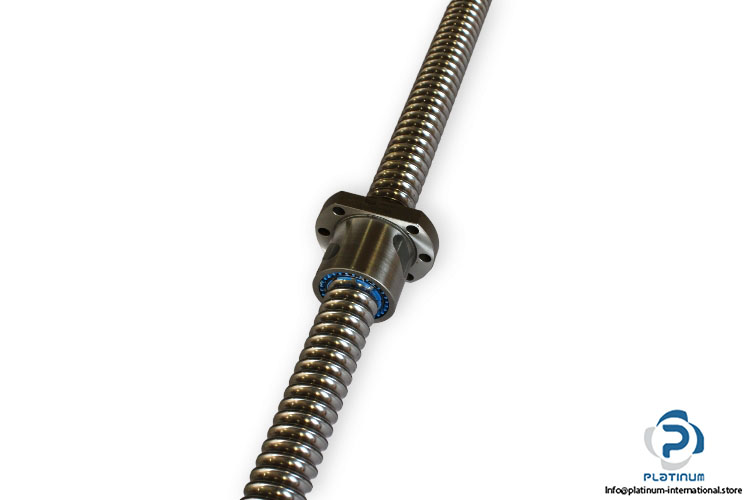

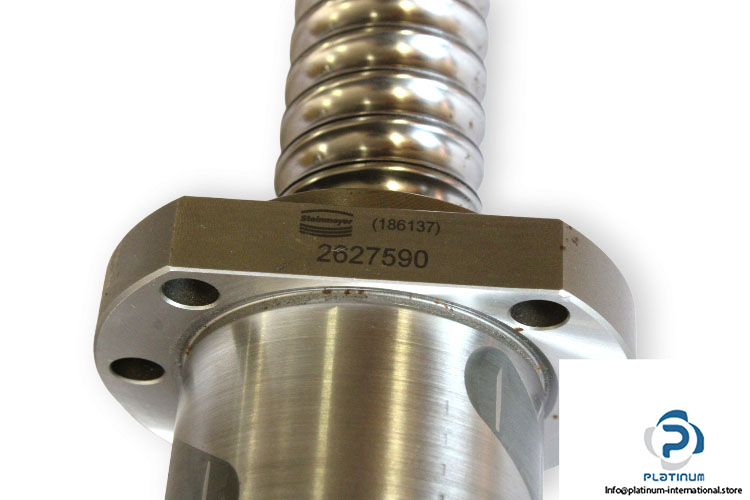

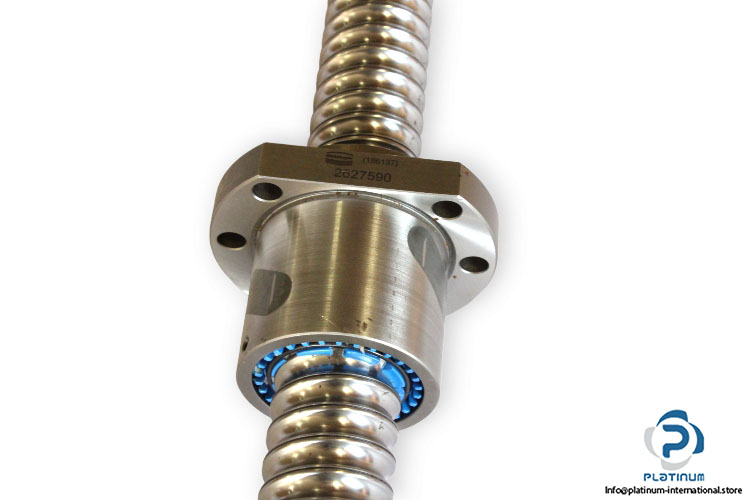

Flanschmutter Kugelgewindespindel mit Abstreifern an beiden Enden

Hersteller

STEINMEYER

SKU

1008378

Kategorie

Screw & Ball Screws

Zustand

Neu

40 Ball d0:flanged Linear mm Motion nut screw Steinmeyer

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: STEINMEYER
Type: Flange nut ball screw with wipers on both ends
Model: 2627590
Part no.: 186137

Size: 40
Nominal Diameter d_N: 40 mm
Dimensions:
Flange diameter: 93 mm
Nut outer diameter: 62 mm
Nut length: 70 mm
Flange thickness: 14 mm
Cutting flange width: 70 mm
Lead P: 10 mm
Direction of Lead: Right-Hand Thread
Threaded length: 1360 mm
Total screw length: 1480 mm

Spezifikation	Wert
Weight	12,2 kg
Condition	New
Size	40 x 10 R
Shelf No.	231221
Nut Outer Diameter [mm]	62 mm
Manufacturer	STEINMEYER
Type of Product	BALL SCREW
Flange Diameter [mm]	93 mm
Flange Thickness [mm]	14 mm
Cutting Flange Width [mm]	70 mm
Nut Length [mm]	70 mm
