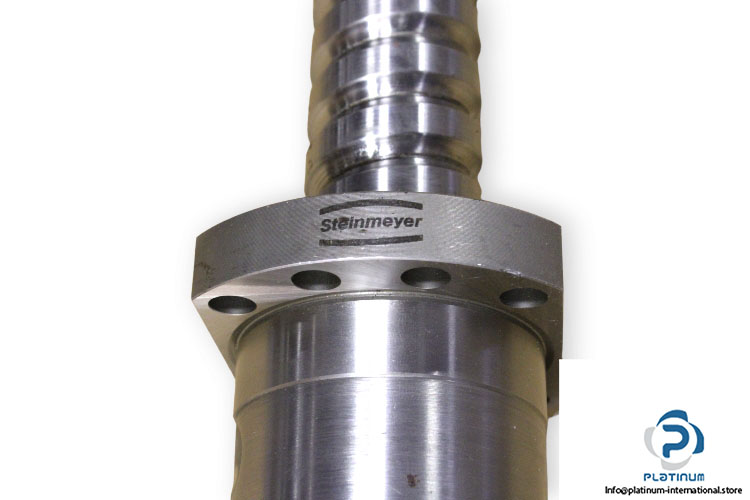

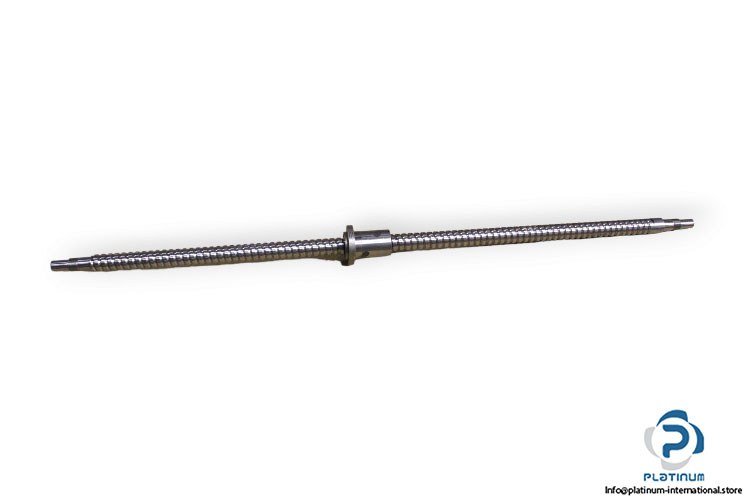

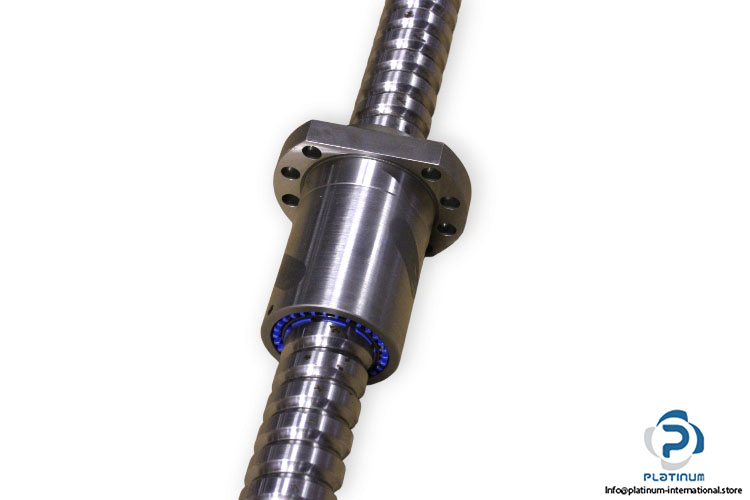

Steinmeyer 40-15 Ball Screw

Manufacturer: STEINMEYER
Type: DIN Standard Flanged Nut, Ball Oversize Preload
Model: 1416/15.40.1350.1530
Nut type: 1416/15.40.7,5.3

Size: 40
Nominal Diameter d_N: 40 mm
Lead P: 15 mm

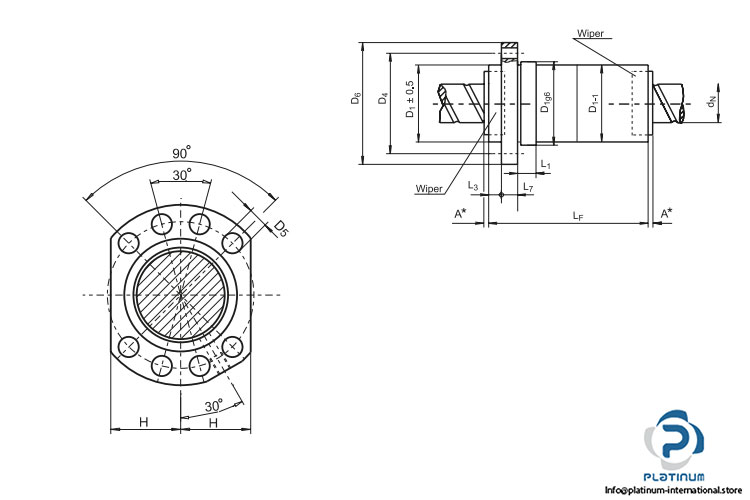

Dimensions:
Flange diameter D₆: 93 mm
Nut outer diameter D₁ g6: 63 mm
Nut length L_F: 104 mm
Flange thickness L₇: 14 mm
Cutting Flange Width(2H): 70 mm
L₁: 16 mm
D₄: 78 mm
No. of circuits i: 3
Ball diameter d_W: 7.5 mm
Direction of Lead: Right-Hand Thread
Dynamic load rating C_a: 45.9 kN
Static load rating C_0a: 71.1 kN
Stiffness R_{nu, ar}: 350 N/µm
Threaded length: 1350 mm
Total screw length: 1530 mm
