Telemecanique XCK J5930 Limit Switch

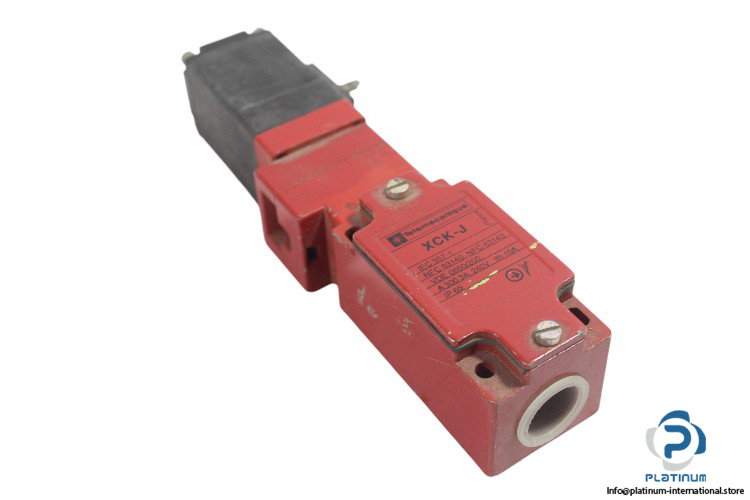

Telemecanique XCK-J5930 Limit Switch

The Telemecanique XCK-J5930 is a robust industrial limit switch from the XCKJ series, designed to meet IEC 337-1 standards. With a high durability Zamak body and head, it provides reliable operation in demanding environments. The switch supports a thermal current of 10 A and features an IP65 protection rating for resistance to dust and water.

Manufacturer: TELEMECANIQUE

Type: Limit Switch

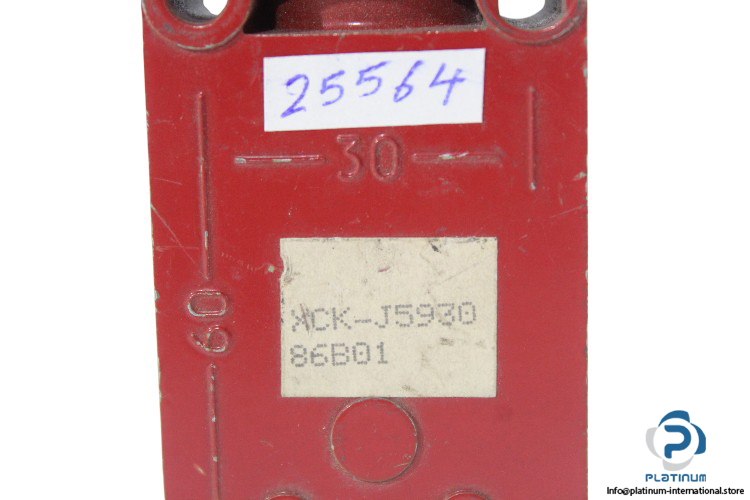

Model: XCK-J5930

Ref No.: 86B01

Device Short Name: XCKJ

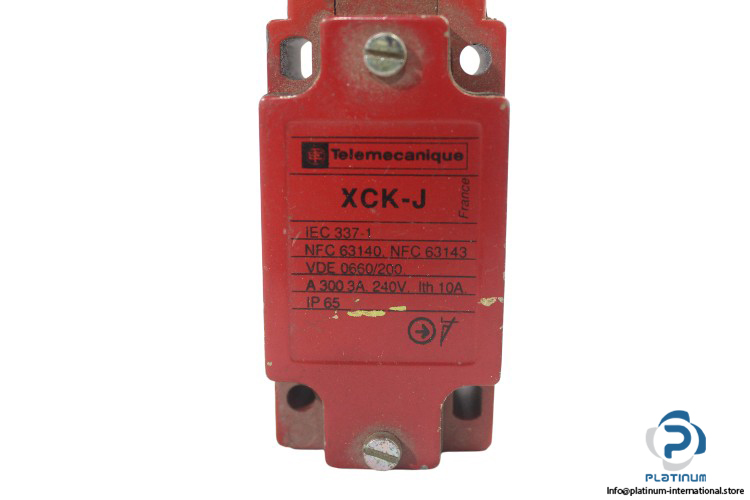

Technical Data:

• Thermal Current (Ith): 10 A
• Contact Rating: 240 V AC, 3 A
• Protection Degree: IP65
• Body Material: Zamak
• Head Material: Zamak
• Maximum Resistance Across Terminals: 25 MΩ
• Standard: IEC 337-1
