Telemecanique XCS-A702 Safety Switch
Neu
Auf Lager11 EinheitenVersandbereit
60,00$
SAFETY SWITCH
Telemecanique XCSA702 key-operated safety switch with rugged IP67 metal design, ideal for industrial applications demanding high protection and precise switching.1NO240V2NC60947-5-1ACENHousingIndustrialIP67KeyMetaloperatedProtectionSafetySwitchTelemecaniqueXCSA702
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

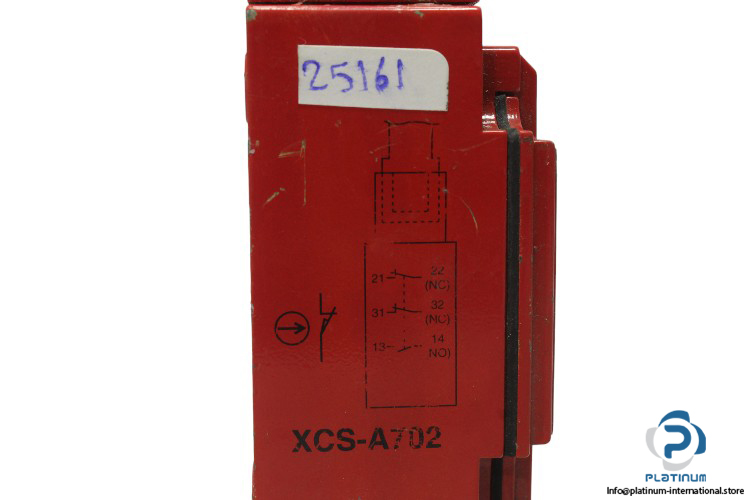

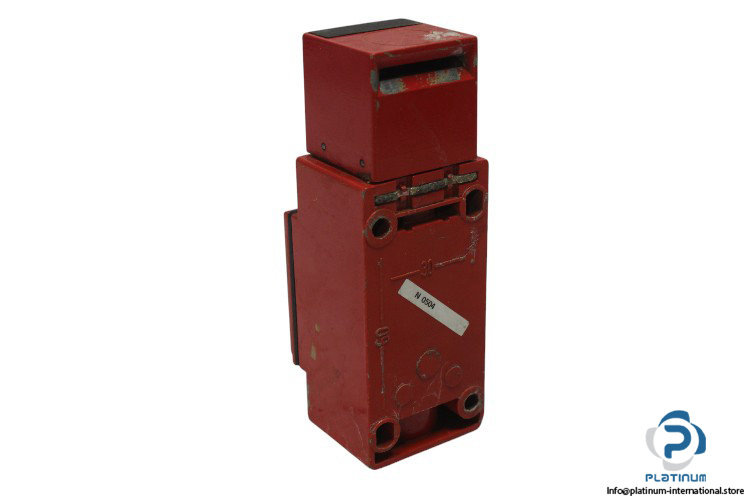

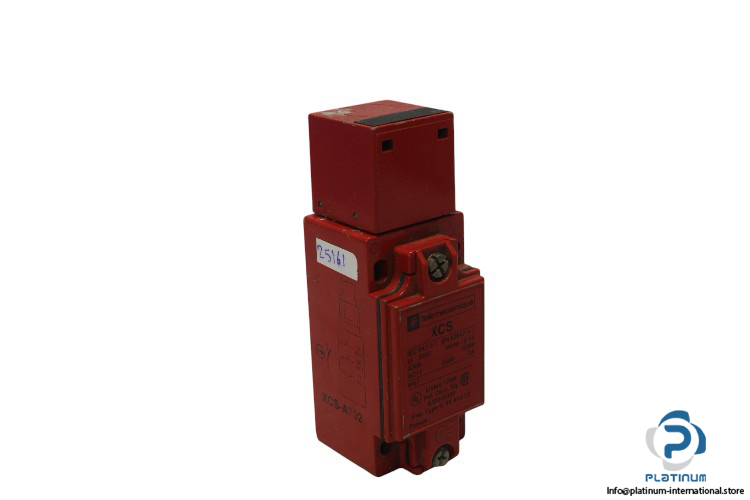

TELEMECANIQUE XCSA702 SAFETY SWITCH
The Telemecanique XCSA702 is a durable and reliable safety switch designed for industrial safety systems. Engineered with a key-operated turret head, this switch is ideal for applications requiring strict safety standards and dependable performance.
Manufacturer: Telemecanique
Type: Safety Switch
Model: XCSA702
Component Name: XCSA
Comas Part No.: 0422.200.591.032

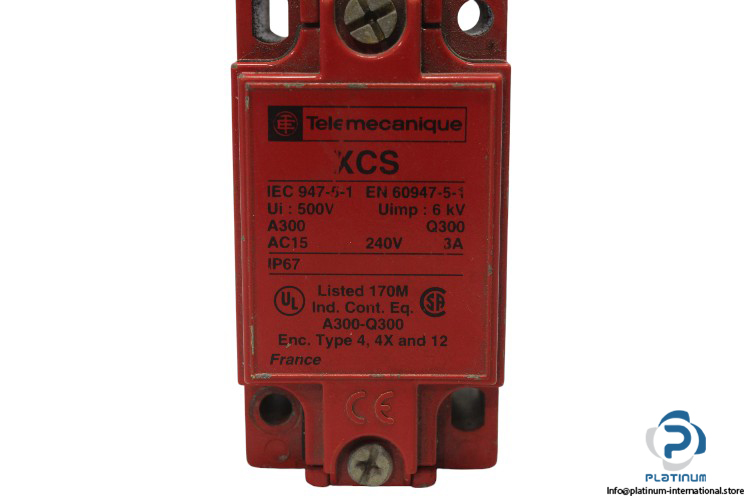

| Insulation Voltage Ui | 500 V |
| Impulse Withstand Voltage Uimp | 6 kV |
| Design | Industrial, Material: Metal |
| Head Type | Key Operated Turret Head |
| Contacts Type and Composition | 2 NC + 1 NO |
| Contact Operation | Slow-break, Break Before Make |
| Cable Entry | 1 Entry Tapped M20 x 1.5 |
| Cable Outer Diameter | 0.28“0.51 in (7“13 mm) |
| Electrical Connection | Terminal 1 x 0.5“2 x 1.5 mm² with or without Cable End |
| Standard | EN/IEC 60947-5-1 |
| Number of Poles | 3 |
| Switching Voltage Max. | 240 V AC |
| Contact Current Max. | 3 A |
| Protection Class | IP67 |
| Ambient Operating Temperature | -25 to 70 °C |
| Dimensions | 44 x 114 x 40 mm |
