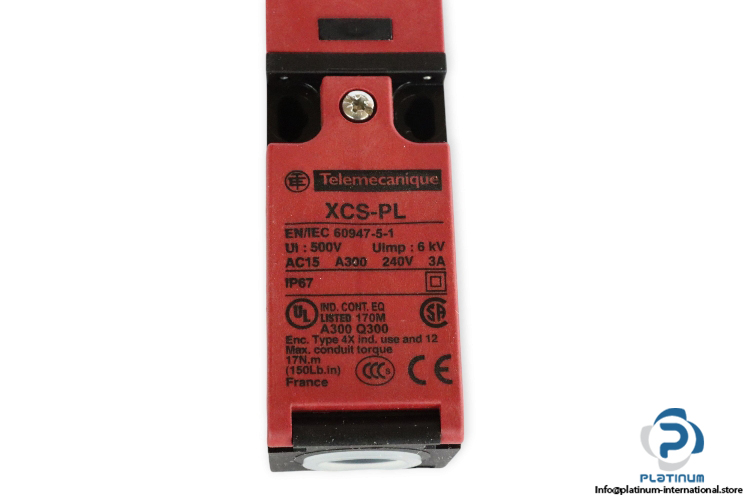

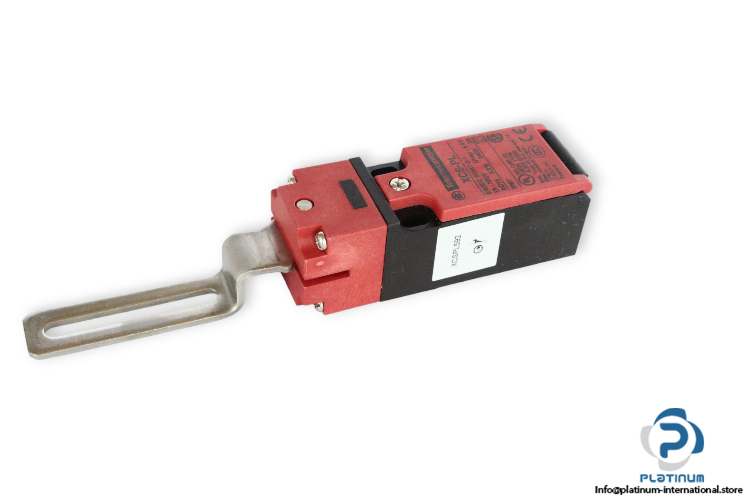

Telemecanique XCSPL592 Safety Limit Switch

Manufacturer: Telemecanique
Type: Safety Limit Switch
Model: XCS PL592

Range of product: Telemecanique Safety switches XCS
Head type: Turret head rotary lever
Rated operational current Ie: 3 A at 240 V
Conventional enclosed thermal current Ith: 10 A
Rated insulation voltage Ue: 300 V conforming to UL 508, 500 V conforming to IEC 60947-1, 300 V conforming to CSA C22.2 No 14
Rated impulse withstand voltage Uimp: 6 kV
Contacts type and Composition: 1 NC + 1 NO
Contact operation: Slow-break, break before make
Electrical connection: Terminal
Material: Plastic
Number of poles: 2
Standard: EN/IEC 60947-5-1
Protection class: IP67
Ambient temperature operation: -25 … 70 °C
Dimensions: 103 x 88 x 30 mm
