Telemecanique XD2PA22 Joystick Controller
Gebraucht
Auf Lager1 EinheitVersandbereit
Joystick Controller
The Telemecanique XD2PA22 joystick controller offers durable metal construction, precise 2-direction control, and IP66 protection for reliable industrial operation.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

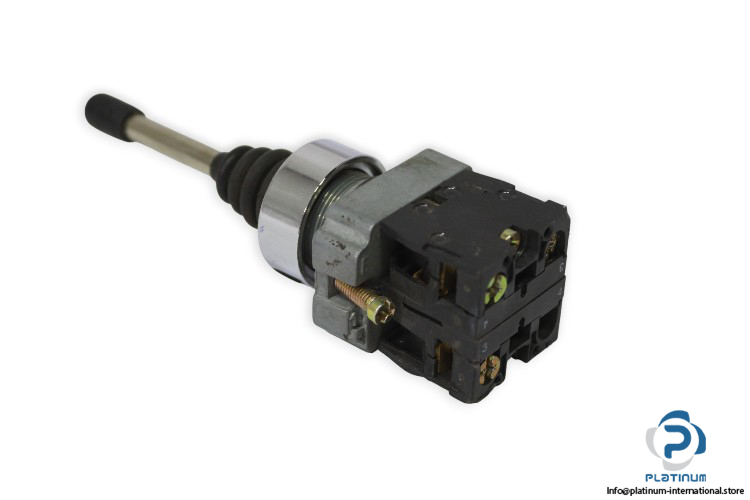

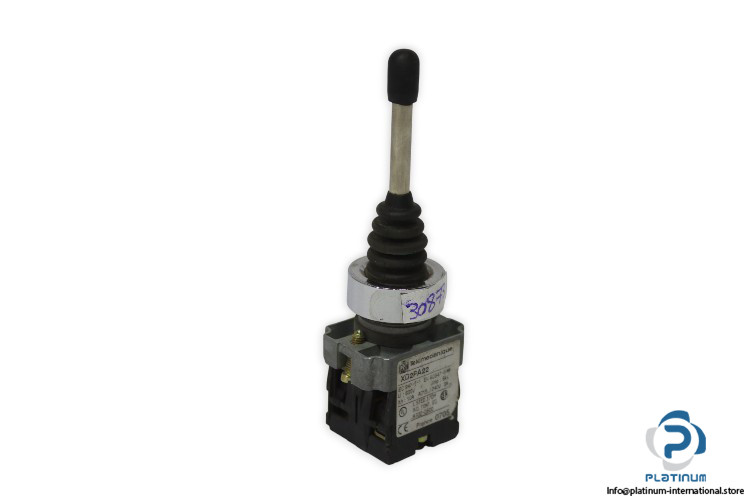

Telemecanique XD2PA22 Joystick Controller
The Telemecanique XD2PA22 Joystick Controller is a durable and precise control device designed for industrial command stations. With a robust metal bezel, reliable contact configuration, and high protection rating, it ensures accurate manual control in demanding environments.
Manufacturer: Telemecanique
Type: Joystick Controller
Model: XD2PA22
| Device Short Name | XD2 |
| Rated Impulse Withstand Voltage Uimp | 6 kV |
| Rated Insulation Voltage Ui | 500 V |
| Rated Operational Current Ie | 0.27 A at 250 V DC-13 / 3 A at 240 V AC-15 |
| Thermal Current | 10 A |
| Mounting Diameter | 22 mm |
| Bezel Material | Chromium Plated Metal |
| Notch Per Direction | 1 |
| Operator Direction | 2 Directions |
| Contacts Type And Composition | 1 NO Time Delayed |
| Operating Temperature | -25 / 70°C |
| Protection Class | IP66 |
| Fixing Center | 30 x 85 mm |
| Height, Depth | 122 mm, 40 mm |
