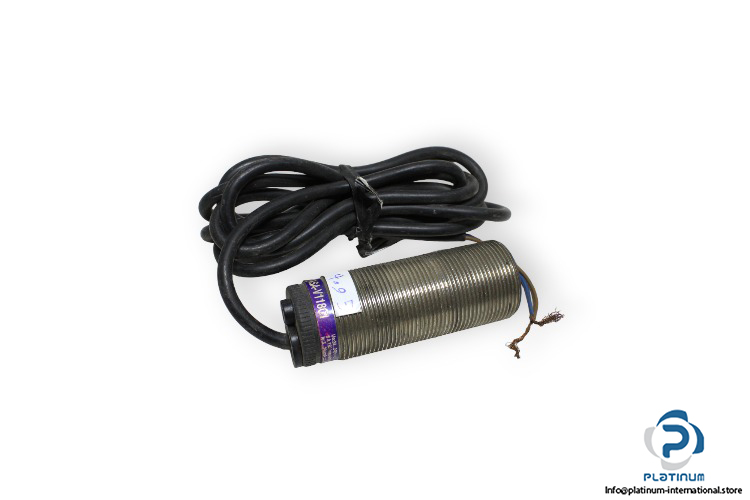

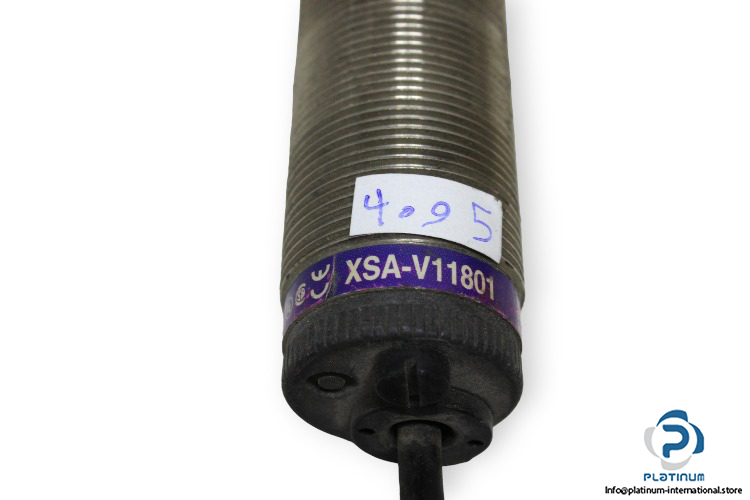

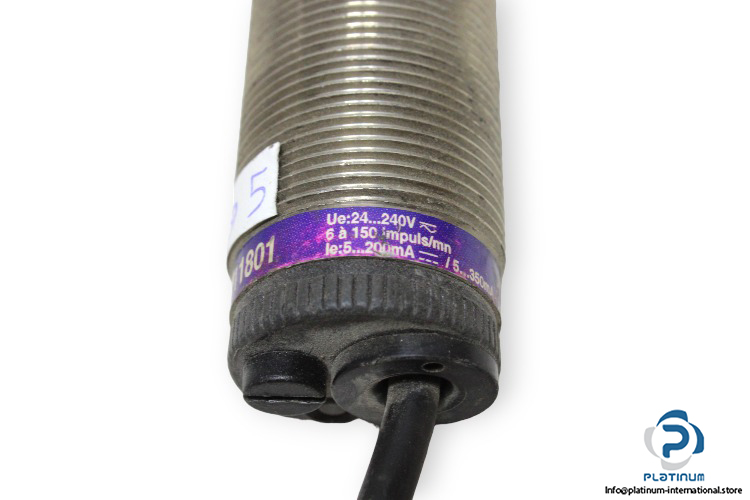

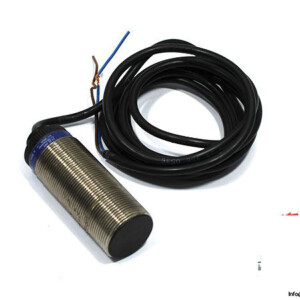

Telemecanique XSA-V11801 Inductive Proximity Sensor

Manufacturer: TELEMECANIQUE SCHNEIDER

Type: Inductive Sensor

Model: XSAV11801

Sensing Range: 10 mm

Operating Voltage: 24 … 240 V AC/DC

Operating Current: 5 … 200 mA DC / 5 … 350 mA AC

Maximum Voltage Drop: < 5.7 V

Switching Frequency: <= 100 Hz

Discrete Output Function: Normally Closed

Sensor Design: Cylindrical M30

Connector Type: Cable 2 m, 2-Wire

Enclosure Rating: IP67

Ambient Operating Temperature: –25 … 70 °C

Diameter, Length: 30, 81 mm

Body Type: Fixed

Housing Material: Metal

Enclosure Material: Nickel Plated Brass

Mounting: Flush-Mountable
