Telemecanique XX930A1A1M12 Ultrasonic Diffuse Sensor
Gebraucht
Auf Lager1 EinheitVersandbereit
Ultraschall-Diffusor-Sensor Der Telemecanique XX930A1A1M12 Ultraschall-Diffusor-Sensor bietet eine präzise 1 m Bereichserkennung mit 0–10 V Analogausgang, IP67 Schutz und einem robusten Kunststoffgehäuse für Industrieanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

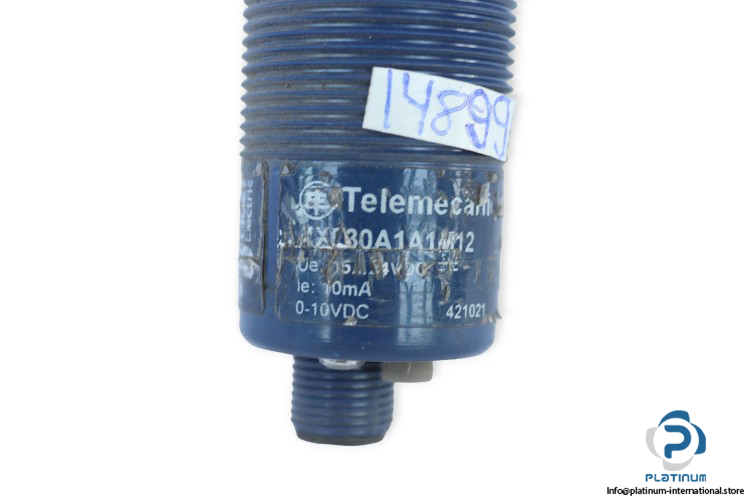

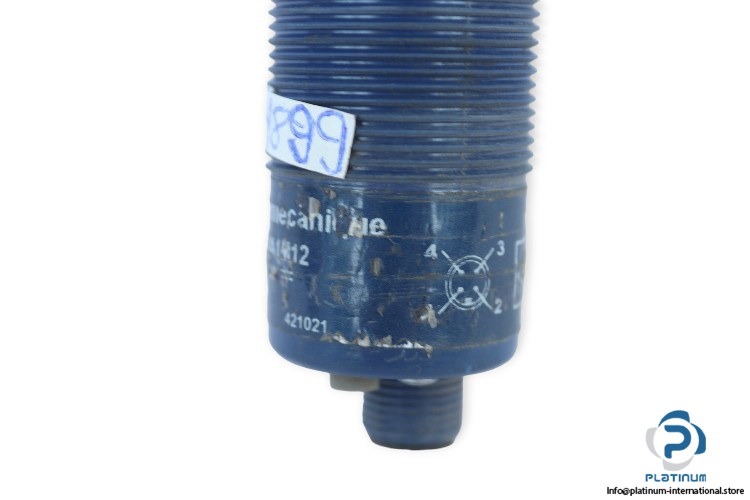

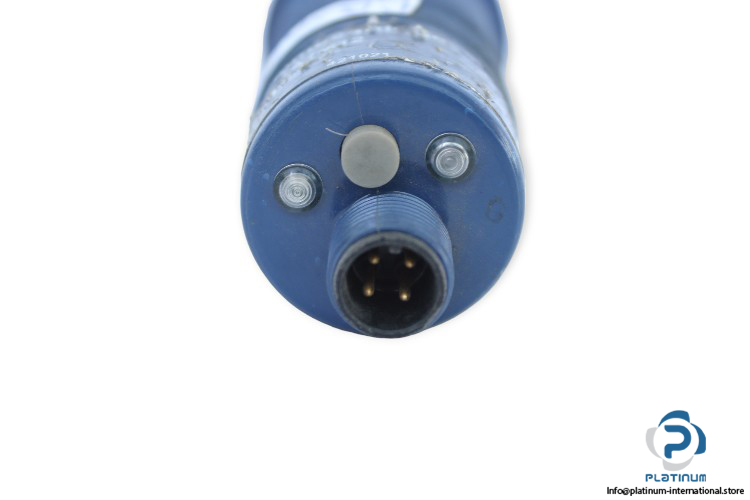

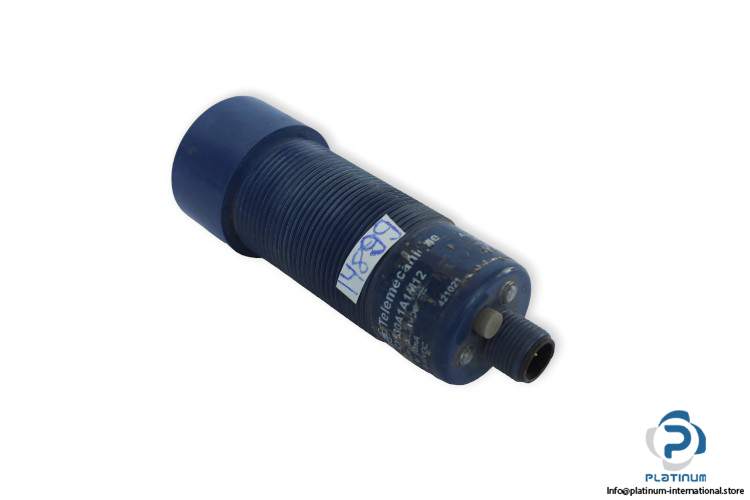

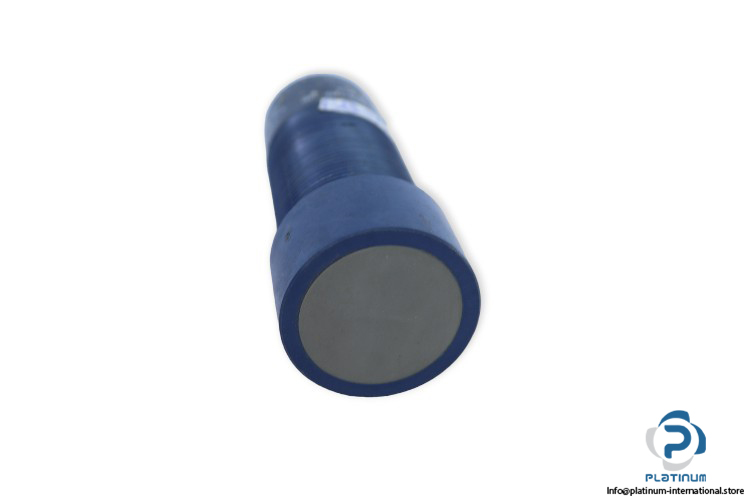

Telemecanique XX930A1A1M12 Ultrasonic Diffuse Sensor
The Telemecanique XX930A1A1M12 Ultrasonic Diffuse Sensor provides accurate and contactless distance detection for industrial automation systems. Designed for precision and durability, it delivers reliable analogue output performance even in challenging environments.
Manufacturer: Telemecanique
Type: Ultrasonic Diffuse Sensor
Model: XX930A1A1M12
| Sensor Name | XX9 |
| Sensing Range | 1 m |
| Thread Type | M30 x 1.5 |
| Operating Voltage | 15 … 24 V DC |
| Current Consumption | 60 mA |
| Output Signal Type | Analogue |
| Analogue Output | 0 ... 10 V |
| Electrical Connection | M12x1 Male Connector, 4-Pin |
| Beam Angle | 10° |
| Housing Material | Plastic |
| Length, Diameter | 95, 30 mm |
| Protection Class | IP67 |
| Temperature | -20 … 60 °C |
