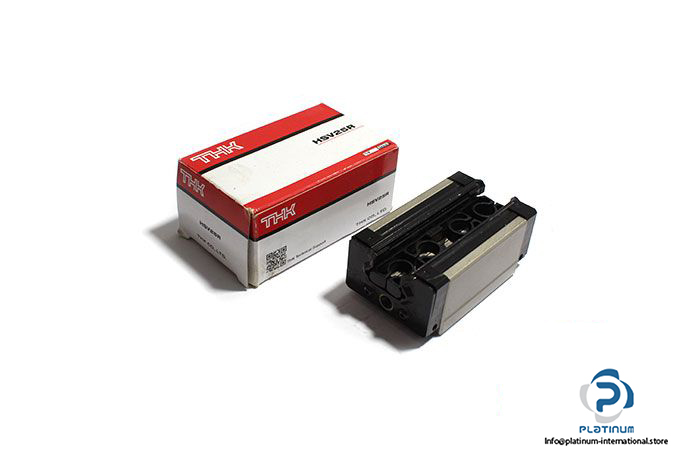

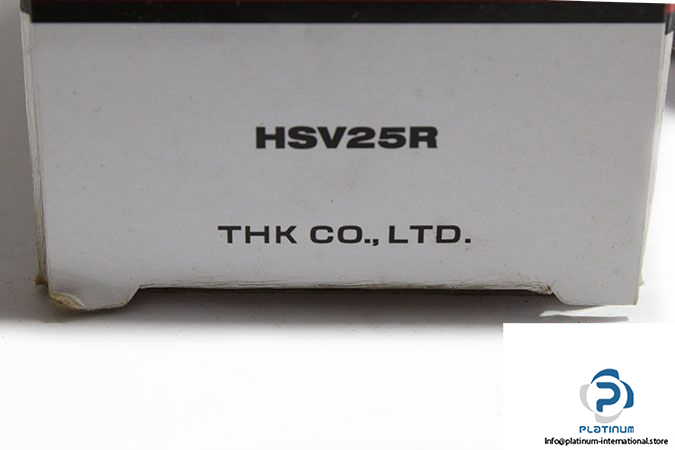

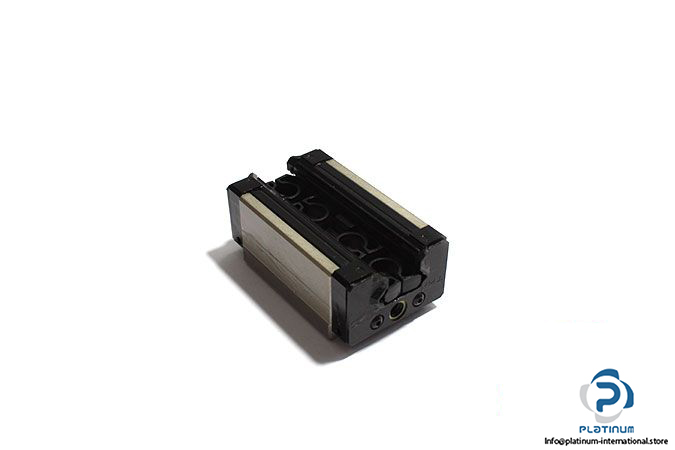

THK HSV25R Linear Guideway Block
Neu
Auf Anfrage verfügbar
119,99$
Linear Guideway Block The THK HSV 25 R linear guideway block delivers smooth, precise linear motion with high load capacity, making it ideal for CNC machinery, automation systems, and industrial motion control applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

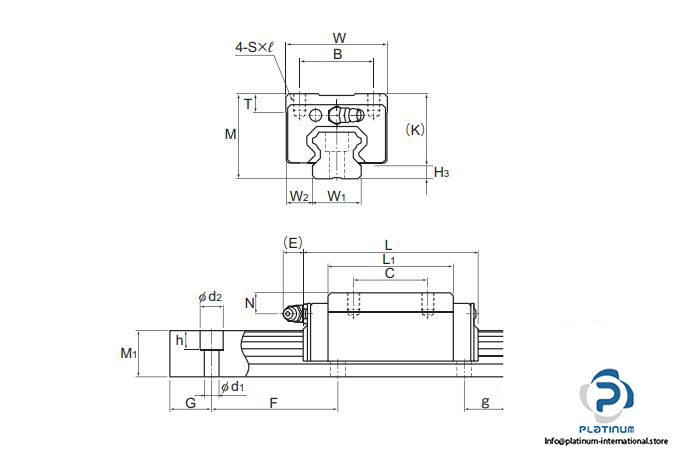

| Size | 25 |
| Length L | 83.1 mm |
| Width W | 48 mm |
| Height of Block K | 33.5 mm |
| Height of System M | 40 mm |
| B | 35 mm |
| C | 35 mm |
| Mounting Hole | 4 through holes |
| Dynamic Load rating | 19.9 kN |
| Static Load rating | 34.4 kN |
| Note | We also provide the corresponding rails (guideways) in a wide range of lengths - please ask us if you need rails to match your bearing |
| Condition | New |
| SKU | 988644 |
| Weight | 0,75 |
