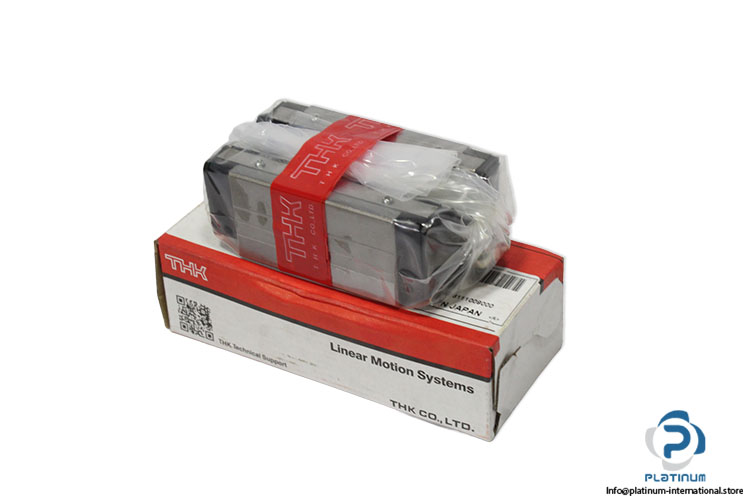

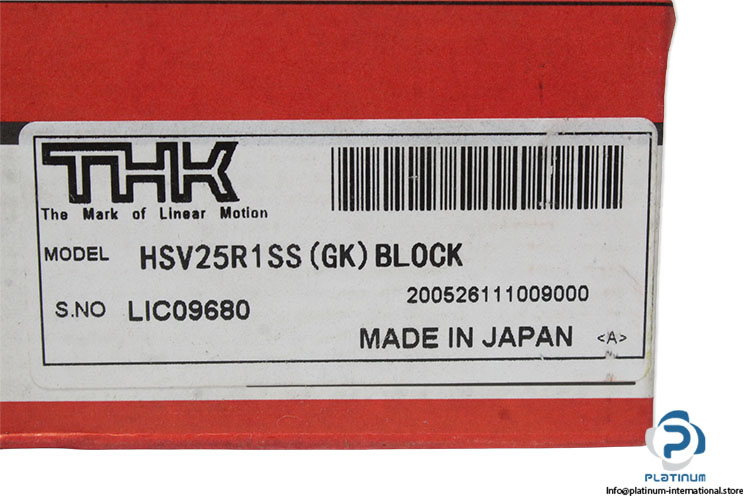

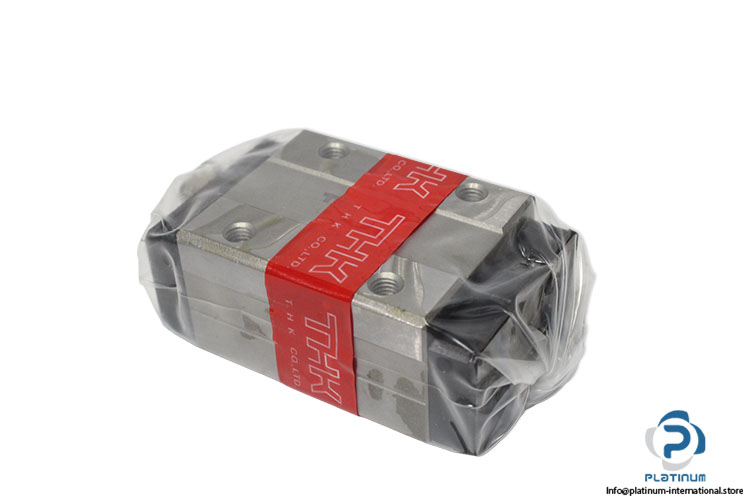

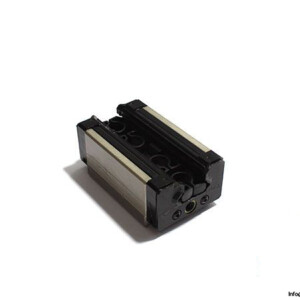

THK HSV25R1SS Linear Guideway Block
Neu
Auf Lager12 EinheitenVersandbereit
Linear Guideway Block The THK HSV25R1SS linear guideway block provides precise linear motion, high rigidity, and reliable load handling for industrial automation, CNC machinery, and motion control applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

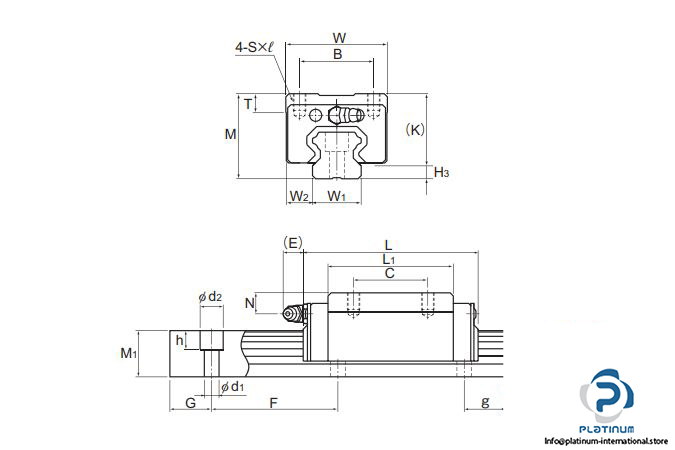

| Size | 25 |
| Length L | 83.1 mm |
| Width W | 48 mm |
| Height of Block K | 33.5 mm |
| Height of System M | 40 mm |
| B | 35 mm |
| C | 35 mm |
| Mounting Hole | 4 through holes |
| Dynamic Load rating | 19.9 kN |
| Static Load rating | 34.4 kN |
| Note | We also provide the corresponding rails (guideways) in a wide range of lengths - please ask us if you need rails to match your bearing |
| Condition | New |
| Stock Key | CH001 |
| SKU | 1098010 |
| Weight | 0,60 |
