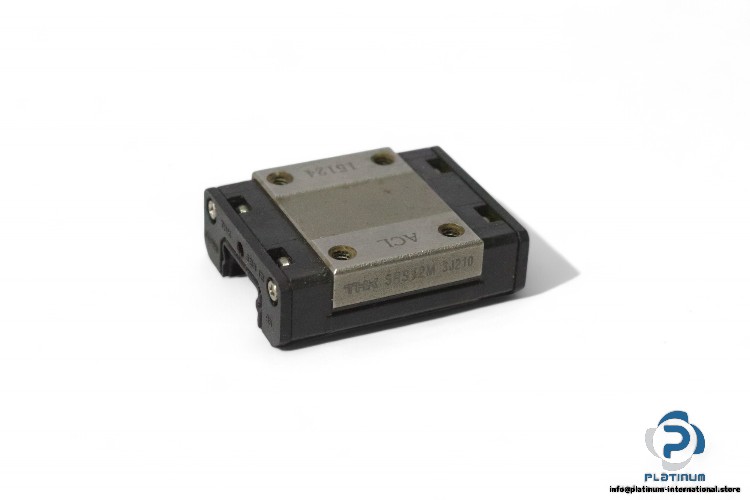

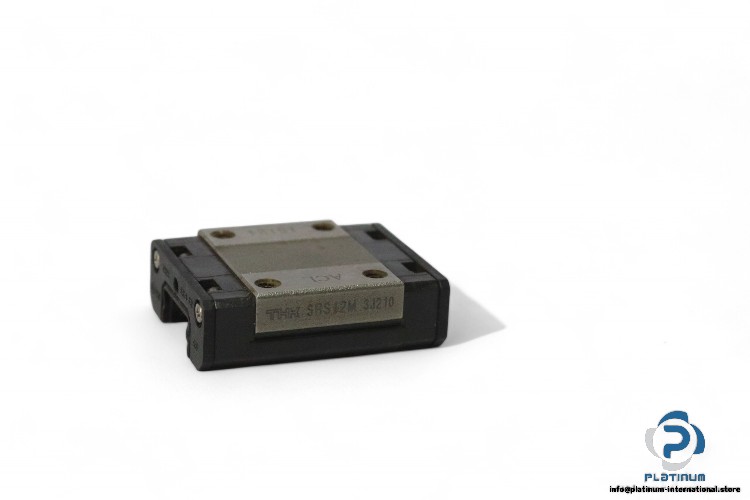

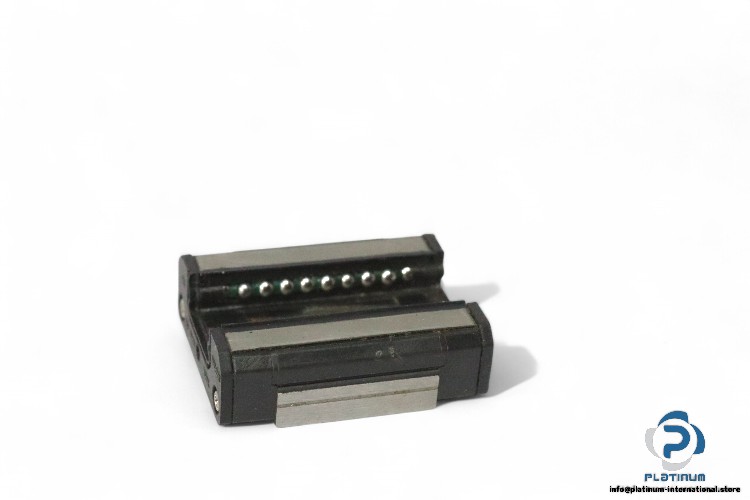

THK SRS12M Linear Bearing Block

Manufacturer: THK
Type: LINEAR BEARING BLOCK
Model: SRS 12 M

Size: 12 mm

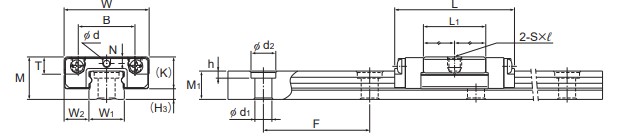

Dimensions
Total Height M: 13 mm
Block Height K: 11 mm
Block Width W: 27 mm
Block Length L: 34.4 mm
L₁: 20.6 mm
B: 20 mm
C: 15 mm
Block Type: Standard Type
Mounting Hole: 4 through holes
Basic Load Ratings:
Dynamic C: 4 kN
Static C₀: 3.53 kN
Rail length max: 2000 mm
