Sensors & Measurement Sensors

Tippkemper IRL-25-S Light Barrier

Name: TIPPKEMPER IRL-25-S LIGHT BARRIER
SKU: 1086820
Availability: LimitedAvailability

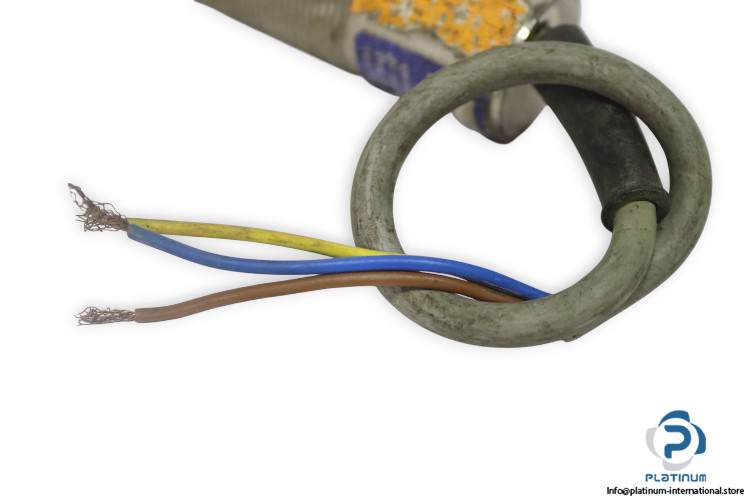

tippkemper-IRL-25-S-light-barrier-used-1

tippkemper-IRL-25-S-light-barrier-used-2

tippkemper-IRL-25-S-light-barrier-used-3

tippkemper-IRL-25-S-light-barrier-used-4

Gebraucht

Auf Lager1 EinheitVersandbereit

LIGHT BARRIER EMITTER

Tippkemper IRL-25-S is an infrared light barrier emitter with 25 m operating distance, 5 ms response time, 24 V supply, IP65 protection, and robust nickel-plated brass housing.

Hersteller

TIPPKEMPER

SKU

1086820

Kategorie

Sensors

Zustand

Gebraucht

25 880 Automation Barrier brass Emitter Industrial infrared IP65 IRL-25-S Light M Nickel Nm Output Plated Push-Pull Sensor Tippkemper

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

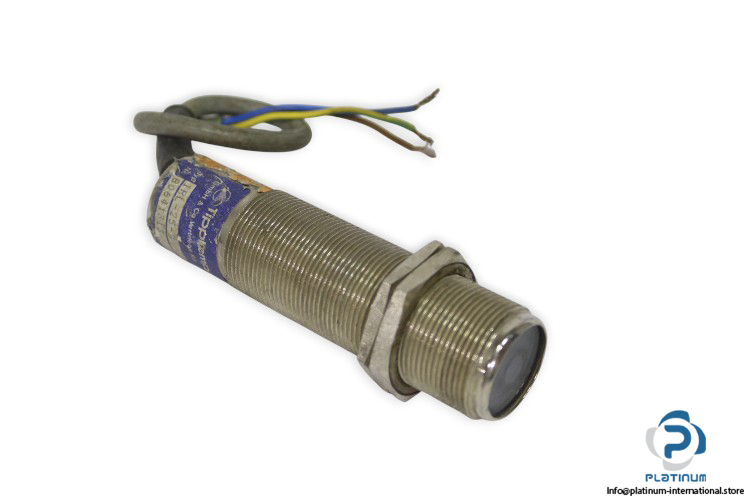

Tippkemper IRL-25-S Light Barrier (Emitter)

The Tippkemper IRL-25-S is a high-quality light barrier emitter designed for precise detection in industrial automation. With infrared sensing, durable housing, and robust protection, it ensures reliable performance in challenging environments.

Manufacturer: Tippkemper

Type: Light Barrier (Emitter)

Model: IRL-25-S

Part No.: B0641313

Voltage	24 V
Current	40 mA
Sensor Length	155 mm
Operating Distance	25 m
Response Time	5 ms
Light Source	Infrared, 880 nm
Maximum Power Dissipation Emitter	1.12 W
Output	Push-Pull, maximum 100 mA, short circuit protected
Housing	M30, yellow brass, nickel plated
Operating Temperature	-20 °C to +50 °C
Enclosure Rating	IP65
