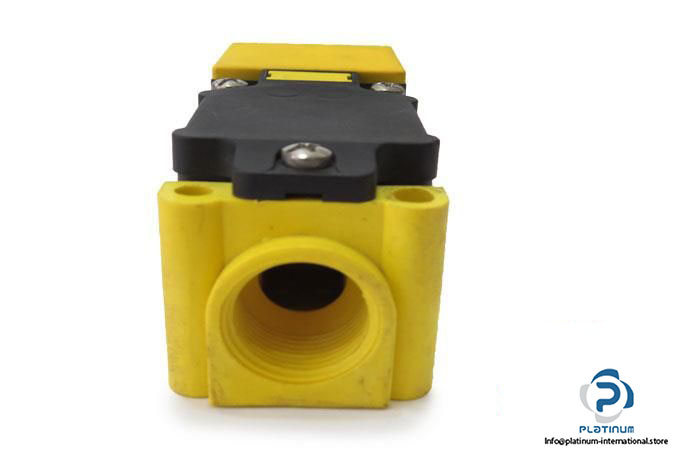

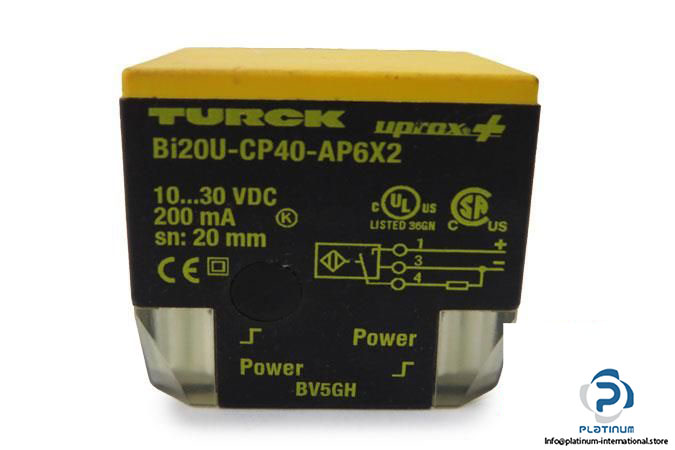

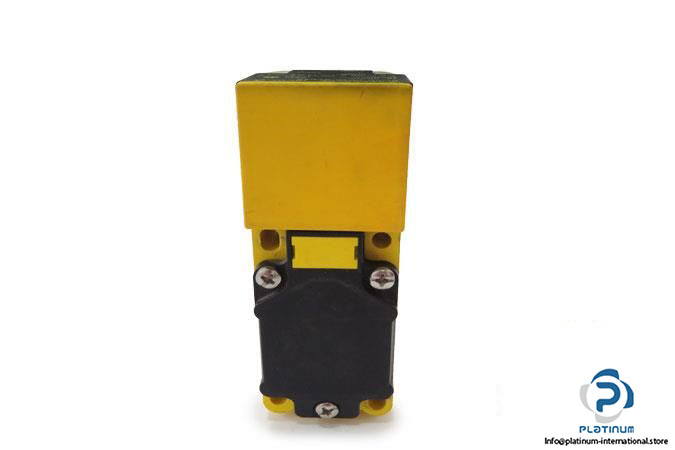

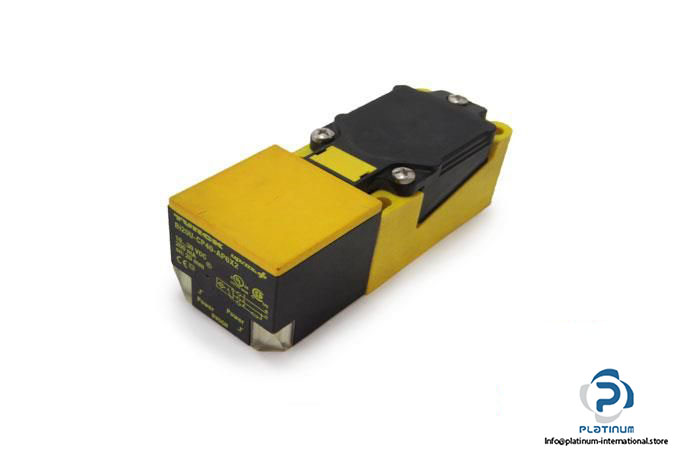

Turck BI20U-CP40-AP6X2 Inductive Sensor

Manufacturer: TURCK

Type: INDUCTIVE SENSOR

Model: BI20U-CP40-AP6X2

Sensing Range: 20 mm

Operating Distance: ≤ 16.2 mm

Operating Voltage: 10 … 30 V DC

Switching Frequency:  250 Hz

Switching Output Current: 200 mA DC

Electrical Design: PNP

Output Function: Normally open

Connector Type: Cable gland M20 X 1.5

Protection Class: II

Enclosure Rating: IP68

Housing: Rectangular

Ambient Operating Temperature:  -30 … +85°C

Dimensions: 114 X 40 X 40 mm

Material: PBT

Mounting: flush mountable

Weight: 201 g
