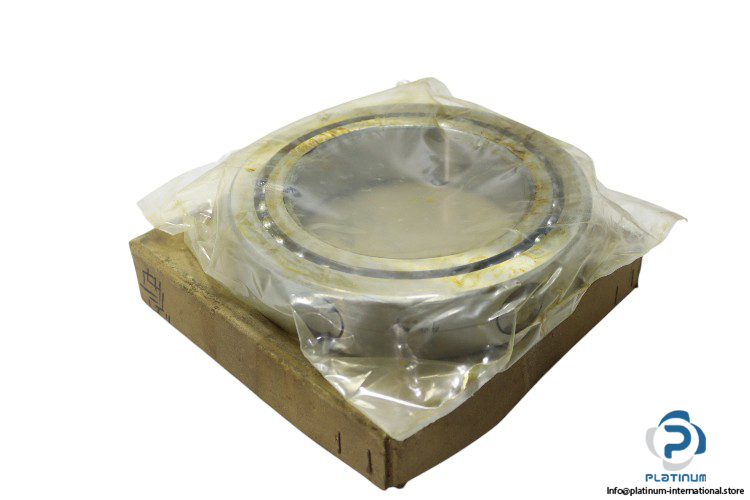

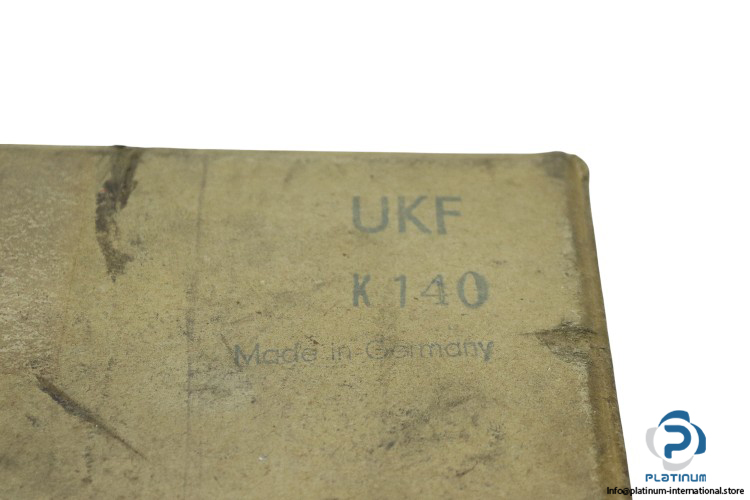

UKF K 140 Angular Contact Precision Bearing With Spacer Ball
Neu
Auf Lager1 EinheitVersandbereit
Winkelkontaktlager Hochpräzises UKF-Lager mit 140 mm Bohrung, 210 mm Außendurchmesser und 16° Kontaktwinkel, ausgelegt für axiale/radiale Belastungsleistung bis zu 1200 U/min mit Ölschmierung.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
UKF K 140 ANGULAR CONTACT PRECISION BEARING
The UKF K 140 is a high-precision angular contact bearing with a spacer ball, designed for demanding applications that require exceptional axial and radial load capacity. Engineered for reliability, it operates efficiently under high-speed conditions using either oil or grease lubrication.
Manufacturer: UKF
Type: Angular Contact Precision Bearings with Spacer Ball
Model: K 140
| Bore Diameter d | 140 mm |
| Outer Diameter D | 210 mm |
| Width | 42 mm |
| Contact Angle | 16° |
| Dynamic Load Rating | 201000 N |
| Static Load Rating | 164000 N |
| Speed Limit (Oil Lubrication) | 1200 RPM |
| Speed Limit (Grease Lubrication) | 1000 RPM |
