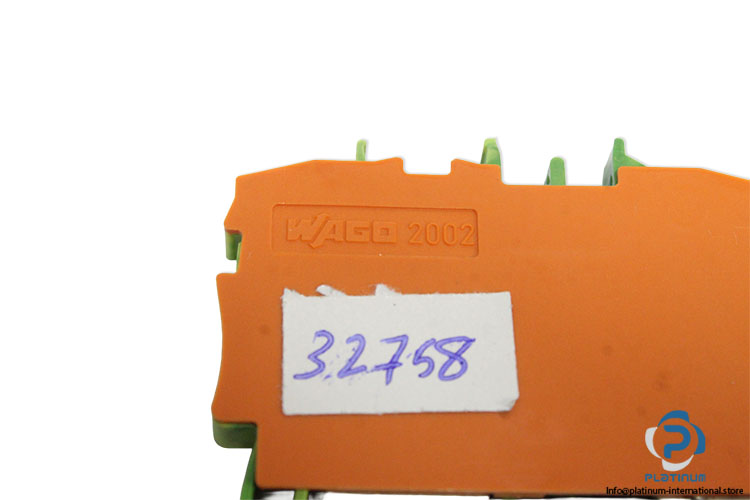

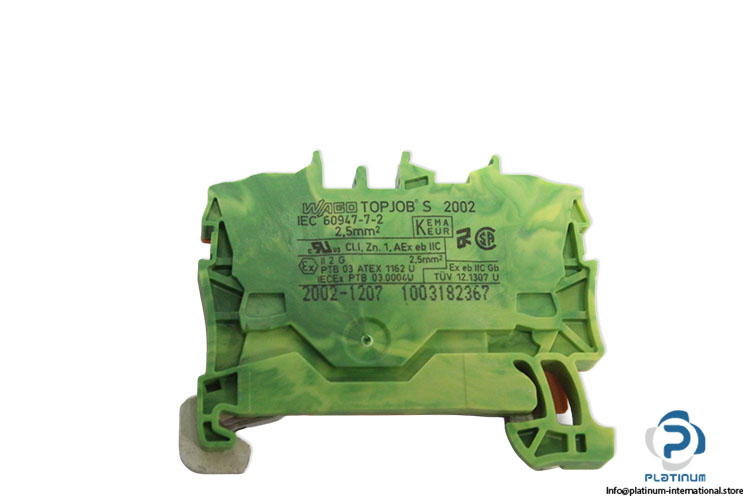

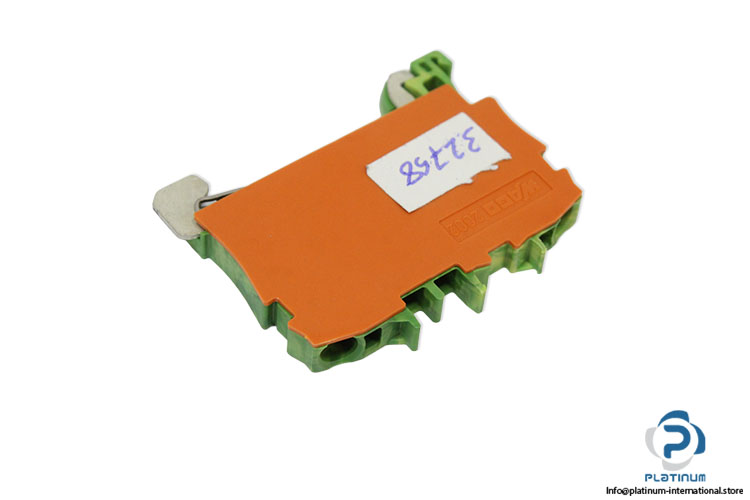

Wago 2002-1207 Terminal Block
Neu
Auf Lager1 EinheitVersandbereit
WAGO 2-Conductor Ground Terminal Block WAGO 2002-1207 ground terminal block from the TOPJOB’S 2002 family, designed for secure DIN rail mounting, reliable conductor connection, and industrial electrical distribution applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 1003182367 |
| family | TOPJOB'S 2002 |
| Clamping units | 2 |
| Total number of potentials | 1 |
| Number of levels | 1 |
| Number of jumper slots | 2 |
| Width | 5.2 mm / 0.205 inches |
| Height | 50.8 mm / 2 inches |
| Depth from upper-edge of DIN-rail | 32.9 mm / 1.295 inches |
| Mounting type | DIN-35 rail |
| Marking level | Center/side marking |
| Insulation material (main housing) | Polyamide (PA66) |
| Processing temperature | -35 … +85 °C |
| Nominal cross-section | 2.5 mm² |
| Solid conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Explosion proof | II 2G |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099235 |
| Weight | 0,01 |
