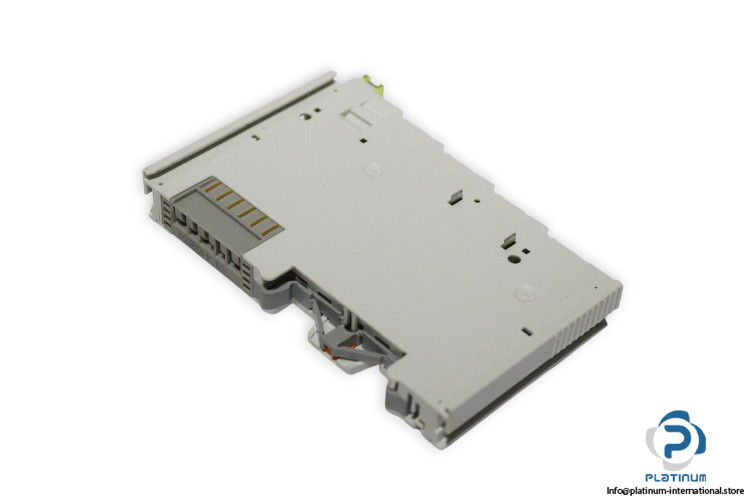

Wago 750-403 4-CHANNEL Digital Input
Gebraucht
Auf Lager13 EinheitenVersandbereit
Digital Input Module
WAGO 750-403 4-channel digital input module with 24 VDC signal voltage, high-side switching, 0.2 ms filter, and compact housing for reliable industrial automation.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

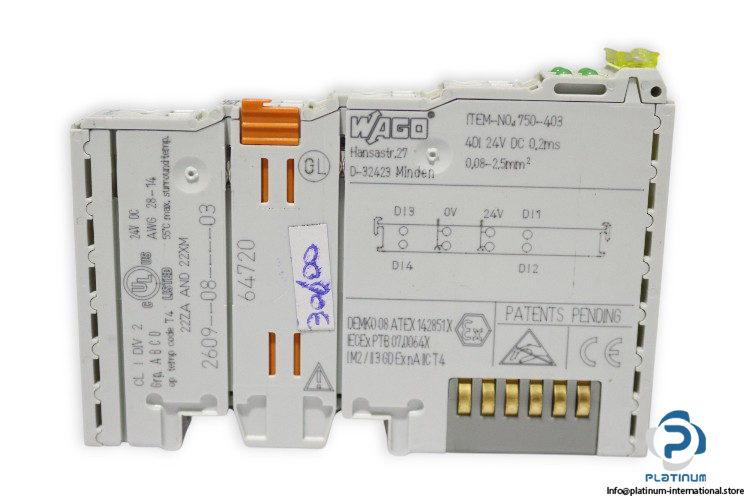

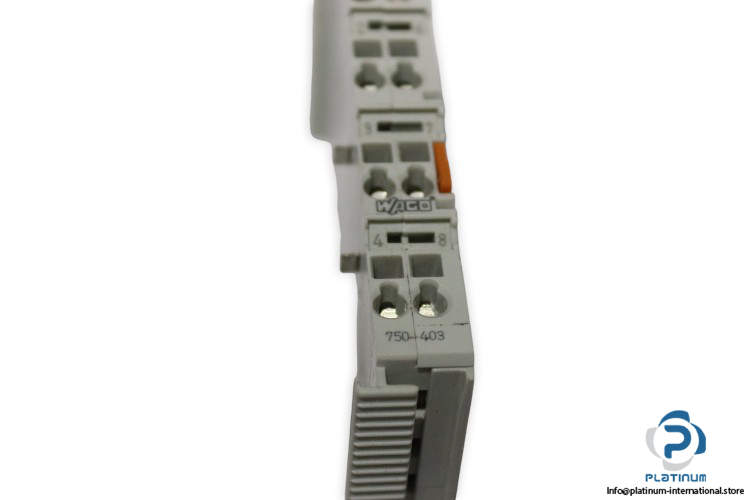

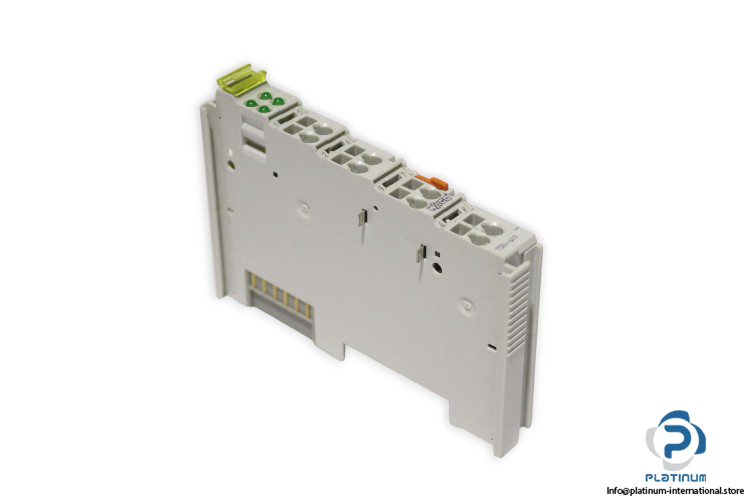

WAGO 750-403 4-Channel Digital Input
The WAGO 750-403 is a reliable 4-channel digital input module designed for precise signal processing in industrial automation. With a compact design, robust housing, and high compatibility, it ensures stable performance in demanding environments.
Manufacturer: WAGO
Type: 4-Channel Digital Input
Model: 750-403
Ref No.: 2609 08 03 / 64720 / CL I DIV 2
| Number of Digital Inputs | 4 |
| Total Number of Channels (Module) | 4 |
| Signal Type | Digital |
| Signal Type (Voltage) | 24 VDC |
| Sensor Connection | 2 x (2-wire, 3-wire); requires suitable field side module (e.g., 750-614) |
| Input Characteristic | High-side switching |
| Input Filter | 0.2 ms |
| Input Current per Channel for Signal (1) typ. | 4.5 mA |
| Voltage Range for Signal (0) | ˆ’3 / +5 VDC |
| Voltage Range for Signal (1) | 15 / 30 VDC |
| Sensor Supply | 24 VDC |
| Number of Incoming Power Jumper Contacts | 2 |
| Number of Outgoing Power Jumper Contacts | 2 |
| Current Carrying Capacity (Power Jumper Contacts) | 10 A |
| Dimensions | 12 x 100 x 69 mm |
| Housing Material | Polycarbonate; Polyamide 6.6 |
