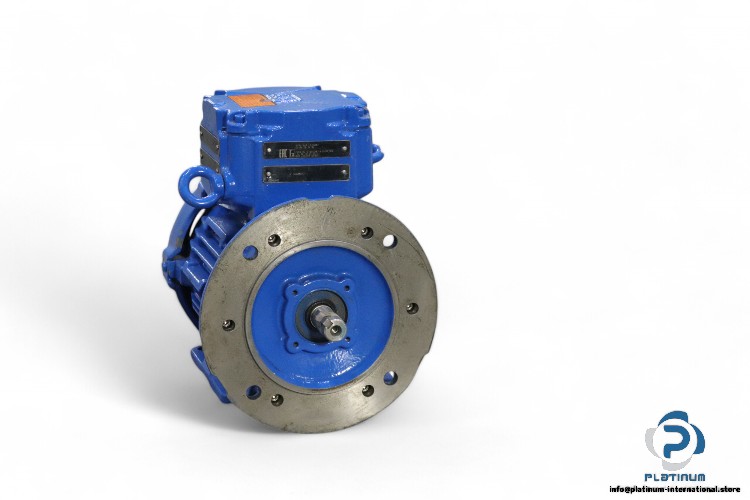

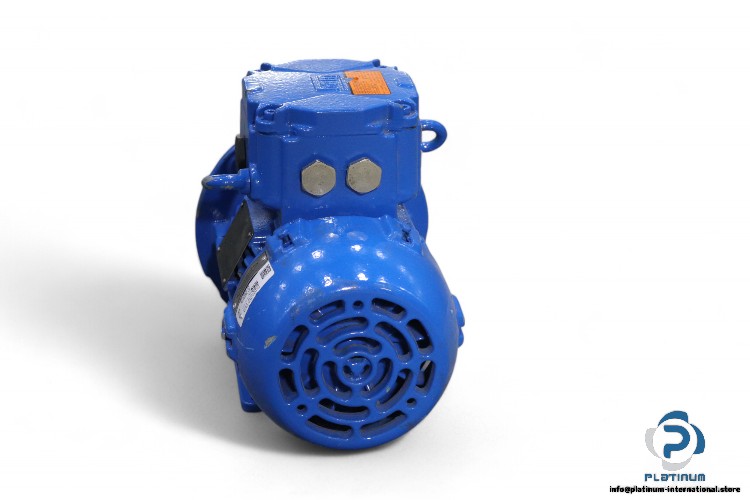

WEG 80-04 3-PHASE Electric Motor
WEG 3-PHASE Electric Motor 80-04
The WEG 3-Phase Electric Motor 80-04 is designed for high-efficiency operation with explosion protection features, providing reliable performance in hazardous environments. With a rated power of 0.55 kW, a speed of 1730 RPM, and protection class IP56, it ensures robust and safe operation under various industrial conditions.
Manufacturer: WEG
Type: 3-PHASE Electric Motor
Model: 80-04

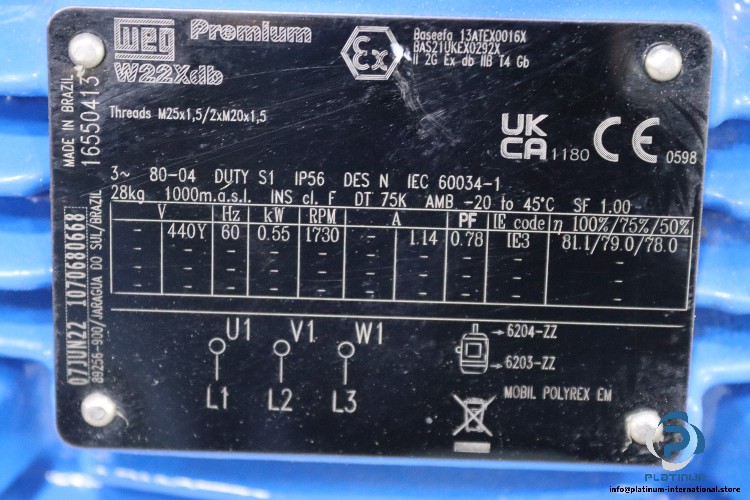

Technical Specifications
- Explosion Protection: II 2G Ex db IIB T4 Gb (Ex)
- Frame: 80
- Rated Voltage [V]: 440Y
- Rated Speed: 1730 RPM
- Rated Frequency: 60 Hz
- Rated Power: 0.55 kW
- Power Factor: 0.78
- Rated Current: 1.14 A
- Insulation Class: F
- Protection: IP56
- Duty: S1
- Ambient Temperature: -20 to 45 °C
