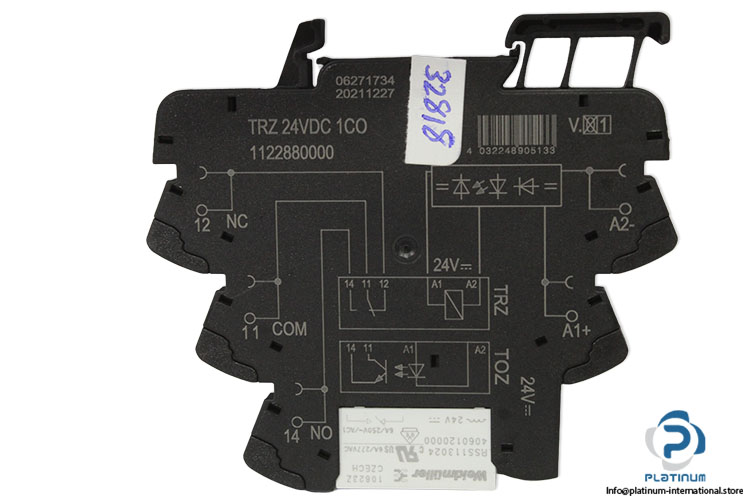

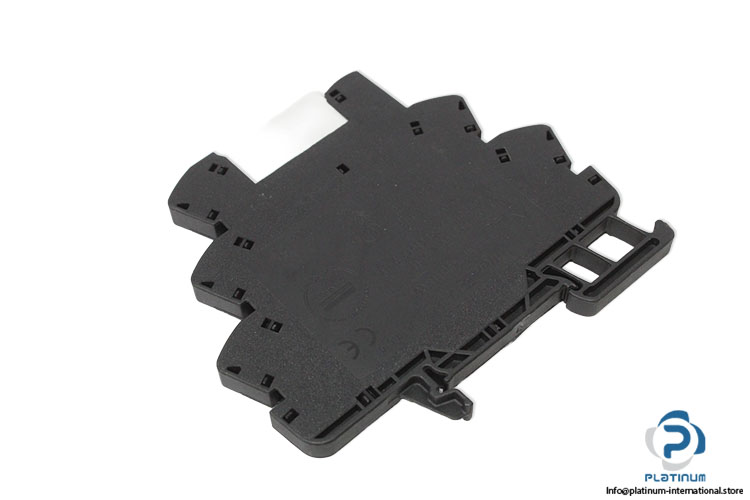

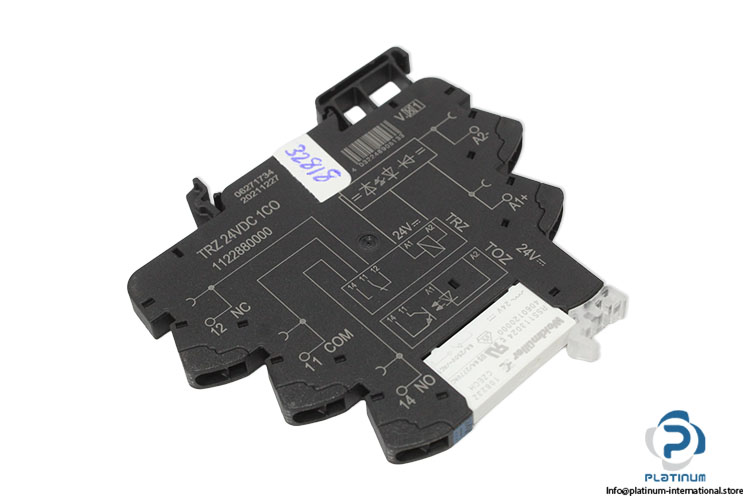

Weidmueller TRZ 24VDC 1CO Relay Module
Neu
Auf Lager1 EinheitVersandbereit
Relay Coupler Module Weidmueller relay coupler module with 24 V DC control voltage, 6 A continuous current, green LED status display, and compact IP20 design for industrial automation applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| EAN | 4060120000 |
| SN | 4 032248905133 |
| Ref No | 06271734/ 20211227 |
| Nominal control voltage | 24 V DC ±20 % |
| Rated current DC | 11.5 mA |
| Rated power | 280 mW |
| Status display | green LED |
| Rated switching voltage | 250 V AC |
| Continuous current | 6 A |
| Maximum switching frequency at rated load | 0.1 Hz |
| Number of contacts | 1 |
| Changeover contact | AgNi |
| Certificate No. (cULus) | E141197 |
| Depth | 87.8 mm |
| Height | 90.5 mm |
| Width | 6.4 mm |
| Ambient temperature | -40 °C…60 °C |
| type of conductor | rigid copper conductors, stranded |
| Protection class | IP20 |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099275 |
| Weight | 0,03 |
