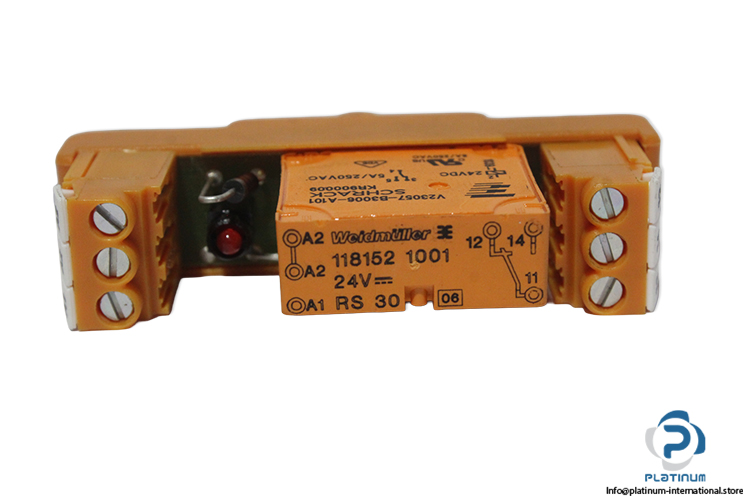

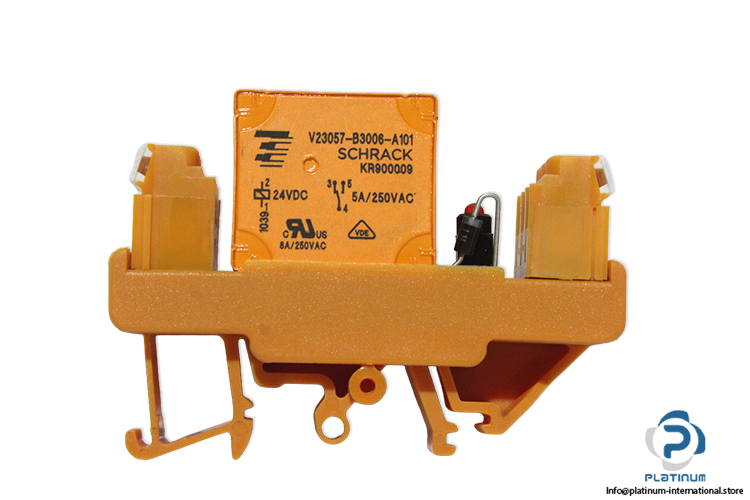

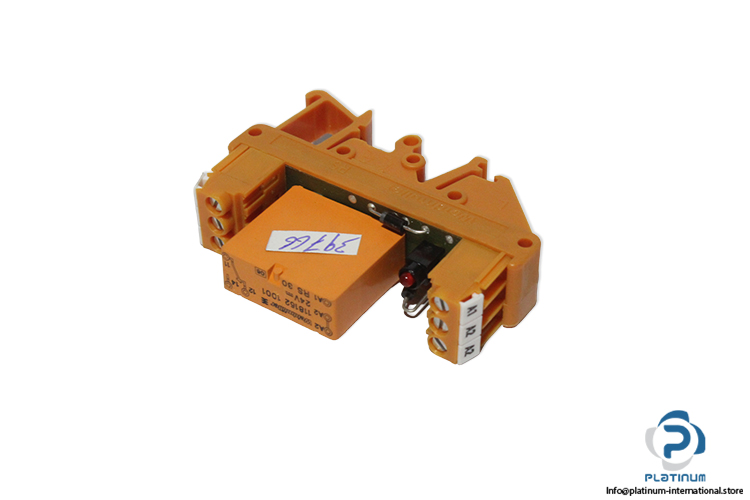

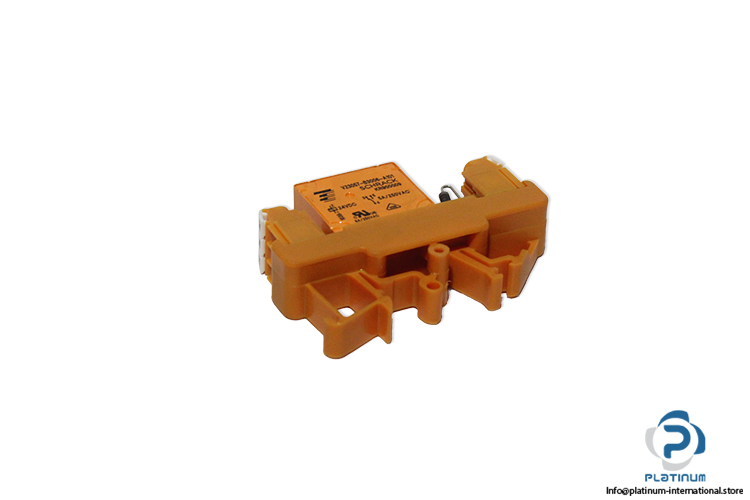

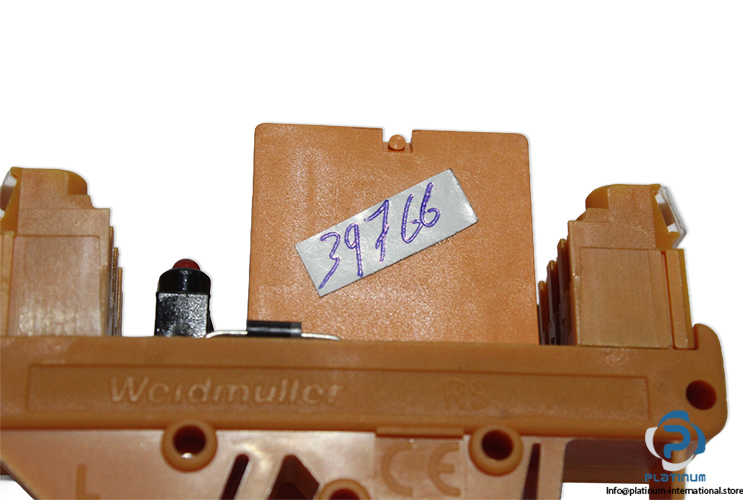

Weidmüller 118152 1001 Relay Module
Neu
Auf Lager1 EinheitVersandbereit
Relay Module Weidmüller relay module with 24 V DC control voltage, 250 V AC switching voltage, 2000 VA maximum switching capacity, and screw connection for industrial control applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Rated control voltage | 24 V DC ±10 % |
| Rated switching voltage | 250 V AC |
| switching capacity | max. 2000 VA |
| Impulse withstands voltage | 4 kV |
| Rated current DC | 10 mA |
| Inrush current | 8 A |
| Power | 0.45 W |
| Switch-on delay | max. 8 ms |
| Wire connection method | Screw connection |
| Depth | 56 mm |
| Height | 70 mm |
| Width | 16 mm |
| Operating temperature | -25...40 °C |
| Condition | New |
| Stock key | CON003 |
| SKU | 1094012 |
| Weight | 0,1 |
