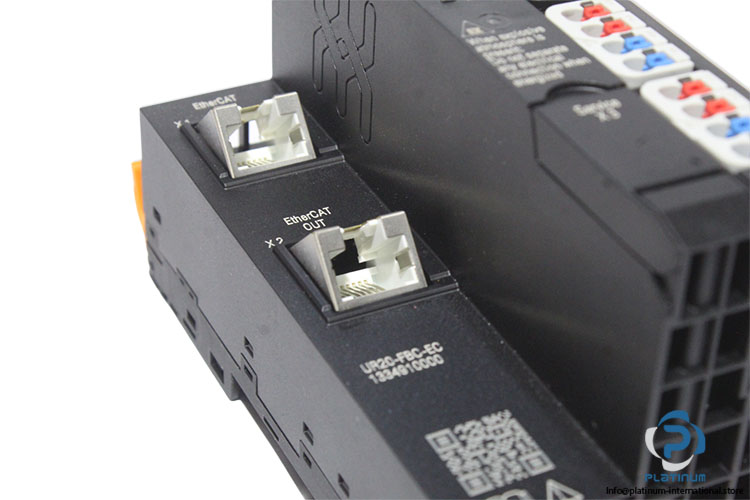

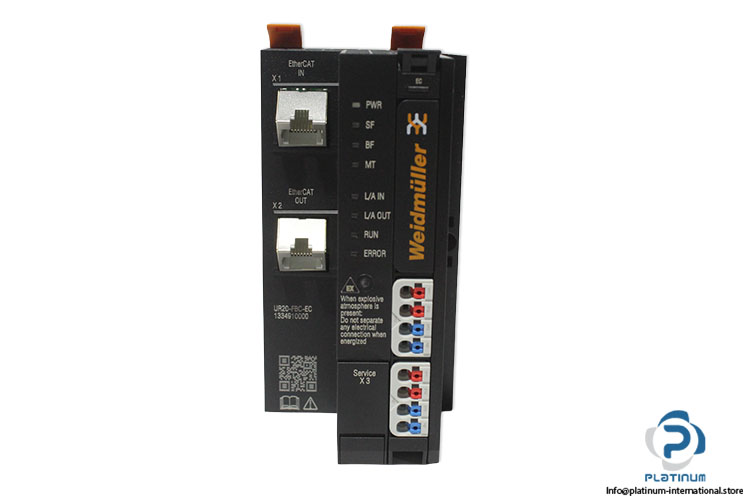

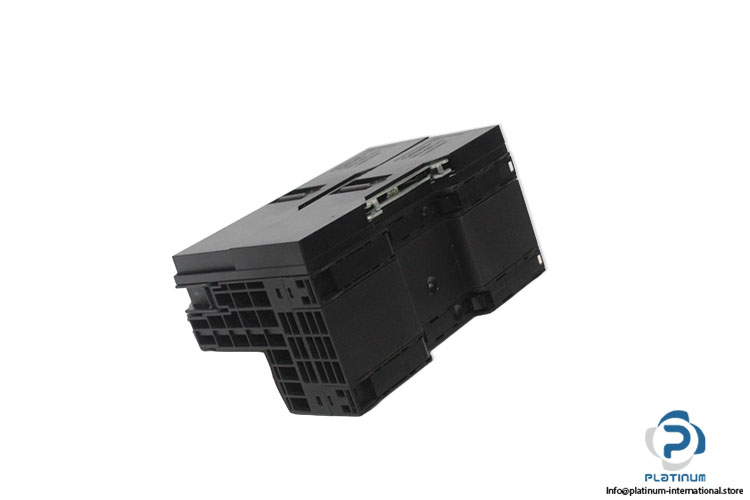

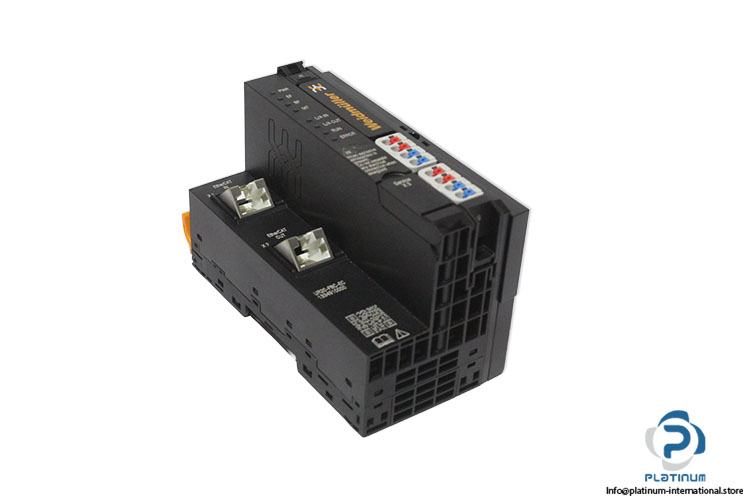

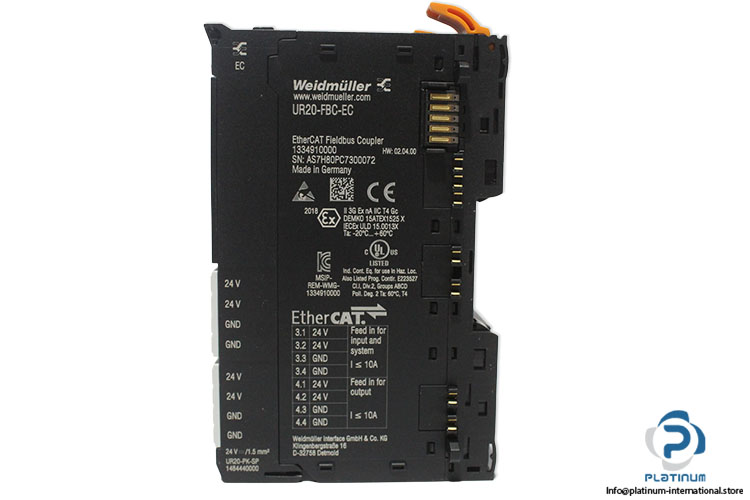

Weidmuller UR20 FBC EC Fieldbus Coupler
Neu
Auf Lager1 EinheitVersandbereit
EtherCAT Fieldbus Coupler The WEIDMULLER UR20-FBC-EC is a 24 V DC EtherCAT fieldbus coupler designed for fast communication and reliable integration of u-remote I/O modules in industrial automation systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

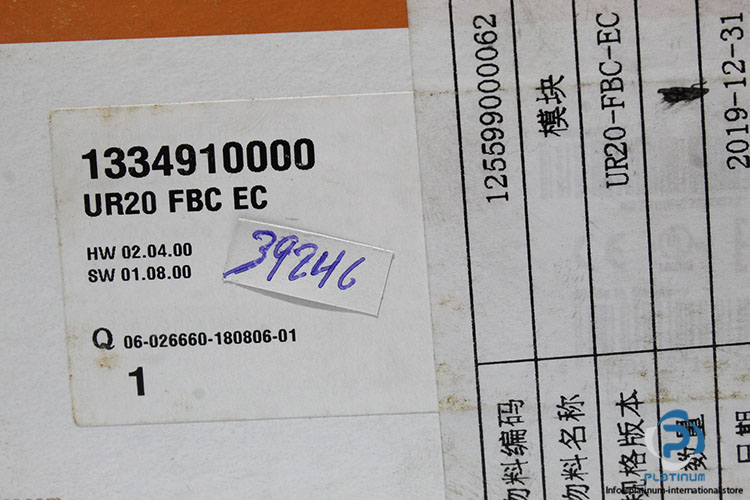

| Part No. | 1334910000 |
| HW | 02.04.00 |
| SW | 01.08.00 |
| Ref No | 06-026660-180806-01 |
| Voltage Supply | 24 V DC |
| Module type | Bus coupler |
| Interface u-remote system bus Process data | 1024 Byte |
| max. number of modules | 64 |
| Configuration interface Micro | USB 2.0 |
| Connection type | 2x RJ45 plug-in connectors |
| Field bus protocol | EtherCAT |
| Transmission rate of field bus, max. | 100 Mbit/s |
| Transmission speed of system bus, max. | 48 Mbit/s |
| Parameter data | 4 kByte |
| Diagnostic data | 3200 Byte |
| Feed Current for the System (Max.) | 4 A |
| Feed Current for IIN (Input Current Path, Max.) | 10 A |
| Operating Temperature | -20 ... 60 °C |
| Dimensions (H x W x D) | 76 x 120 x 52 mm |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100804 |
| Weight | 0,32 |
