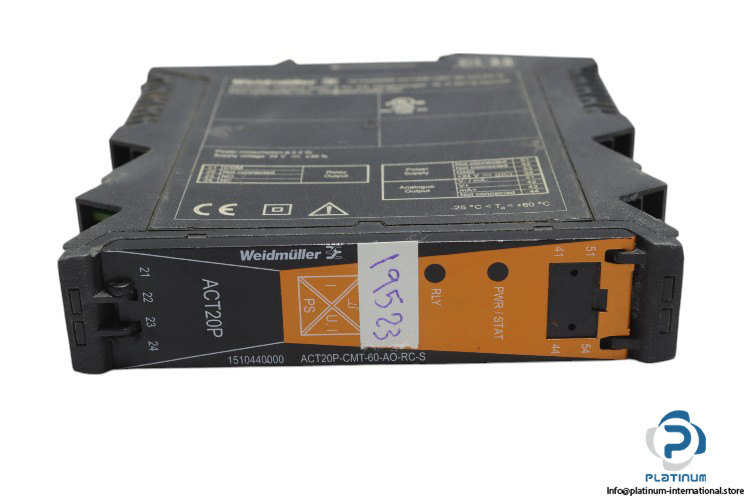

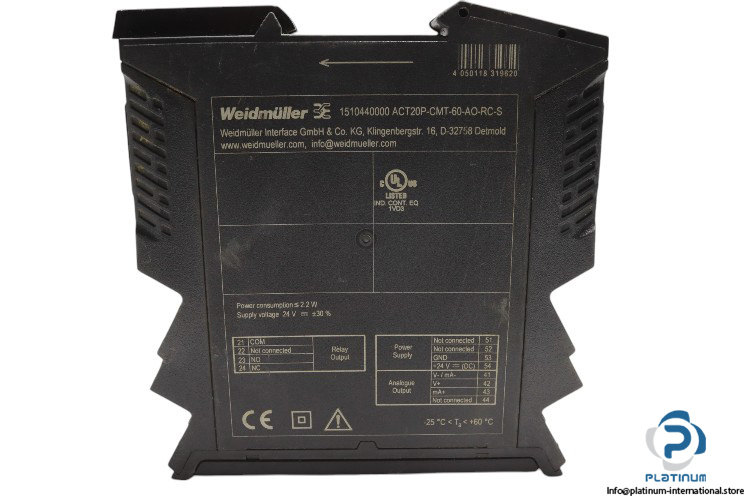

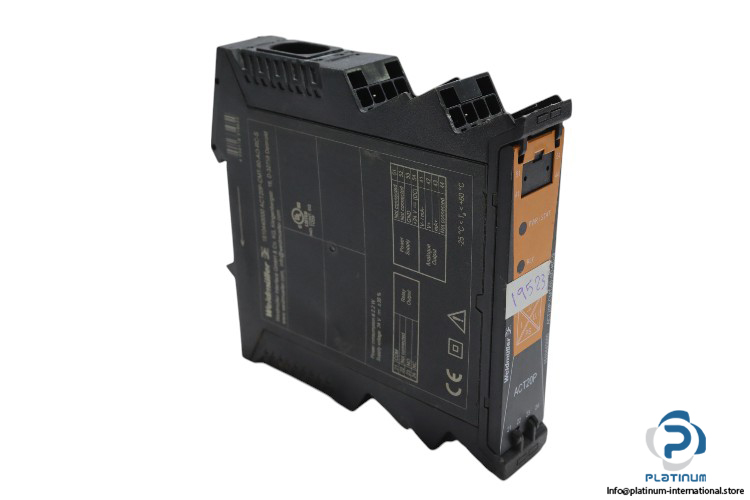

Weidmuller ACT20P Current Measuring Transducer
Strommesswandler Der Weidmuller ACT20P Strommesswandler bietet präzise Stromwandlung mit einer Versorgungsspannung von 20-30 V DC und einem Ausgangsstrom von 0-20 mA oder 4-20 mA. Ideal für industrielle Automatisierungssysteme, gewährleistet er einen zuverlässigen und energieeffizienten Betrieb.
Weidmuller Current Measuring Transducer ACT20P
The Weidmuller Current Measuring Transducer ACT20P is designed for precise current measurement in industrial automation systems. This compact and reliable transducer offers excellent performance for converting current signals into output signals that can be easily integrated into control systems for monitoring and analysis.
With a supply voltage range of 20 to 30 V DC and a current consumption of 60 mA (at 24V power supply and 20mA output), this transducer is highly energy-efficient. It features a screw connection for easy integration into systems and accepts input currents ranging from 0 to 20 mA and 4 to 20 mA. The transducer supports 2-wire or 3-wire transmitter input signals, including HART digital signals, offering flexible application possibilities. The output current can be configured from 0 to 20 mA or 4 to 20 mA with a load impedance of 300 Ω.
Manufacturer: Weidmuller
Type: Current Measuring Transducer
Model: ACT20P
The Weidmuller ACT20P transducer is ideal for converting current signals into a readable output for various industrial applications, ensuring reliability, accuracy, and efficient operation.
| Supply Voltage | 20…30 V DC |
| Current Consumption | 60 mA (24V power supply, 20mA output) |
| Type of Connection | Screw connection |
| Input Current | 0...20 mA, 4…20 mA |
| Number of Inputs | 1 |
| Input Signal | 2-/3-wire transmitter, HART digital signal, Voltage drop: 17V at 20mA |
| Number of Outputs | 2 |
| Output Current | 0...20 mA, 4...20 mA |
| Load Impedance Current | 300 Ω |
| Operating Temperature | -20 °C...60 °C |
| Dimensions (HXWXD) | 117.2 x 12.5 x 113.7 mm |
