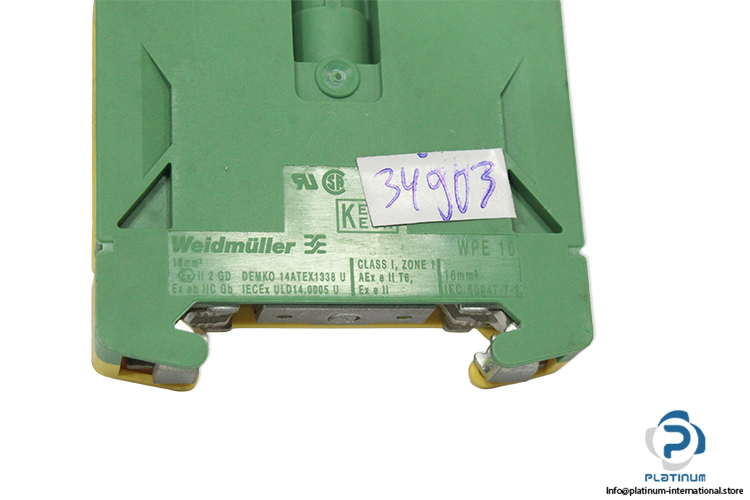

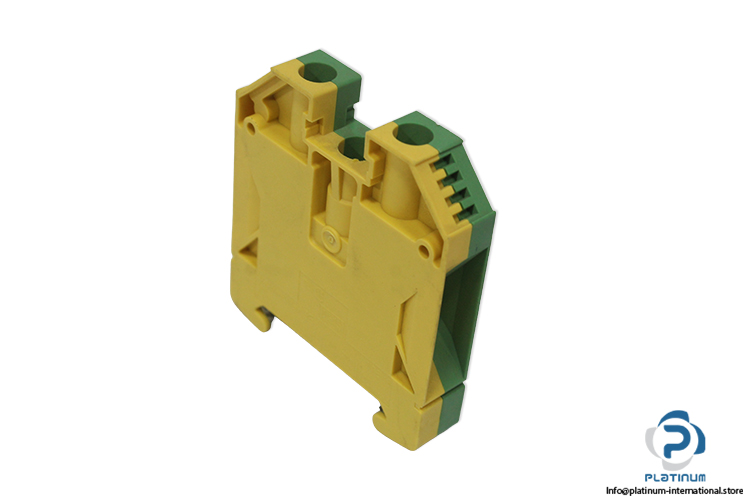

WEIDMULLER WPE 16 Terminal Block
The WEIDMULLER WPE 16 terminal block is a reliable screw-connection grounding terminal designed for secure electrical connections in industrial control panels and distribution systems. Manufactured using Wemid insulating material with a green/yellow protective earth design, it provides dependable PE connection and complies with international electrical safety standards.
Manufacturer: WEIDMULLER
Type: Terminal Block
Model: WPE 16
Order No.: 1010400000
| Version | Screw connection, With PE connection, in closed state |
| Basic Material | Wemid |
| Colour | Green/yellow |
| UL 94 Flammability Rating | V-0 |
| Number Of Potentials | 1 |
| Number Of Levels | 1 |
| Number Of Clamping Points Per Level | 2 |
| Number Of Potentials Per Tier | 1 |
| Blade Size | 1.0 x 5.5 mm |
| Clamping Range, Max. | 25 mm² |
| Clamping Range, Min. | 1.5 mm² |
| Clamping Screw | M 5 |
| TS 35 Offset | 32 mm |
| Standards | IEC 60947-7-2 |
| Wire Connection Cross Section AWG, Max. | AWG 2 |
| Wire Connection Cross Section AWG, Min. | AWG 12 |
| Certificate No. (ATEX) | DEMKO14ATEX1338U |
| Certificate No. (IECEX) | IECEXULD14.0005U |
| Wire Cross Section Max. (ATEX) | 16 mm² |
| Wire Cross Section Max. (IECEX) | 16 mm² |
| Marking EN 60079-7 | Ex eb II C Gb |
| Ex 2014/34/EU Label | II 2 G D |
| Depth | 62.5 mm |
| Height | 56 mm |
| Width | 11.9 mm |
| Ambient Temperature | -60 °C / 85 °C |
