Weidmuller ZDT 2,5/2 Pluggable Terminal Block
Gebraucht
Auf Lager2 EinheitenVersandbereit
Abnehmbarer Anschlussblock WEIDMULLER ZDT 2,5/2 abnehmbarer Anschlussblock aus der Z-Serie mit Spannklemmen, Aufsteckmontage und V-0 Flammbarkeitsklassifizierung für industrielle Schalttafeln.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

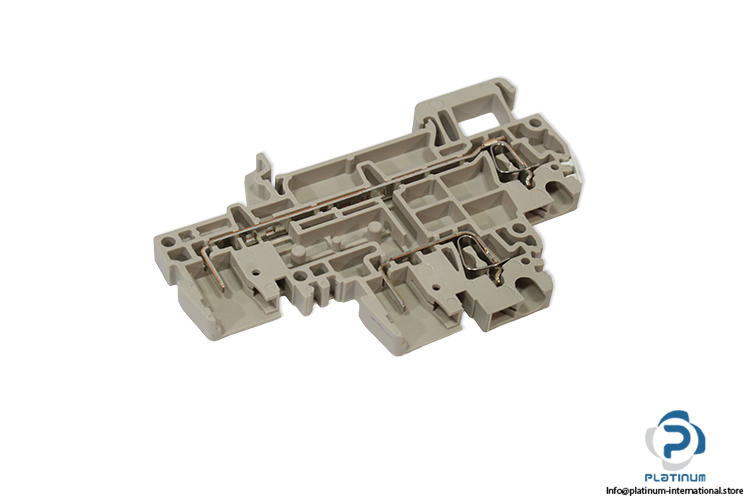

WEIDMULLER ZDT 2,5/2 Pluggable Terminal Block
The WEIDMULLER ZDT 2,5/2 is a compact pluggable terminal block from the Z-series, designed for secure and efficient electrical connections. It features tension-clamp technology with multiple connection points, ensuring reliable wiring performance in control panels and industrial installations.
Manufacturer: WEIDMULLER
Type: Pluggable Terminal Block
Model: ZDT 2,5/2
Item No.: 1815150000
Series: Z-Series
Dimensions:
| Version | 2 Tension-Clamp Connections “ 2 Plug-In Connections |
| Connection Type | Pluggable |
| Type Of Mounting | Snap-On |
| Number Of Potentials | 2 |
| Number Of Levels | 2 |
| Number Of Clamping Points Per Level | 4 |
| Depth | 52 mm |
| Depth Including DIN Rail | 52.5 mm |
| Height | 80.5 mm |
| Width | 5.1 mm |
| Ambient Temperature | -5 °C / 40 °C |
| Basic Material | Wemid |
| Colour | Dark Beige |
| UL 94 Flammability Rating | V-0 |
| Certification (cCSAus) | 154685-1460993 |
| Current Size C (cCSAus) | 20 A |
| Current Size D (cCSAus) | 5 A |
| Voltage Size C (cCSAus) | 300 V |
| Voltage Size D (cCSAus) | 600 V |
| Wire Cross Section Max. (cCSAusX) | 12 AWG |
| Wire Cross Section Min. (cCSAusX) | 26 AWG |
