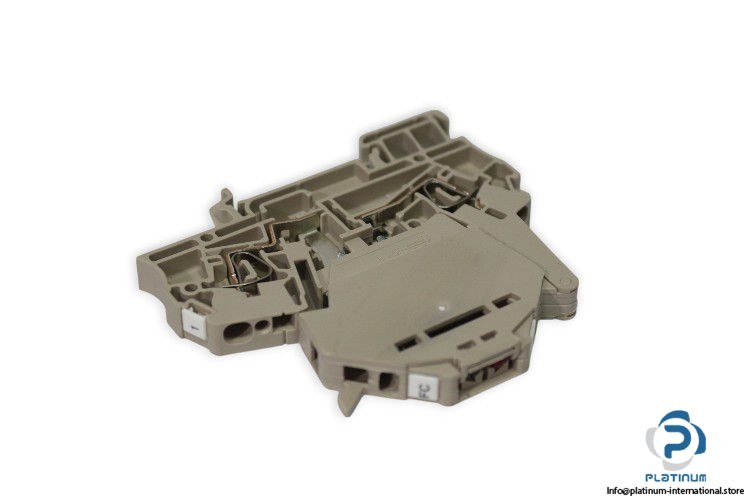

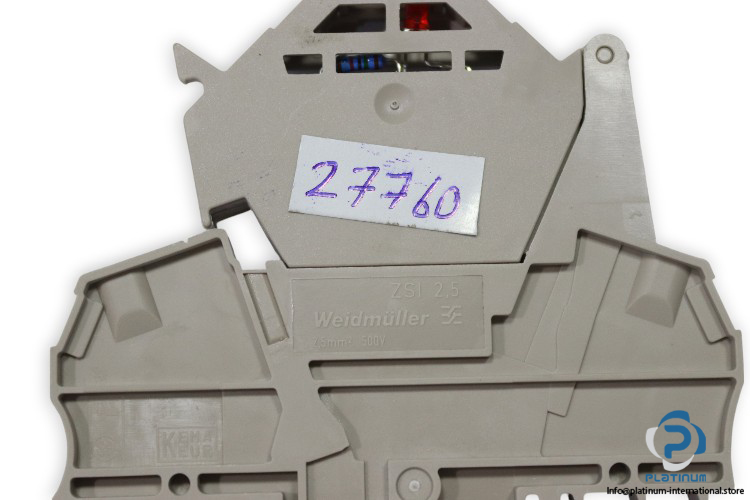

Weidmuller ZSI 2.5 Fuse Terminal Block
Neu
Auf Lager1 EinheitVersandbereit
FUSE TERMINAL BLOCK
Compact fuse terminal block with 2.5¯mm² cross-section, tension-clamp connection, and 500¯V rating. Fits 5×20¯mm cartridge fuses for DIN rail power distribution and protection.2.5500V5X20BlockCarrClampcomasCompactconnectionDINElectricalFuseHighHousingIndustrialmmmm2ModelProtectionrailTemperatureTensionterminalWeidmullerWemidZSI2.5
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
WEIDMULLER ZSI2.5 FUSE TERMINAL BLOCK
High-performance fuse terminal block designed for compact circuit protection and reliable wire termination in control panels and automation systems. Built with Weidmuller's robust WEMID housing and tension-clamp technology, ensuring safety and long-term operation under extreme conditions.
Manufacturer: Weidmuller / Kema Keur
Type: Fuse Terminal Block
Model: ZSI2.5
| Rated Cross‘Section | 2.5¯mm² |
| Rated Voltage | 500¯V |
| Rated Current | 6.3¯A |
| Connection | Tension‘clamp |
| Fuse Format | 5x20¯mm cartridge |
| Color | Dark Beige |
| Operating Temperature | -50¯°C to +120¯°C |
| Mounting | Snap-on TS¯35 DIN rail |
| Housing Material | WEMID (UL94 V-0), stainless steel clamp |
| Wire Range | 0.13“4¯mm² / AWG¯26“12 |
| Dimensions | 7.9¯x¯79.5¯x¯73¯mm |
