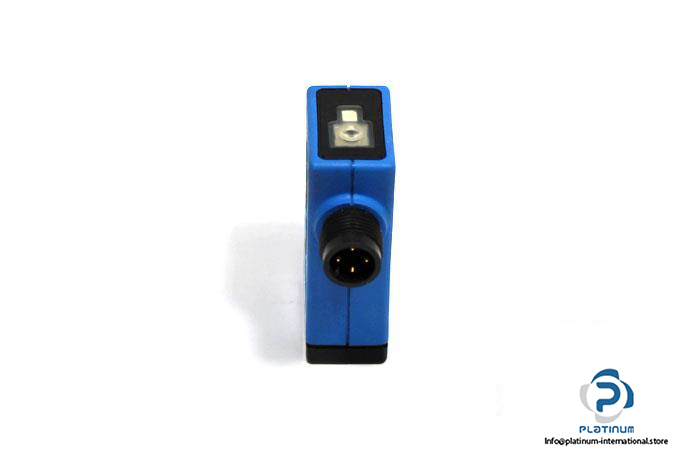

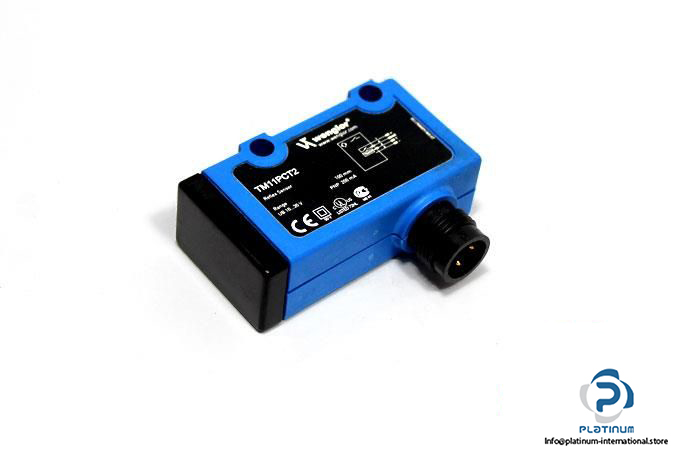

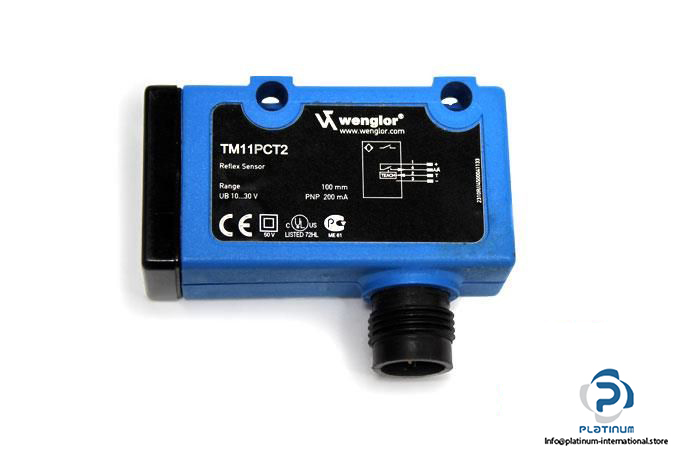

Wenglor TM11PCT2 Photoelectric Reflex Sensor

Manufacturer: WENGLOR

Type: PHOTOELECTRIC REFLEX SENSOR

Product Nr.: TM11PCT2

This sensor has both a transmitter and receiver located in its housing.

Sensing range: 100 mm

Response time: 250 µs

On/off delay: 0…5 s

Operating Voltage: 10 … 30 V DC

Current consumption: mA

Switching frequency: 2 kHz

Output Current: 200 mA

Electrical design: PNP

Switching output: Normally open / normally closed

Light source: Light source

Wave length: 850 nm

Adjustment: Teach-In button

Connector type: M12 Connector, 4-pin

Protection class: III

Enclosure rating: IP67

Ambient Operating temperature: -25 … 60°C

Dimensions: 21 x 16 x 50 mm

Housing: Rectangular

Housing material: Plastic

Condition: Used
