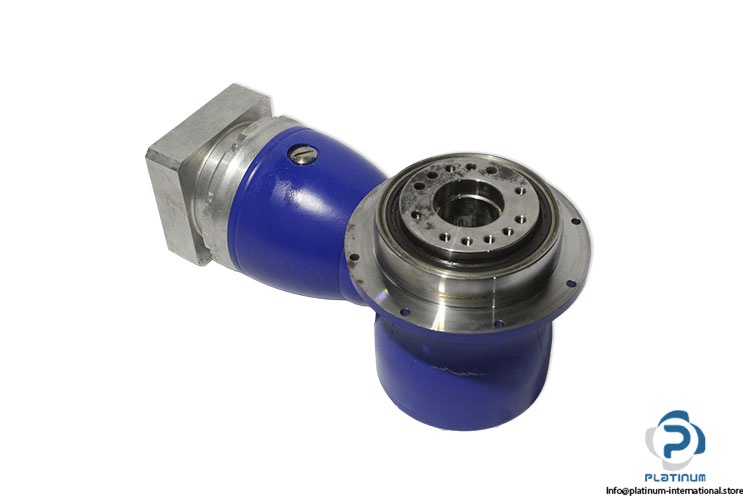

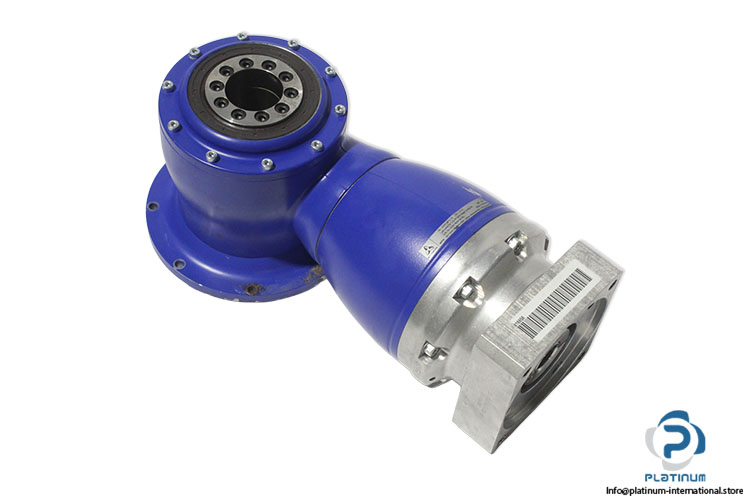

Wittenstein Alpha TK+ 025S-MF2-35-5E1-1S10 Hypoid Gearbox
Gebraucht
Auf Lager1 EinheitVersandbereit
888,88$
WITTENSTEIN ALPHA TK+ Low-Backlash Hypoid Gearbox The WITTENSTEIN ALPHA TK+ 025S-MF2-35-5E1-1S10 is a precision low-backlash hypoid gearbox designed for servo drive systems, automation machinery, robotics, and high-performance motion control applications. Featuring exceptional torsional rigidity, high torque capacity, and ultra-low backlash for accurate positioning.
Ratio:
35
Number Of Stage:
2
Max. Backlash:
4 Arcmin
Max. Torque:
20 – 768 Nm
Max. Input Speed:
7500 rpm
Torsional Rigidity:
99 Nm/Arcmin
Flange Diameter:
100 mm
AlphaAutomationBacklashCNCControlGearboxHypoidIndustriallowMotionPlanetaryPowerPrecisionRoboticsServoTransmissionWittenstein
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

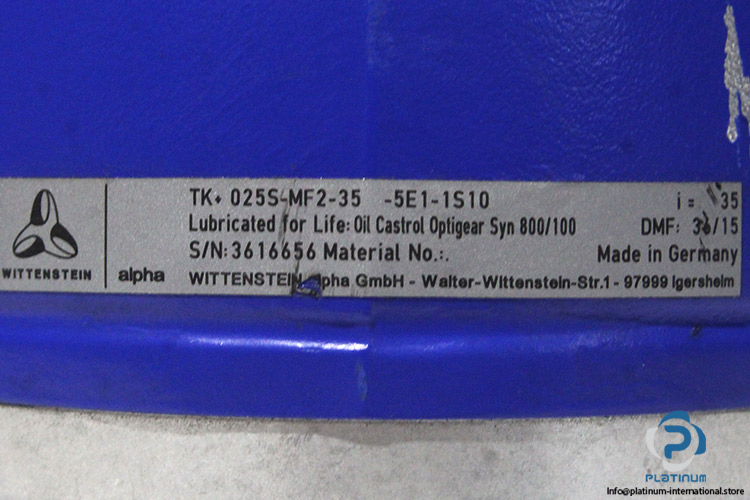

| S/N | 3616656 |
| Series | TK+ |
| Ratio [i] | 35 |
| Number of Stage | 2 |
| Shaft [mm] | 40-80 |
| Hollow Shaft [mm] | 19 |
| Flange Diameter [mm] | 100 |
| Max. backlash | 4 arcmin |
| Max. torque | 20 – 768 Nm |
| Max. input speed | 7500 rpm |
| Torsional rigidity | 99 Nm/arcmin |
| Max. tilting moment | 2313 Nm |
| Lubricated type | Oil Castrol Optigear Syn 800/100 |
| Stock Key | JO-004 |
| Condition | Used |
| SKU | 1099029 |
| Weight | 10,55 |
