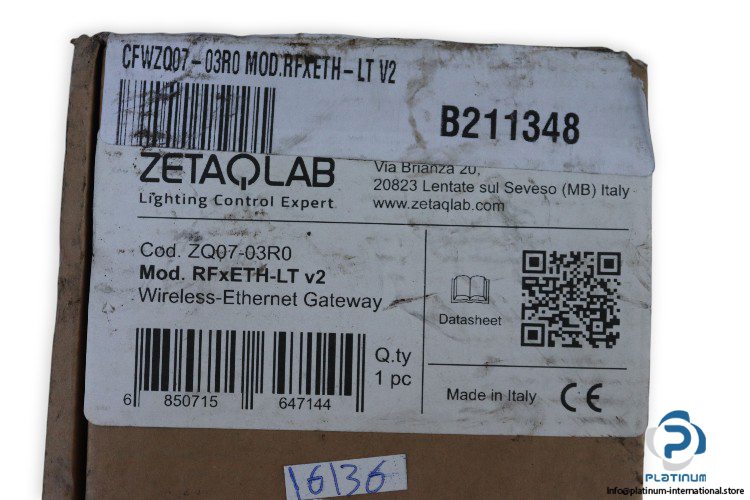

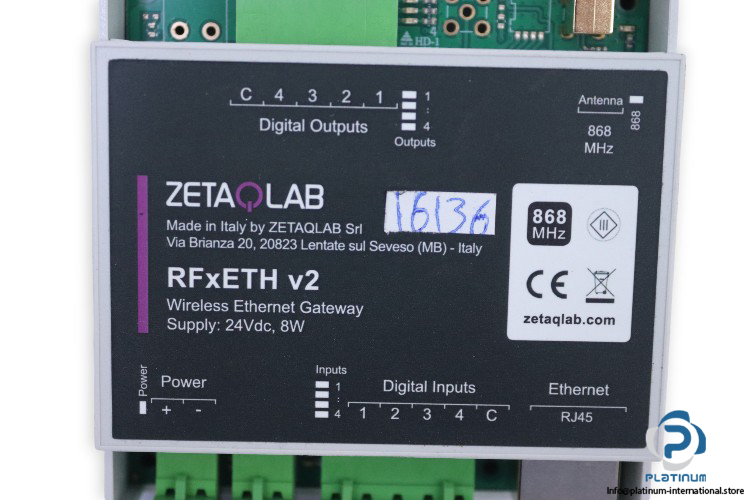

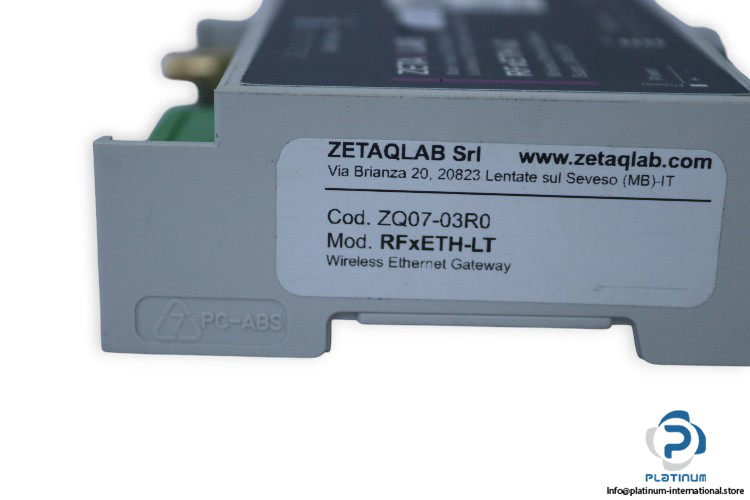

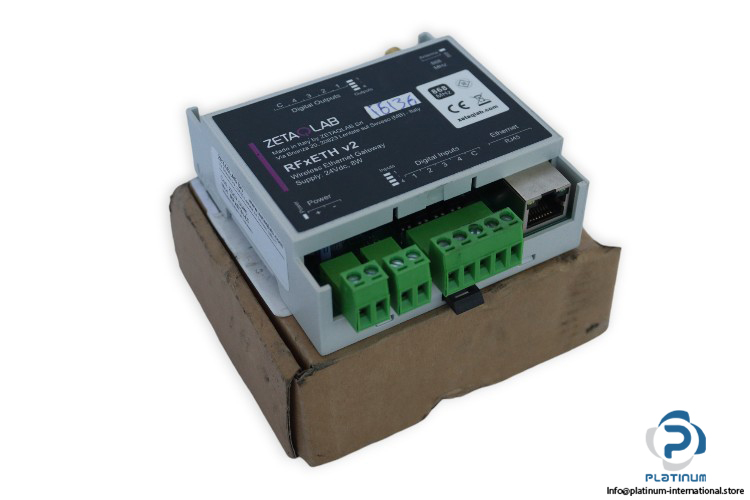

Zetaqlab Rfxeth-LT V2 Wireless Ethernet Gateway
Hersteller: ZETAQLAB Typ: Drahtloses Ethernet-Gateway Modell: RFxETH-LT V2 Code: ZQ07-03R0
Manufacturer: ZETAQLAB
Type: Wireless Ethernet Gateway
Model: RFxETH-LT V2
Code: ZQ07-03R0
Input power: 24 Vdc – 8W
Radio frequency: 868 MHz
868 MHz radio output power :
RFxETH: +13 dBm
RFxETH-LT: +16 dBm
868 MHz wireless transmission range: 300 m (RFxETH) or 500 m (RFxETH-LT) line-of-sight
Antenna: 1 x SMA female for external antenna (868MHz)
Ethernet: 1 x Ethernet 10/100 BaseT, Default IP: 192.168.100.110, RJ45 plug Protocols: TCP/IP (TCP, UDP), HTTP, Modbus TCP
Digital Inputs: 4 x Digital Inputs
Digital Outputs: 4 x Digital optoisolated Outputs (max 0,5A @ 125VAC, 1A @ 30VDC)
Connector block:
Screw terminals, wire cross section 0,5-2,5 mm2 (max AWG13). Ethernet: 1 x RJ45. SMA female connector for external antenna
Ambient temperature: -10°C to +65°C
Housing: Plastic DIN rail 5M, IP20
Dimensions: 88 x 90 x32 mm
