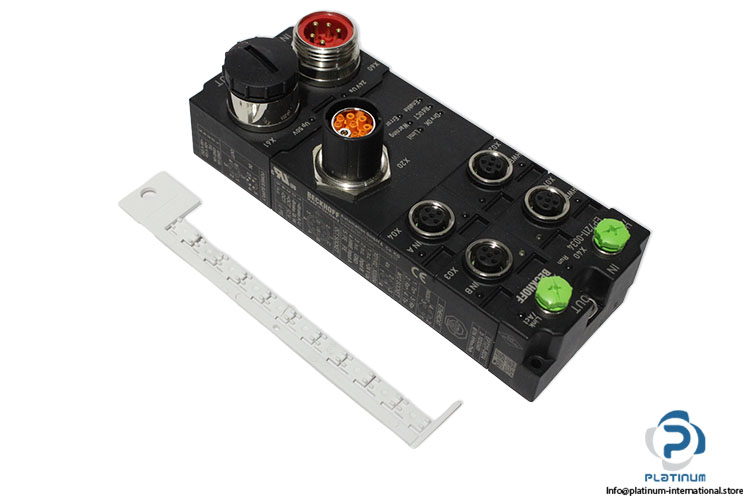

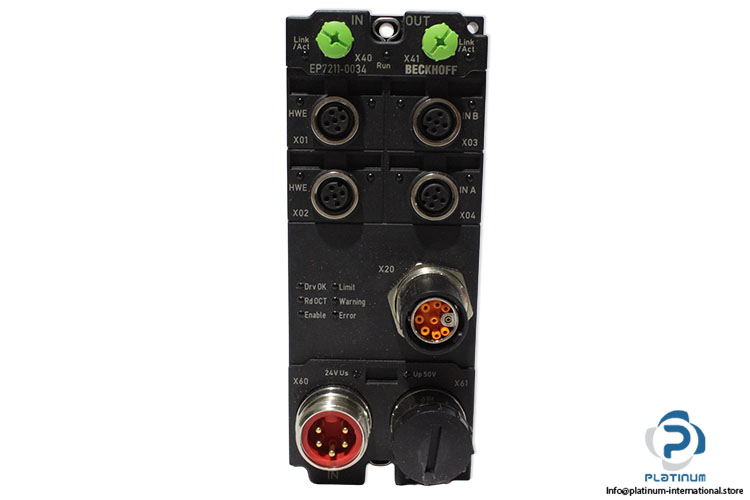

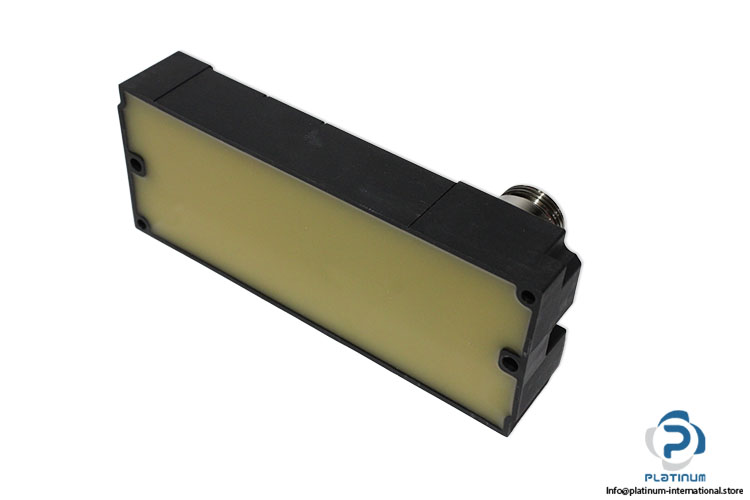

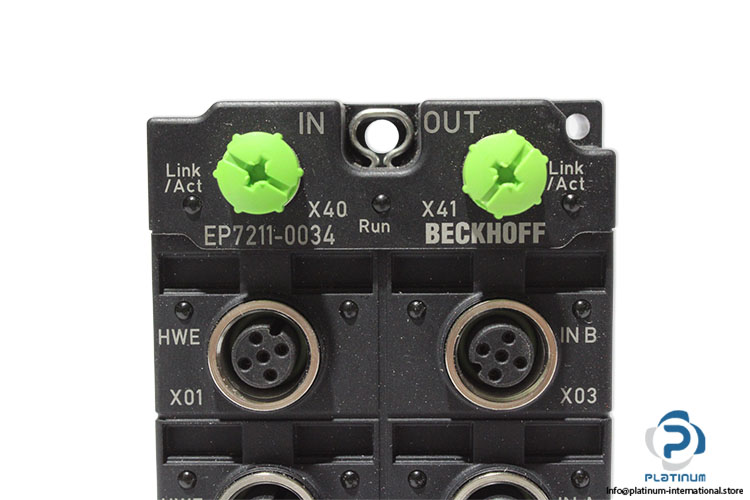

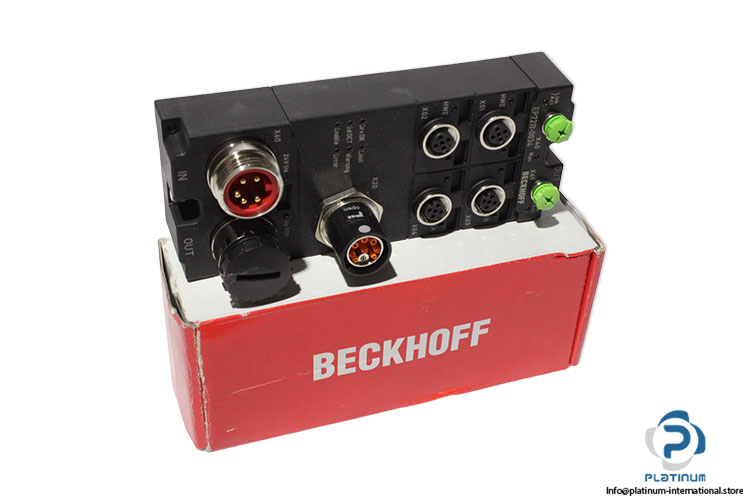

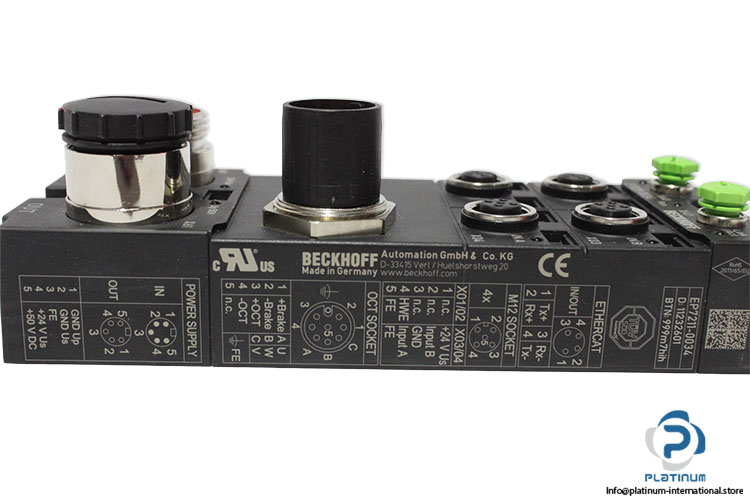

Beckhoff EP7211-0034 Ethercat BOX
नया
स्टॉक में उपलब्ध11 यूनिट्सभेजने के लिए तैयार
EtherCAT Box BECKHOFF EP7211-0034 EtherCAT Box with compact drive technology, direct motor connection with OCT, integrated Safe Torque Off (STO), and support for permanent magnet synchronous motors in industrial motion control applications.
विशाल भंडार
वैश्विक शिपिंग
विशेषज्ञ सहायता
गुणवत्ता की गारंटी
| Ref No | 11232601 |
| BTN | 999m7hih |
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Technology | compact drive technology |
| Number of outputs | 1 x servomotor, 1 x motor brake |
| Number of channels | 1 |
| Number of inputs | 2 x end position, 1 x feedback, 1 x HWE |
| Connection technology | direct motor connection with OCT |
| Supply voltage power | 8…48 V DC (external) |
| Distributed clocks | yes |
| Output current (rms) | 4.5 A |
| Peak current (rms) | max. 9.0 A for 1 s |
| PWM clock frequency | 16 kHz |
| Current controller frequency | 32 kHz |
| Rotating field frequency | 0…599 Hz |
| Rated speed controller frequency | 16 kHz |
| Power supply connection feed | 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin |
| Electrical isolation | 500 V |
| Current consumption from US | 120 mA |
| Output voltage motor brake | 24 V DC |
| Output current motor brake | max. 0.5 A |
| Realization STO | hard-wired via safe output |
| Safe stop functions | Safe Torque Off (STO) |
| Special features | compact and system-integrated, absolute feedback, One Cable Technology (OCT), plug and play, STO (Safe Torque Off), preset drive profile MDP 742 |
| Operating temperature | -25…+60°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL, TÜV SÜD |
| Housing data | 7/8" infeed |
| Dimensions (W x H x D) | 60 mm x 150 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1099696 |
| Weight | 0,63 |
