Hiwin WEH27CA Linear Guideway Block
नया
स्टॉक में उपलब्ध4 यूनिट्सभेजने के लिए तैयार
LINEAR GUIDEWAY BLOCK भारी-शुल्क Hiwin WEH27CA ब्लॉक स्क्वायर डिज़ाइन और टॉप माउंटिंग के साथ, WE सीरीज का हिस्सा, 27 मिमी रेल साइज़ के साथ उच्च-लोड लीनियर गति के लिए अनुकूलित और
27Blockfour-rowGuideGuidewayHeavyHiwinIndustrialLinearLoadmmMotionmountrailSeriesSquareTopTypeWEWEH27CA
विशाल भंडार
वैश्विक शिपिंग
विशेषज्ञ सहायता
गुणवत्ता की गारंटी

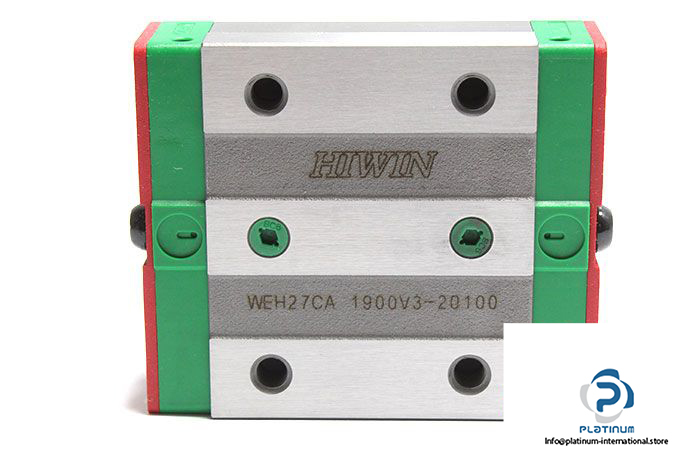

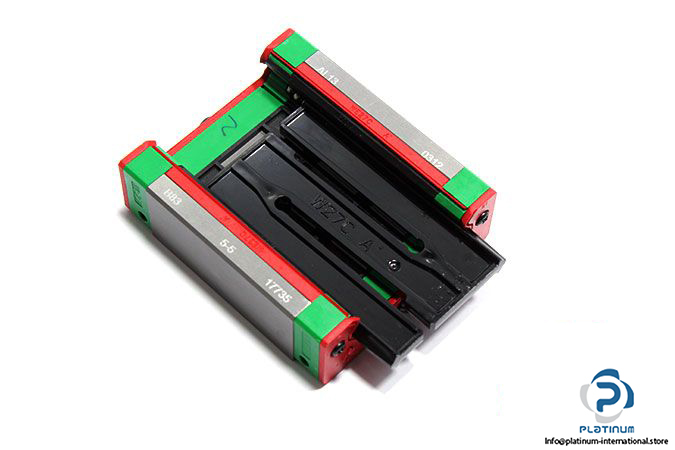

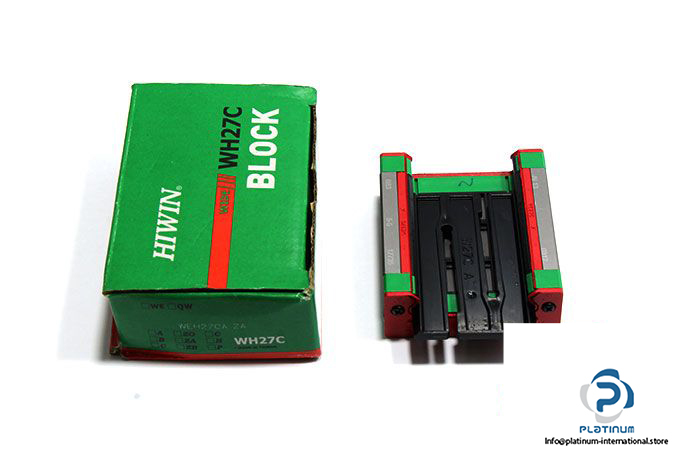

HIWIN WEH27CA LINEAR GUIDEWAY BLOCK
The Hiwin WEH27CA is a high-performance linear guideway block from the WE Series, engineered with four-row wide rail construction for heavy-load support and superior rigidity. Designed with square-type housing and top-mount configuration, this model ensures optimal load capacity and smooth linear motion for industrial-grade applications.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: WEH27CA
MRN: WEH27CA 1900V3-20100
| Size | 27 mm |
| Total Height H | 27 mm |
| Block Width W | 62 mm |
| Block Length L | 72.8 mm |
| Block Height | 23 mm |
| Distance Between Holes | 46 mm, 32 mm |
| Basic Load Rating (Dynamic Cr) | 12.4 kN |
| Basic Load Rating (Static C0r) | 21.6 kN |
| Series | WE Series; Four-Row Wide Rail Linear Guideway |
| Block Type | H; Square Type |
| Load Type | C; Heavy Load |
| Mounting | Mounting from Top |
