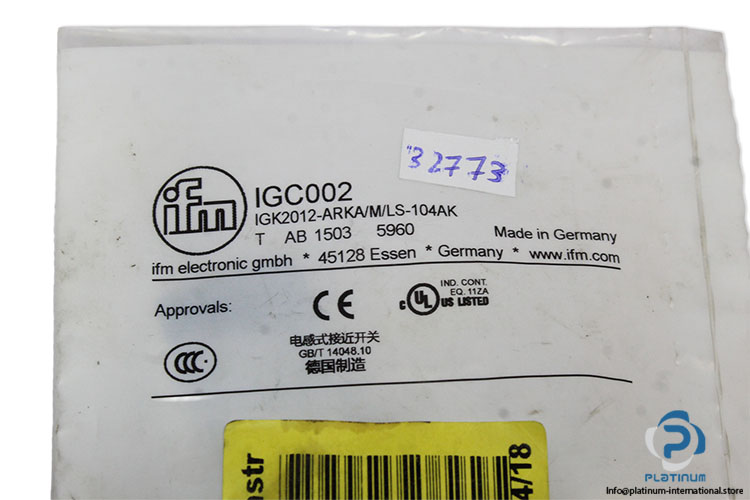

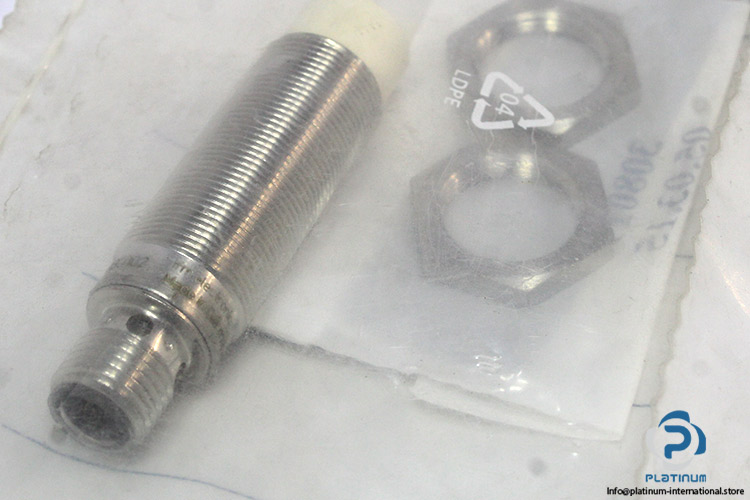

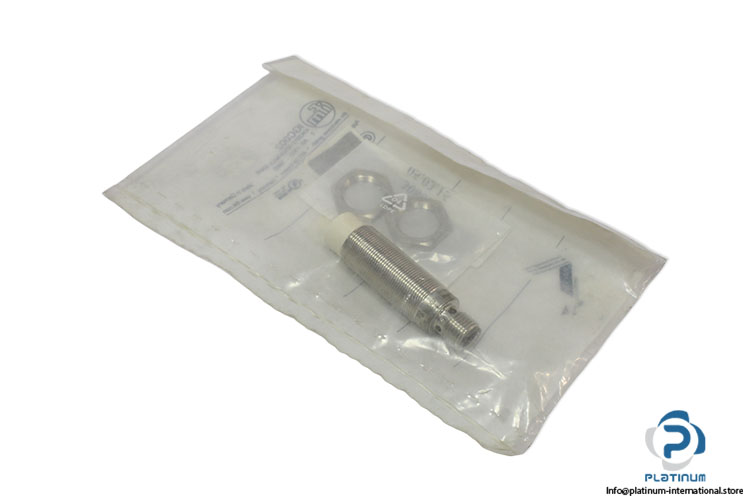

IFM IGC002 Inductive Sensor
नया
स्टॉक में उपलब्ध4 यूनिट्सभेजने के लिए तैयार
Inductive Sensor IFM inductive sensor with M18 threaded housing, increased sensing range, and IP68 protection for industrial automation and machine tool applications.
विशाल भंडार
वैश्विक शिपिंग
विशेषज्ञ सहायता
गुणवत्ता की गारंटी
| Part No. | IGC002 |
| MRN | IGK2012-ARKA/M/LS-104AK |
| Sensing Range | 12 mm |
| Housing | threaded type |
| Dimensions[mm] | M18 x 1 / L = 70 |
| Operating Distance | 0...9.7 mm |
| Operating Voltage | 20...140 AC/DC |
| Frequency | 47...63 Hz |
| Max. voltage drop switching output DC[V] | 5.5 |
| Max. voltage drop switching output AC[V] | 5.5 |
| Minimum load current[mA] | 5 |
| Max. leakage current[mA] | 1 |
| Output Function | Normally Open |
| Protection Class | II |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 copper: 0.3 |
| Enclosure Rating | IP68 |
| Special feature | Gold-plated contacts; Increased sensing range |
| Application | Industrial applications / factory automation; Use in machine tools, coolants and lubricants |
| housing Material | brass white bronze coated; sensing face: PBT uncoloured |
| Thread designation | M18 x 1 |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1099249 |
| Weight | 0,06 |
