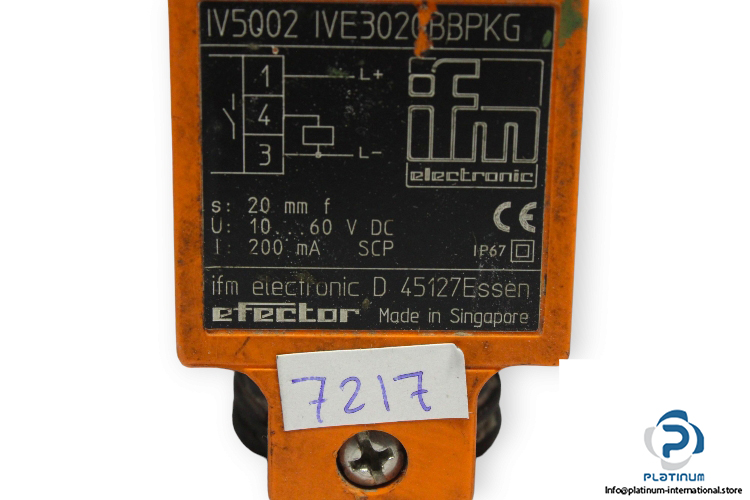

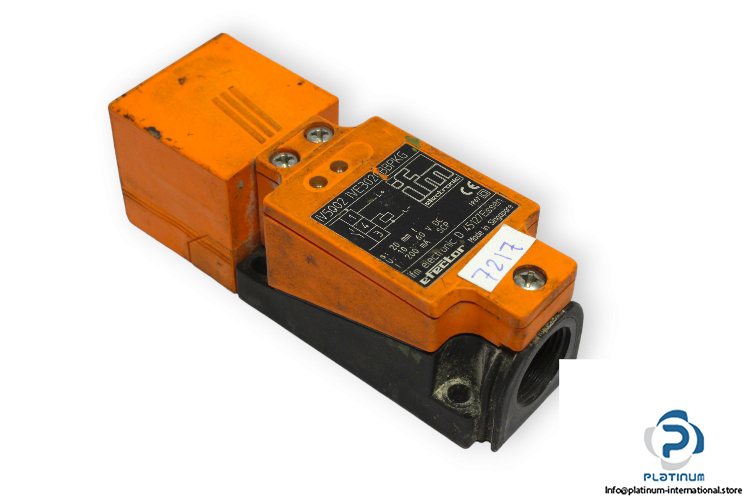

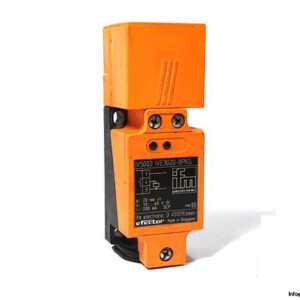

IFM IV5002 Inductive Sensor
इस्तेमाल किया हुआ
Manufacturer: IFM
Type: Inductive Sensor
Model: IV5002
MNR: IVE3020BBPKG
Sensing Range: 20 mm
Operating Distance: 0 … 16.2 mm
Operating Voltage: 10 … 60 V DC
Electrical Design: PNP
Switching Output: Normally Open
Switching output current: 200 mA
Switching Frequency DC: 150 Hz
Connector type: Cable gland: M20 X 1.5
Dimensions: 40 x 40 x 118 mm
Housing Material: PBT
Protection Class: II
Protection Class: IP67
Mounting: Flush Mountable
Operating Temperature: -25 … 70°C
