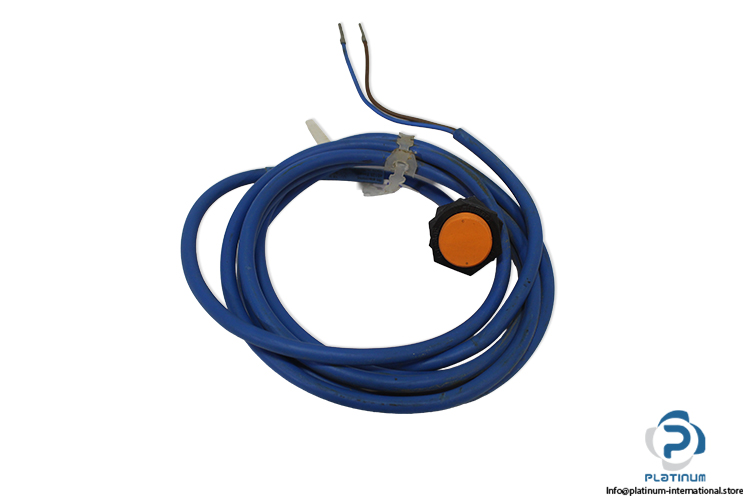

IFM NG5003 Inductive Sensor
नया
स्टॉक में उपलब्ध1 यूनिटभेजने के लिए तैयार
Inductive Sensor IFM NG5003 NAMUR inductive sensor designed for hazardous area applications with 8 mm sensing range, IP67 protection, threaded housing, and explosion-proof construction.
विशाल भंडार
वैश्विक शिपिंग
विशेषज्ञ सहायता
गुणवत्ता की गारंटी
| Part No. | IG-2008-N/1D/1G/2G |
| Electrical design | NAMUR |
| Output function | normally closed |
| Sensing range[mm] | 8 |
| Housing | threaded type |
| Dimensions[mm] | 18 x 1 / L = 33 |
| Application | For applications in hazardous areas |
| Switching amplifiers | connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW |
| Nominal voltage DC[V] | 8.2; (1kO) |
| Supply voltage DC[V] | 7.5...30; (when used outside the hazardous area) |
| Current consumption[mA] | < 1; (disabled; conductive: > 2,1) |
| Protection class | II |
| Permanent current rating of switching output DC[mA] | 30; (when used outside the hazardous area) |
| Switching frequency DC[Hz] | 300 |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
| Ambient temperature[°C] | -20...80 |
| Protection | IP 67 |
| Mounting | non-flush mountable |
| Materials | housing: PBT |
| Connector | Cable,2-wires |
| Explosion proof | EX |
| Condition | New |
| SKU | 1099111 |
| Weight | 0,1 |
